(4) Release the Registration front/rear sensor harness and the LVPS harness from the securing
fixtures.

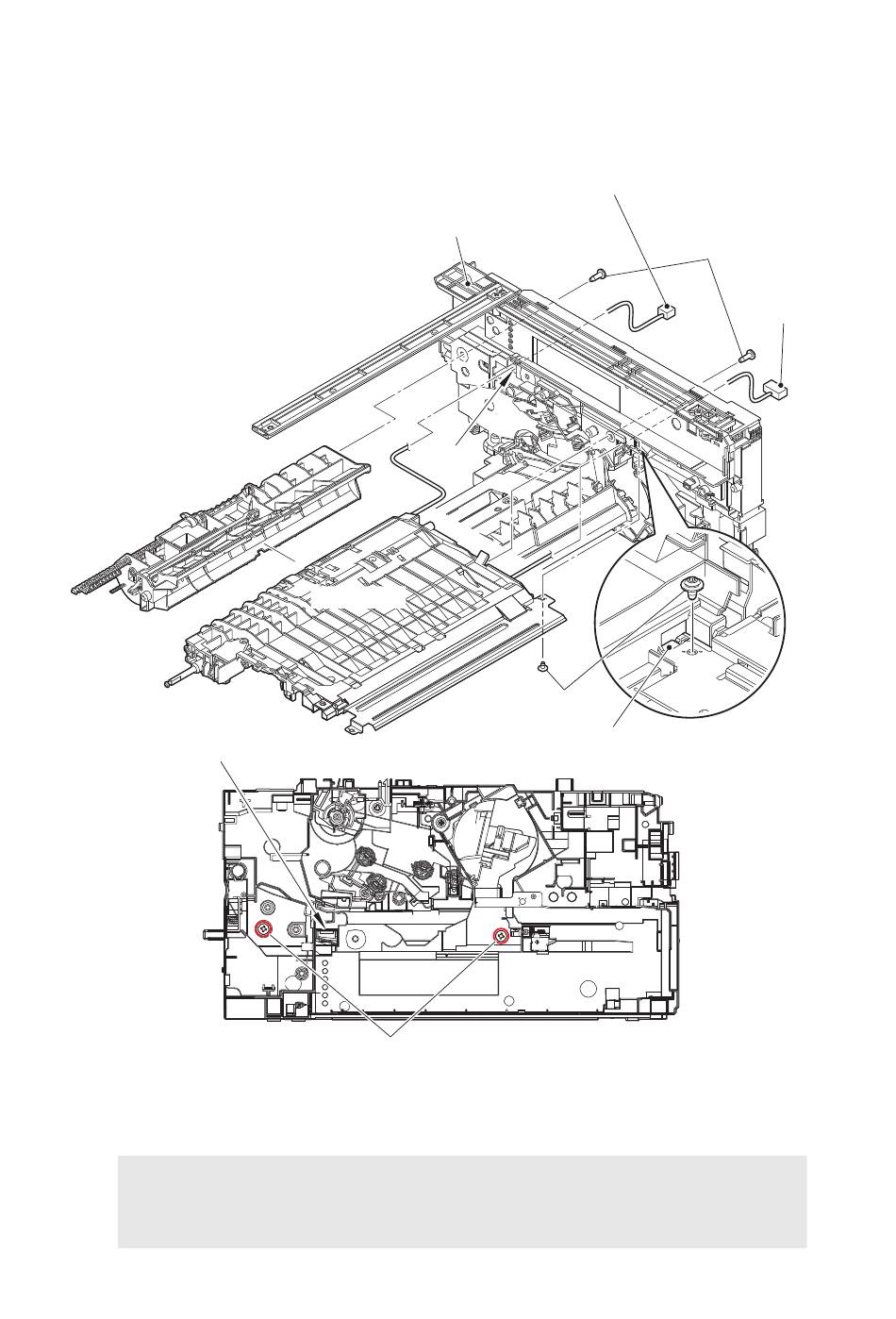

(5) Remove the Taptite cup S M3x6 SR screw and the two Taptite bind B M4x12 screws to
remove the Frame R unit. Pull out the Registration front/rear sensor harness from the Hole.
Hole
Harness routing: Refer to
Assembling Note:
• When attaching the Frame R unit, check that the LVPS FG plate is set to the Frame R
unit.
Registration front/rear sensor harness
Frame R unit
<Front side>
Hole
<Bottom side>
Taptite bind B M4x12
Fig. 3-101
"12. Top side of the registration
3-101
Taptite cup S M3x6 SR
LVPS FG plate
chute", "13. Frame R
Taptite bind B M4x12
LVPS
harness
<Overhead view
of Frame R>
unit".
