Nomadio Sensor User Manual page 53

Trim and EPA Interaction
A trim (or sub-trim) setting of 100 is equiv alent to an End Point setting of 20.
High End Point

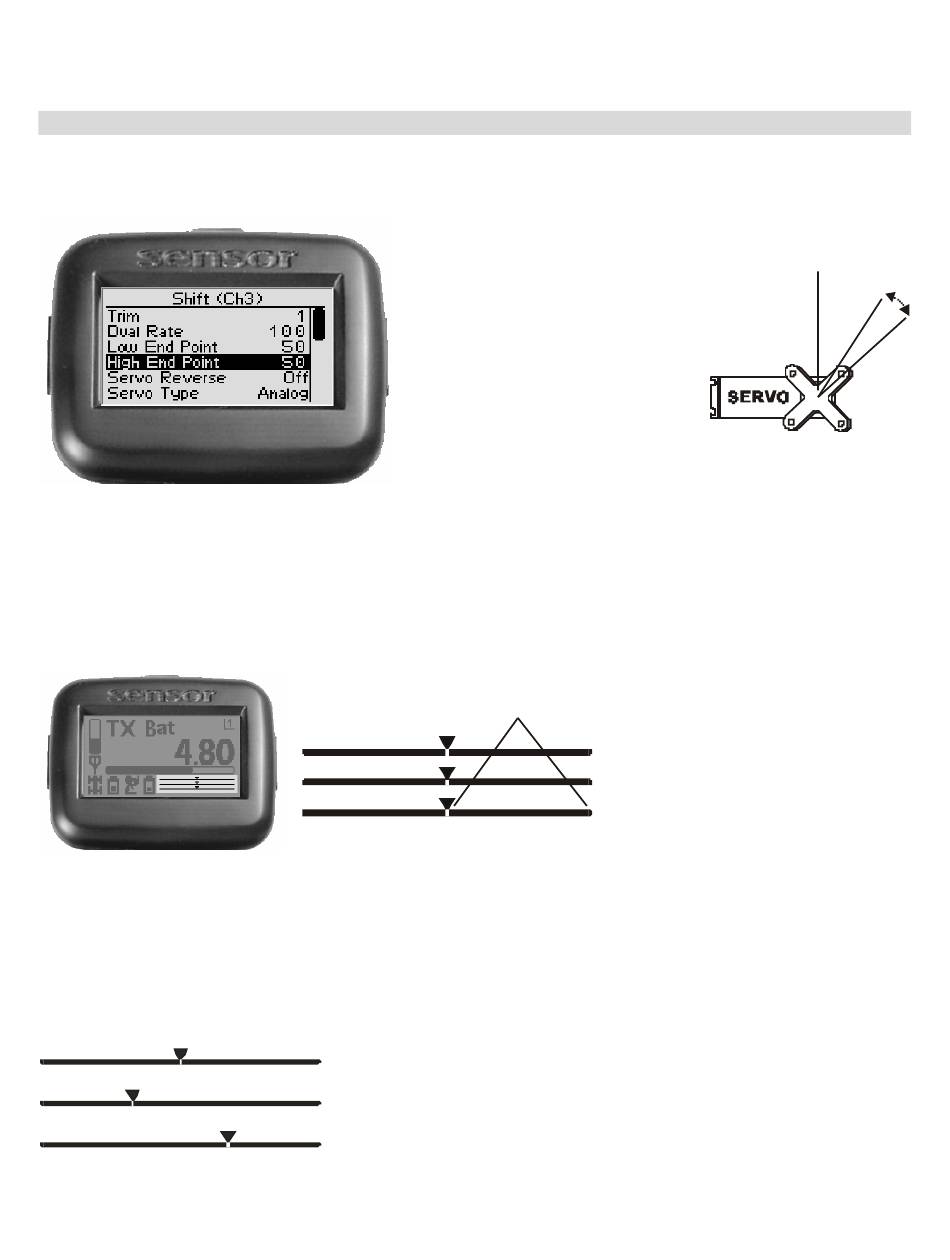

Changing the high end point value has the following visual effect on the driving screen bars.
The shift servo high end point
value adjusts the shift servo's
ending position after shifting
upwards. This is intended to
be high gear and goes with
the upshift sound event. The
end point adjustments should
be adjusted prior to other
settings.
The high end point is set
independently of the low end
point (which adjusts how far
the shift servo moves to the
LOW turns end).
High End Point
High end point v alue is approximately the same as the low end point
v alue.
Increased high end point v alue (more servo trav el on HIGH end is
possible).
Decreased high end point v alue (less serv o trav el on HIGH end is
possible).
50
On the driv ing screen,
the high end point is
represented by the
length of the bar to the
right of the pointer on
the upper bar.
The greater the right
length of the bar, the
Steering (Ch1)
greater the high end
point v alue.
Throttle (Ch2)
Shift (Ch3)
The position of the
pointer on the bar is
affected by end point
settings (low and
high) and trim
setting.
