Shift Servo Functions

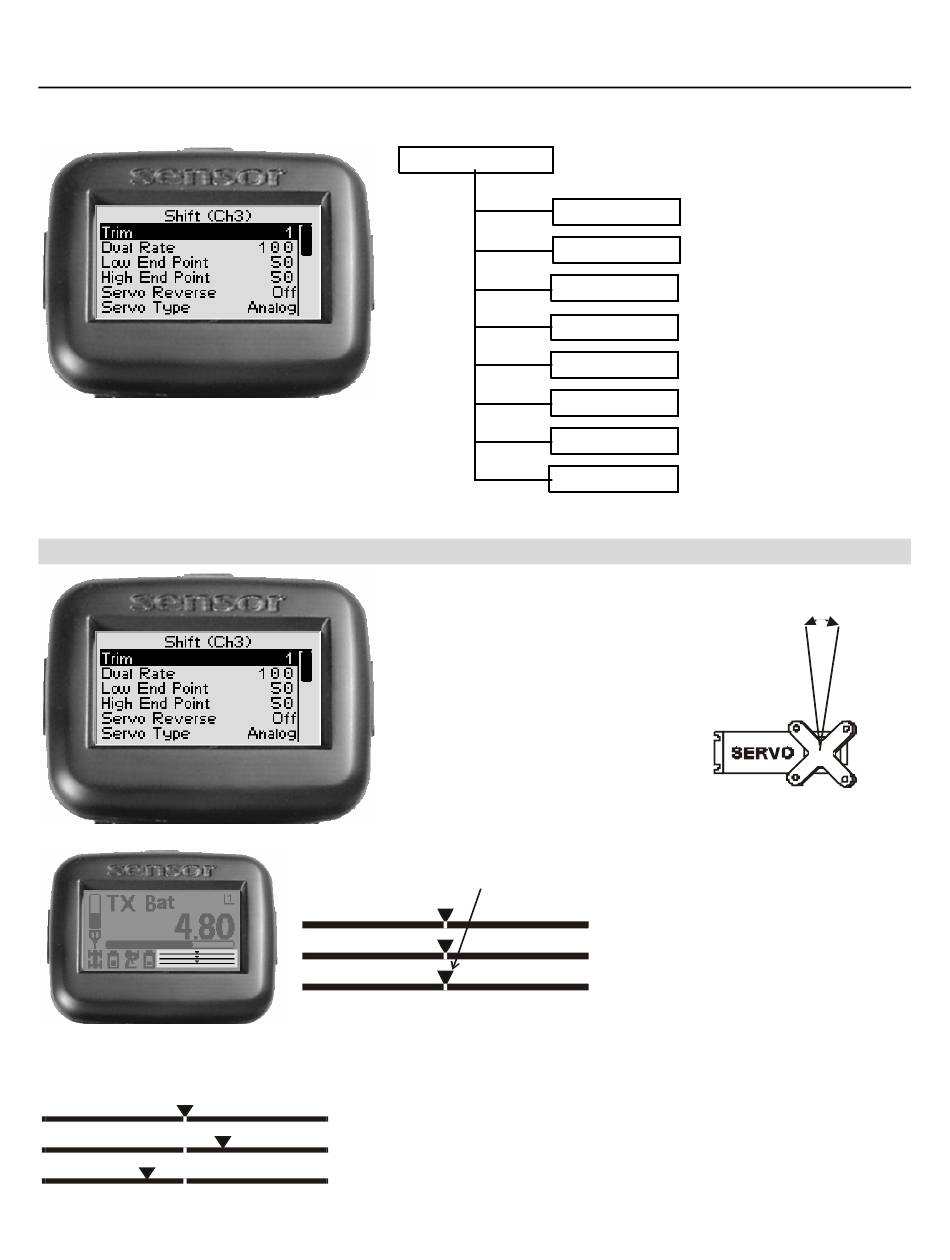

The following illustration shows the function menu structure for the shift servo functions:
Shift Servo Trim
Changing the shift servo trim has the following visual effect on the driving screen bars:
Shift ( Ch 3 )
Shift servo trim adjusts the
resting (centered) position of
the shift servo.
When initially setting up the
vehicle, the shift servo trim
setting should be set to 0. On
the shift servo, the servo horn
should be positioned as
appropriate on the servo.
Shift Servo Trim
Shift serv o trim is centered in range (v alue = 0)
Shift serv o trim is offset to high end (+v e v alue)
Shift serv o trim is offset to low end (-v e v alue)
46
Trim - 100 to 100
Dual Rate 0 - 100
Low End Point - 100 to 0
High End Point 0 to 100
Servo Reverse Off , On
Servo Type Analog , Digital
Mode Off , Toggle , Hold , 4 WS
Ch3 Speed Thr/Brake Speed,Trigger
On the driv ing screen,
shift serv o trim is
Steering (Ch1)
represented by the
position of the pointer
Throttle (Ch2)
on the bottom bar.
Shift (Ch3)
