Nomadio Sensor User Manual page 39

Throttle Sub-Trim
If you find that you have to use a large amount of throttle sub-trim to adjust the
throttle position, you should consider resetting the steering sub-trim to 0 and re-
adjusting the servo horn on the servo output shaft.

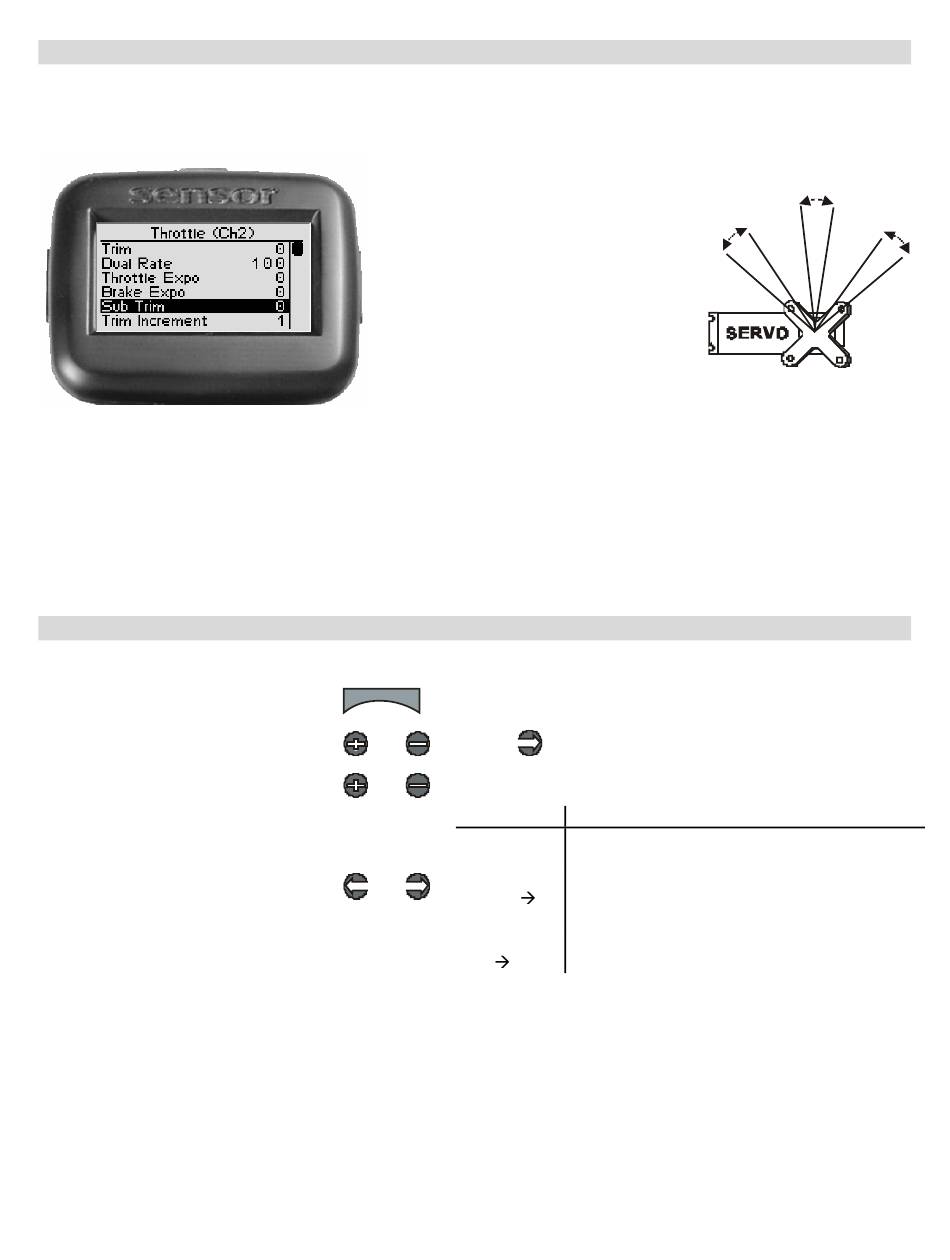

Adjusting Throttle Sub-trim
Use the navigation controls to adjust throttle sub-trim as follows:
1. A ccess the top function menu
from the driv ing screen.
2. Nav igate to the Throttle (Ch2)
menu.
3. Nav igate to Sub Trim.
4. Change the v alue.
Trim and EPA Interaction
A trim (or sub-trim) setting of 100 is equiv alent to an End Point setting of 20.
Throttle sub-trim adjusts the
center point of the throttle servo.
This differs from throttle trim in
that throttle sub-trim adjusts the
servo's entire travel range; by
moving the center point of the
servo, the throttle and brake end
points (throttle, brake) stay the
same relative "distance" from the
servo center.
Throttle sub-trim should be
initially adjusted before using
throttle trim, which is used to
make fine adjustments to center
the throttle within the total
steering range.
menu
or : then
or
Value
0
-v e v alue
or
(-100
1)
+v e v alue
(1 100)
36
Description
Throttle sub-trim is centered within the
serv o range.
Throttle sub-trim is to the BRA KE end.
-
Throttle sub-trim is to the THROTTLE end.
