Steering Left End Point
The left end point setting should be used to do the following:
• Limit steering throw to reduce mechanical binding or servo strain that may occur on full
servo throw to the left. For example, if the servo is trying to turn the steering system to
the left farther than it is mechanically ab le.
• Adjust steering throw to change steering characteristics when turning to the left.
For example, if the current amount of steering throw to the left causes oversteer or
understeer when turning to the left.

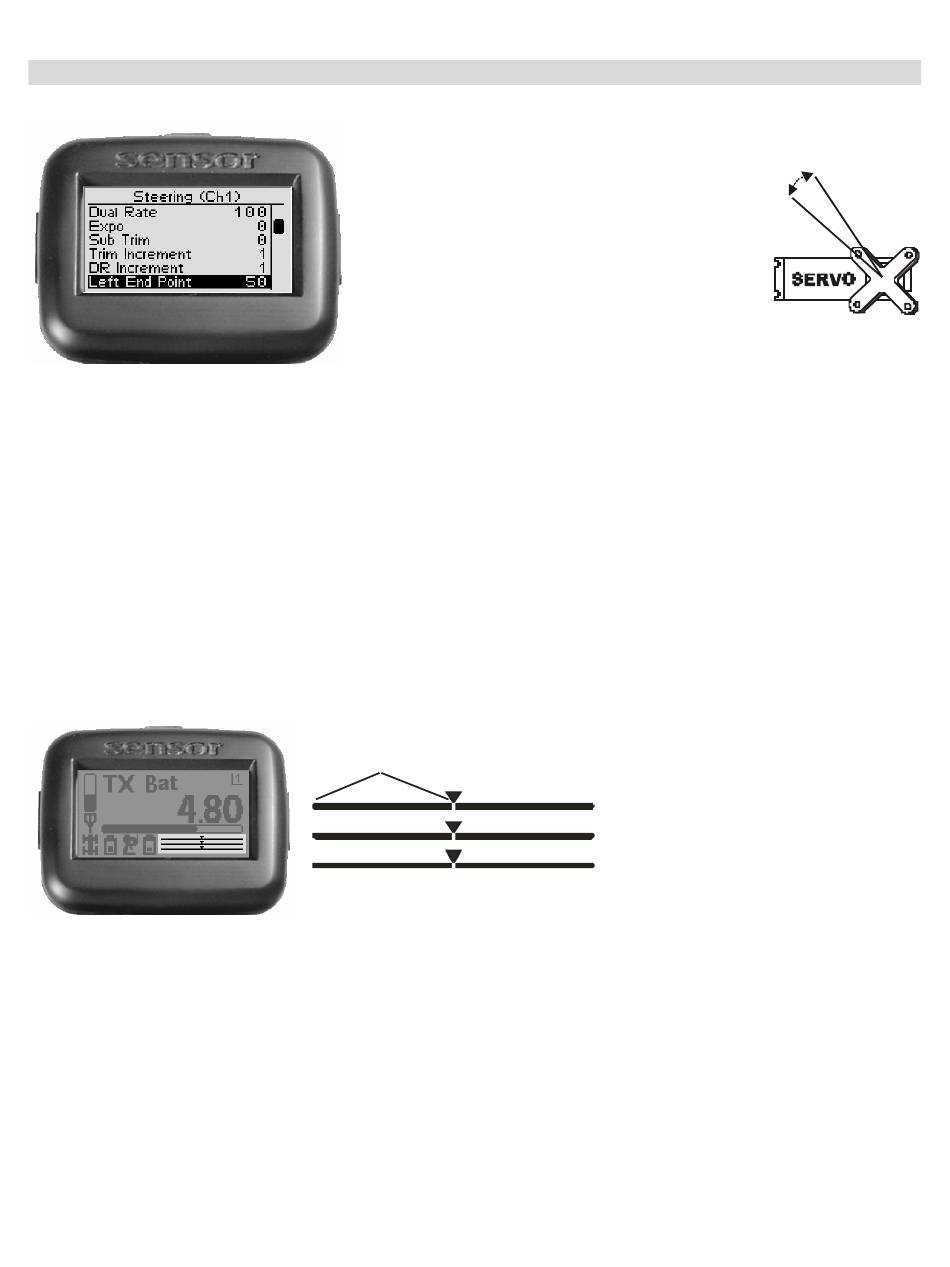

The steering left end point value adjusts
how far the steering servo turns to the
LEFT wi t h respect to its full range of
motion to the left. End point adjustment
should be adjusted prior to other steering
settings, as the left end point value
affects other steering settings.
The left end point is set independently of
the right end point (which adjusts how
far the steering servo turns to the
RIGHT).
Left End Point
24
On the driv ing screen,
the left end point is
represented by the
length of the bar to the
left of the pointer on the
upper bar.
The greater the left
length of the bar, the
Steering (Ch1)
greater the left end
Throttle (Ch2)
point v alue.
Shift (Ch3)
The position of the
pointer on the bar is
affected by the end
point settings (left
and right) and trim
settings.
