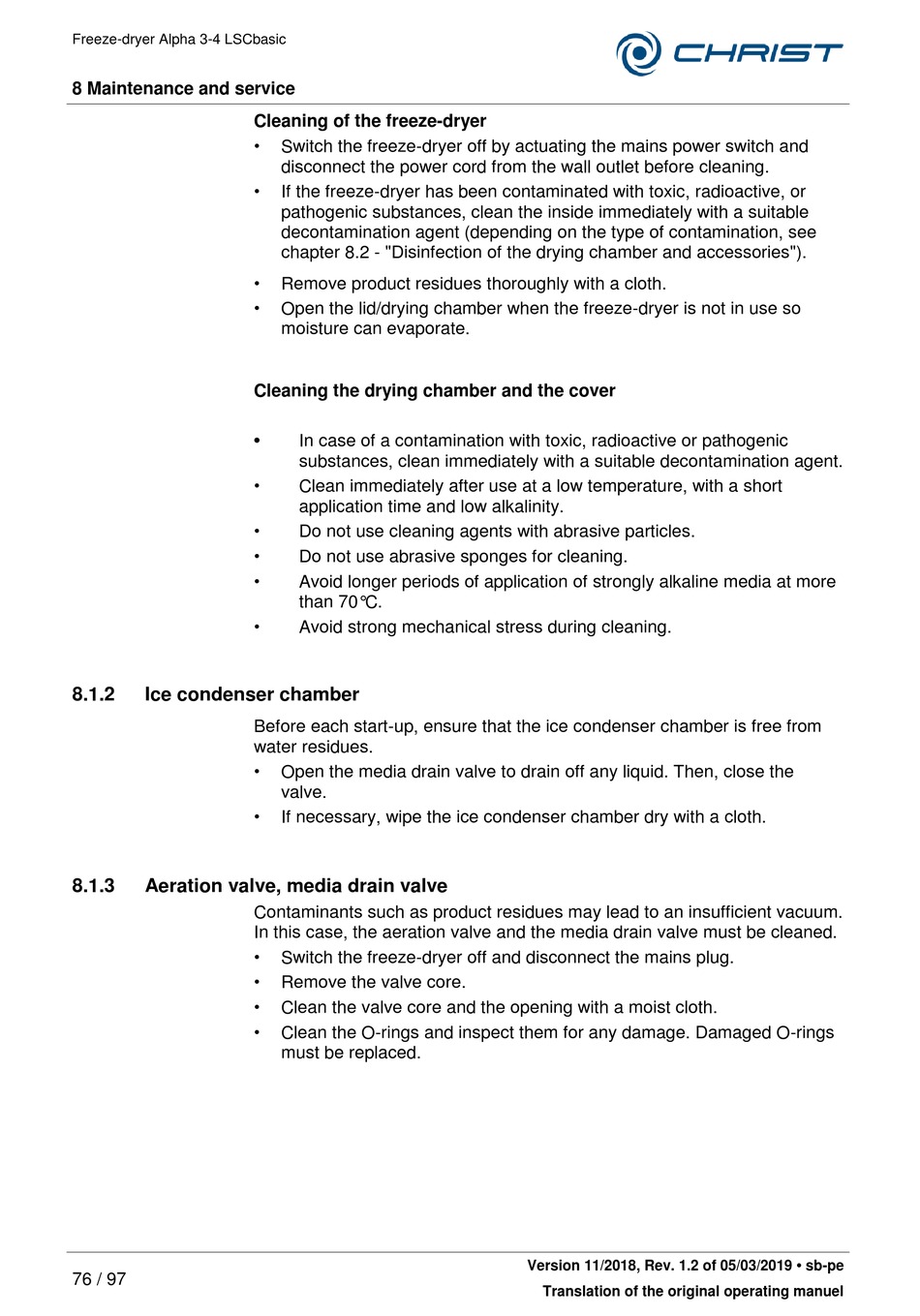

Ice Condenser Chamber; Aeration Valve, Media Drain Valve - Christ Alpha 3-4 LSCbasic Operating Manual

Freeze-dryer Alpha 3-4 LSCbasic
8 Maintenance and service

8.1.2

Ice condenser chamber


8.1.3

Aeration valve, media drain valve

76 / 97
Cleaning of the freeze-dryer
•
Switch the freeze-dryer off by actuating the mains power switch and
disconnect the power cord from the wall outlet before cleaning.
•
If the freeze-dryer has been contaminated with toxic, radioactive, or
pathogenic substances, clean the inside immediately with a suitable
decontamination agent (depending on the type of contamination, see
chapter 8.2 - "Disinfection of the drying chamber and accessories").
•
Remove product residues thoroughly with a cloth.
•
Open the lid/drying chamber when the freeze-dryer is not in use so
moisture can evaporate.
Cleaning the drying chamber and the cover
•
In case of a contamination with toxic, radioactive or pathogenic
substances, clean immediately with a suitable decontamination agent.
•
Clean immediately after use at a low temperature, with a short
application time and low alkalinity.
•
Do not use cleaning agents with abrasive particles.
•
Do not use abrasive sponges for cleaning.
•
Avoid longer periods of application of strongly alkaline media at more
than 70°C.
•
Avoid strong mechanical stress during cleaning.
Before each start-up, ensure that the ice condenser chamber is free from
water residues.
•
Open the media drain valve to drain off any liquid. Then, close the
valve.
•
If necessary, wipe the ice condenser chamber dry with a cloth.
Contaminants such as product residues may lead to an insufficient vacuum.
In this case, the aeration valve and the media drain valve must be cleaned.
•
Switch the freeze-dryer off and disconnect the mains plug.
•
Remove the valve core.
•
Clean the valve core and the opening with a moist cloth.
•
Clean the O-rings and inspect them for any damage. Damaged O-rings
must be replaced.
Version 11/2018, Rev. 1.2 of 05/03/2019 • sb-pe
Translation of the original operating manuel
