Freeze-dryer Alpha 3-4 LSCbasic
6 Operation
6.4.1.1

Main window "Process"

...
46 / 97
The user interface is divided into three main windows that can be called up
by touching the corresponding buttons:
Process
This window is also the standard user interface. It is used to control the
freeze-drying process manually.
Options
This window is used for personalised settings that enable the users to
adapt the system as far as possible to their respective area of activity.
?
In this window, the users can find all of the relevant information concerning
the control system at a glance. In the event of enquiries at the factory,
these data facilitate the assignment and expediting of the processing of the
enquiries.
This main window shows all of the relevant process data. Here, the
individual phases of a freeze-drying process can be controlled manually.

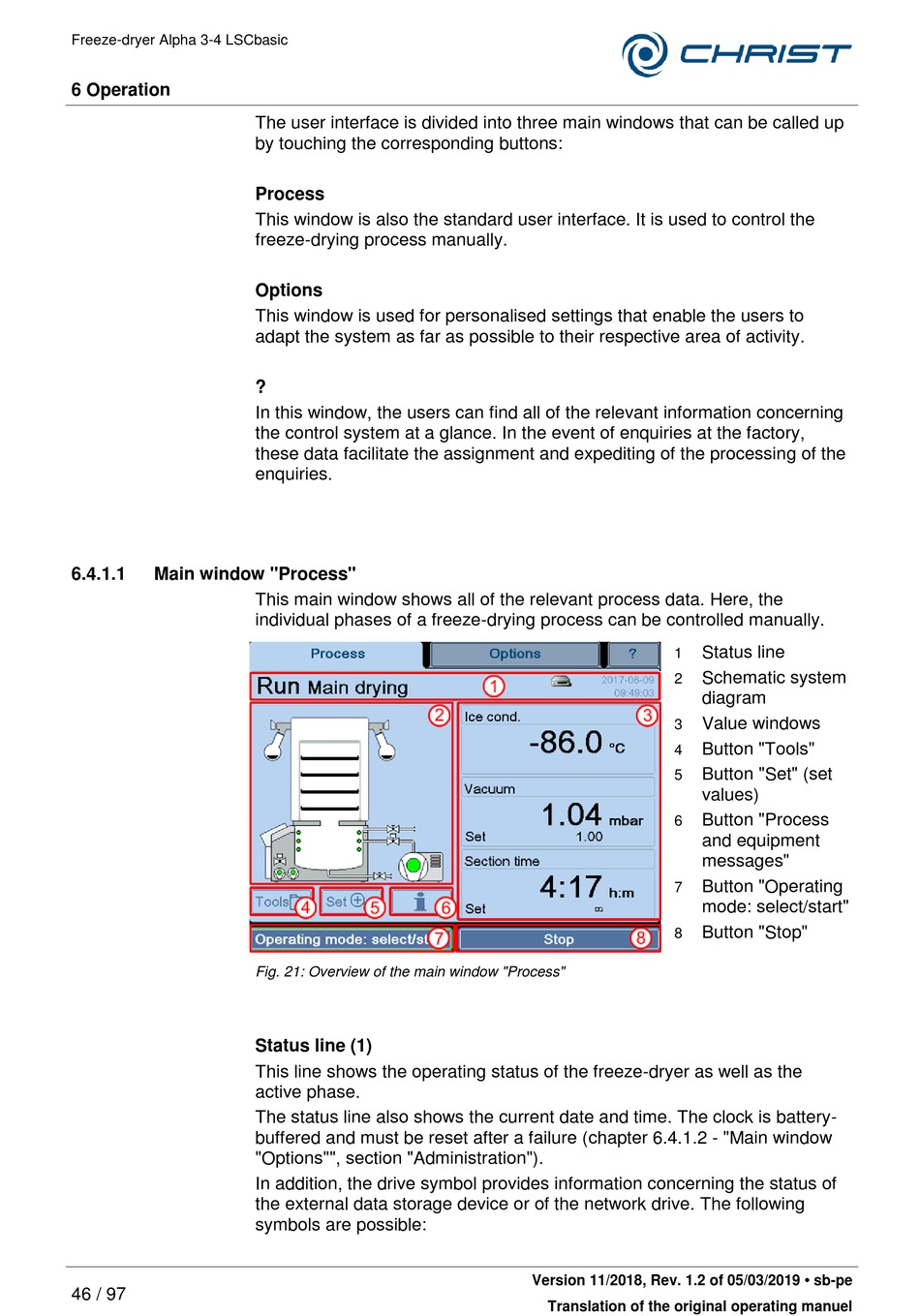

Fig. 21: Overview of the main window "Process"
Status line (1)
This line shows the operating status of the freeze-dryer as well as the
active phase.
The status line also shows the current date and time. The clock is battery-
buffered and must be reset after a failure (chapter 6.4.1.2 - "Main window
"Options"", section "Administration").
In addition, the drive symbol provides information concerning the status of
the external data storage device or of the network drive. The following
symbols are possible:
Status line
1
Schematic system
2
diagram
Value windows
3
Button "Tools"
4
Button "Set" (set
5
values)
Button "Process
6
and equipment
messages"
Button "Operating
7
mode: select/start"
Button "Stop"
8
