5.8
Installation of the accessories
1
Freeze-dryer
2
Vacuum pump
3
Reducing adapter
DN 25/ DN 16
4
Corrugated hose
(stainless steel)
5
Glass cover
6
Vacuum sensor
7
Manifold
8
Rubber valve
Version 11/2018, Rev. 1.2 of 05/03/2019 • sb-pe
Translation of the original operating manuel
The accessories of the respective packages (see chapter 1.7 - "Scope of
supply") must be installed as shown in the illustrations below:
Solvent package for round bottles (part no. 102394)

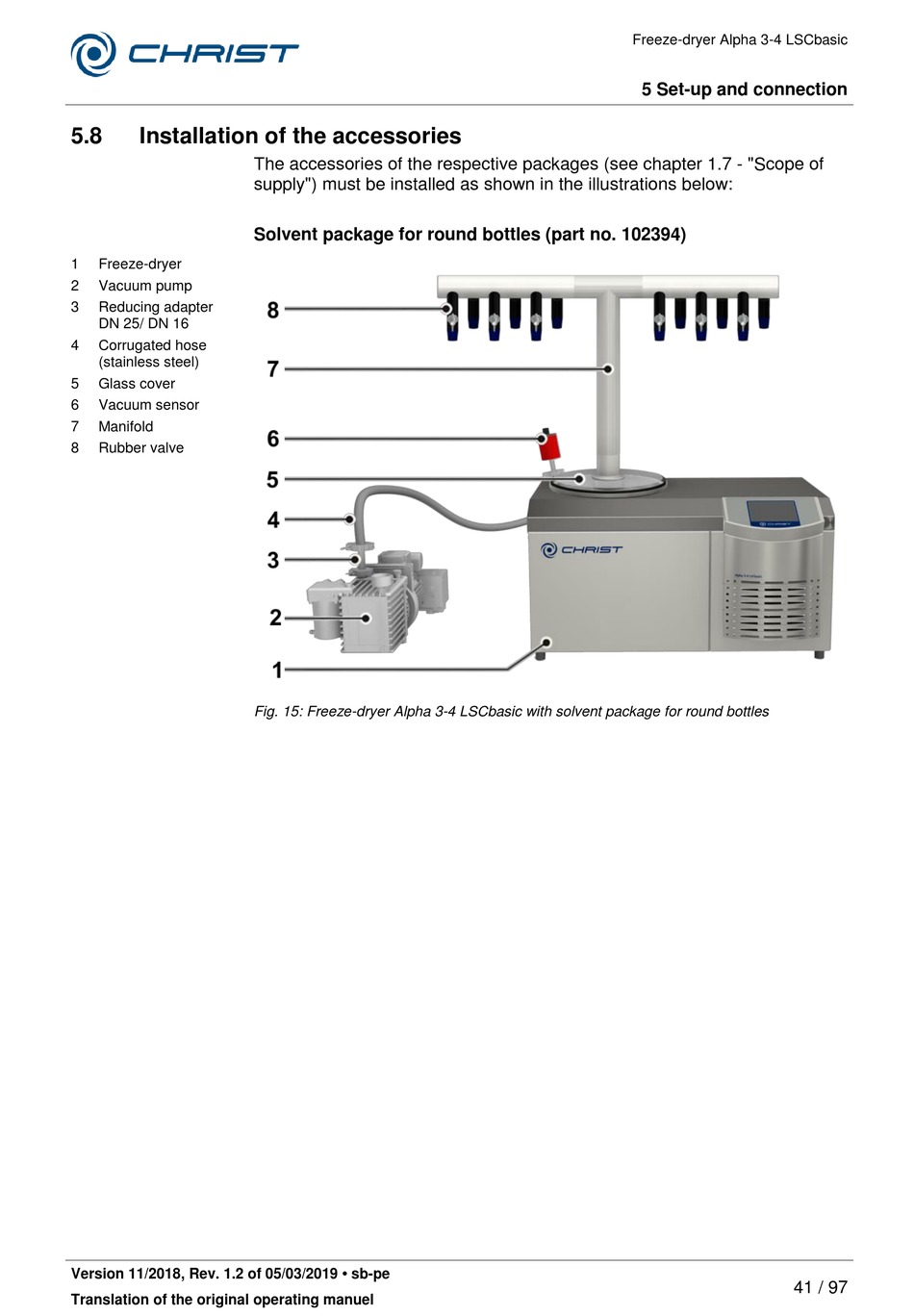

Fig. 15: Freeze-dryer Alpha 3-4 LSCbasic with solvent package for round bottles
Freeze-dryer Alpha 3-4 LSCbasic
5 Set-up and connection
41 / 97
