6.4

LSCbasic control system

6.4.1

User interface

Version 11/2018, Rev. 1.2 of 05/03/2019 • sb-pe
Translation of the original operating manuel
The control system LSCbasic (Lyo Screen Control basic) was specifically
developed for the control of freeze-drying processes. The clear user
interface enables the intuitive operation of the unit.

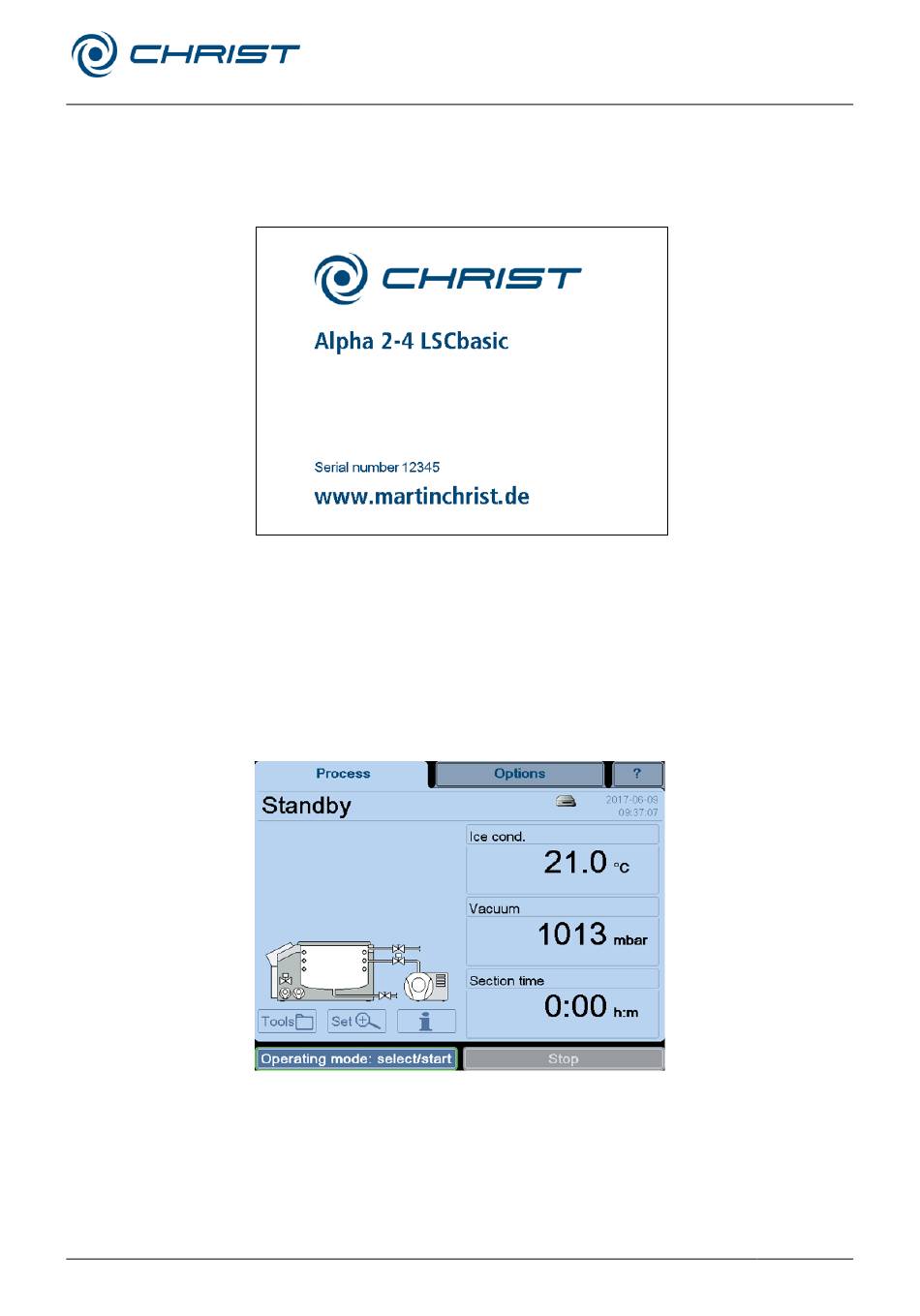

Fig. 19: Start screen of the LSCbasic control unit (example)
The system is operated via a touch panel, i.e. by touching the buttons on
the display. Every button is marked by a frame. Pressing the button
activates the associated function. Depending on the function, a dialogue
box opens, a value can be changed, or a transaction can be confirmed.
Fig. 20: User interface LSCbasic
Freeze-dryer Alpha 3-4 LSCbasic
6 Operation
45 / 97
