Freeze-dryer Alpha 3-4 LSCbasic
2 Layout and mode of operation
10 Heat exchanger of the
refrigeration unit
11 Name plate (see
chapter 2.1.2 - "Name
plate")
12 Vacuum connection
13 Serial interface
14 Electrical connection of
the vacuum sensor
15 Connection of the
vacuum sensor
16 Power supply of the
pressure control valve
17 Power supply of the
vacuum pump
18 Mains fuse
19 Mains cable
20 Equipotential bonding
screw

2.1.2

Name plate

1 Serial number
2 Type
3 Refrigerant data of
st
the 1 stage
4 Nominal voltage
5 Year of manufacture
(month/year)
6 Part number
7 Refrigerant data of
nd
the 2 stage
8 Rated current /
apparent power
14 / 97

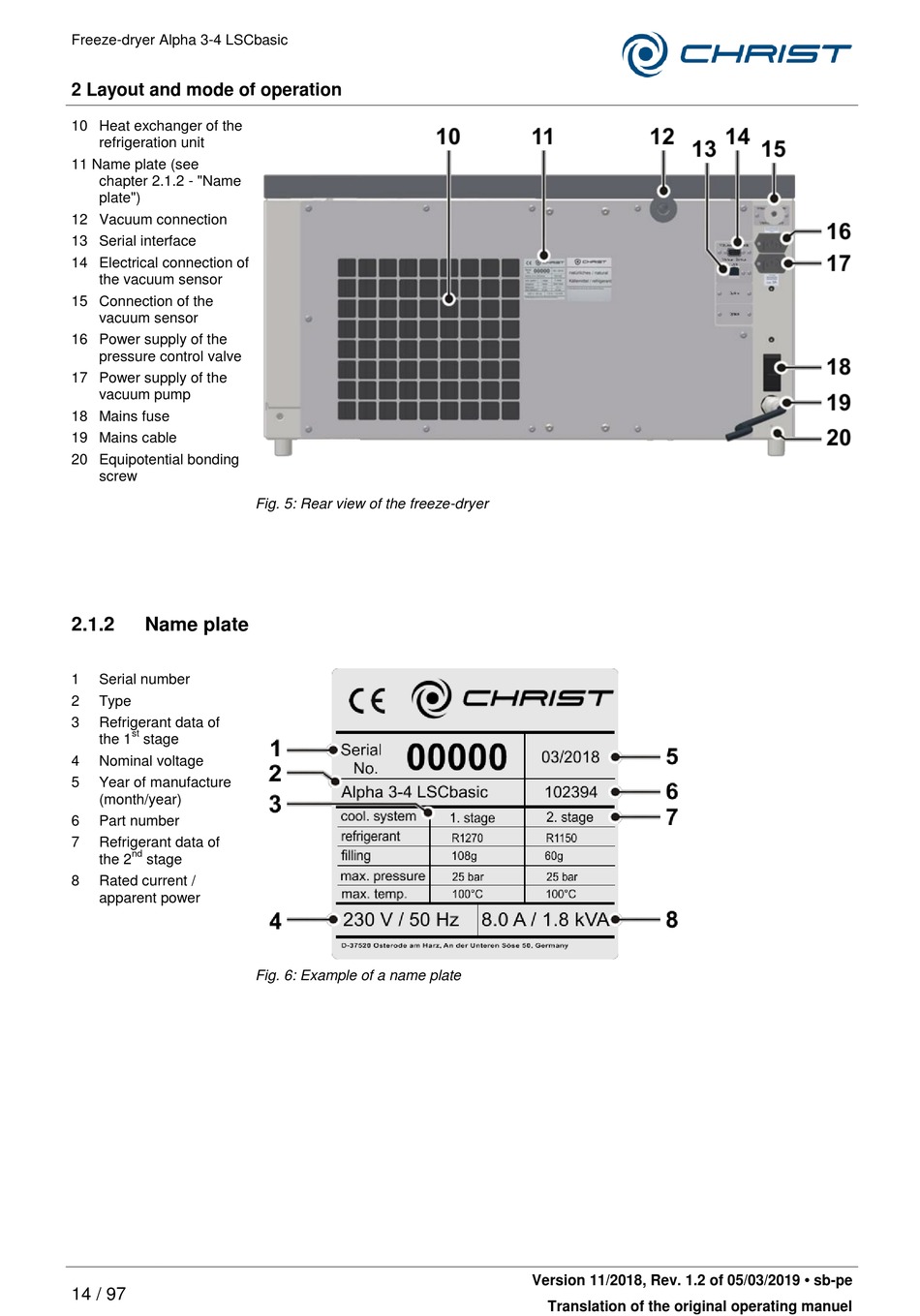

Fig. 5: Rear view of the freeze-dryer
Fig. 6: Example of a name plate
