4. Product description

The mounting system is constructed from high-quality synthetic base elements, which are connected to one another in the
longitudinal direction with aluminium base profiles. In the width direction, the FlatFix Fusion segments are connected with a
stabilizer. The required assembly materials are also included to mount the solar panels in a landscape arrangement on the
roof. The FlatFix Fusion mounting system can be used for all types of roofing materials.
Placing ballast
You do not attach the FlatFix Fusion system to the roof; it stands loose on it. The roof supports must be glued to the roof
at a roof slope of more than 3° (2° by PVC) . Please check the processing instructions of the kit and the roofing for their
compatibility.
You make the system resistant to the wind by increasing the ballast. The ballast weight is partly related to the height of the
building and configuration. Place the ballast in the ballast holders. Use the FlatFix Fusion calculator for the determination of
the amount of ballast and where to place it.
Mounting of the solar panels
The solar panels are positioned on the topside of the base elements and are affixed by means of universal module clamps,
end clamps and mounting screws. The mounting screws are screwed directly into the mounting holes of the base elements.
Grounding of the FlatFix Fusion mounting system
Grounding of the system is fast and simple. There are several possibilities for grounding the FlatFix Fusion mounting
system:
• Grounding of the solar modules by using grounding rings.
• Grounding of multiple rows by using a standard multistrand cable and special grounding clips.
• Grounding of the base profiles by using grounding spring.
• Grounding of the stabilisers by using grounding brackets.
• Grounding of the side wind deflector by using mounting screws 6,5 x 19 mm.

5. Components overview

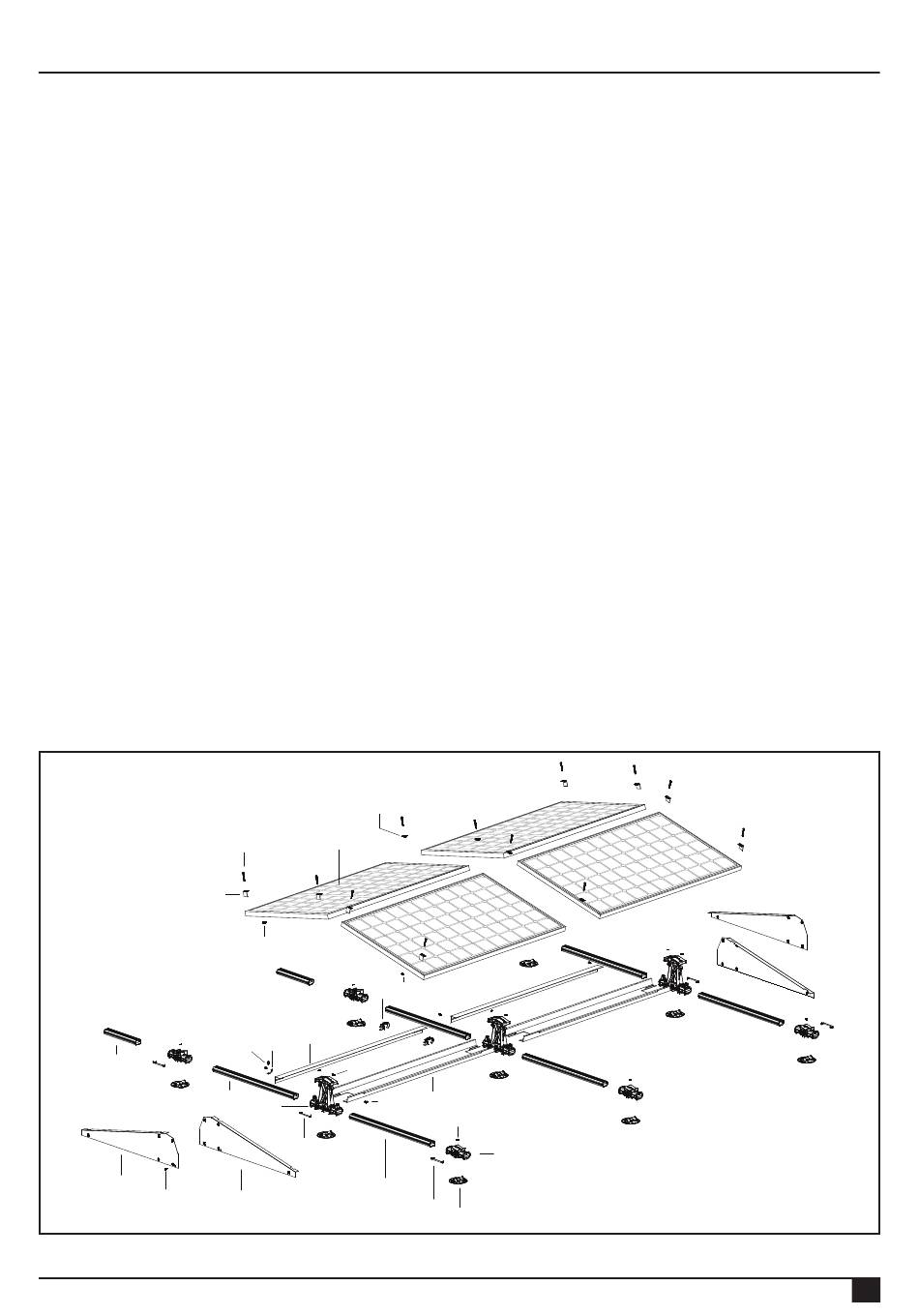

5.1 Exploded-view

7
2A
13A
12
Rev. 30.11.17
9
1
8
16
10
11
12 17
14
2
16
3
15
2
13
MANUAL FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
16
6
14
4
15
5
04
