7. Installation
7.1 Mounting of roof support to base elements

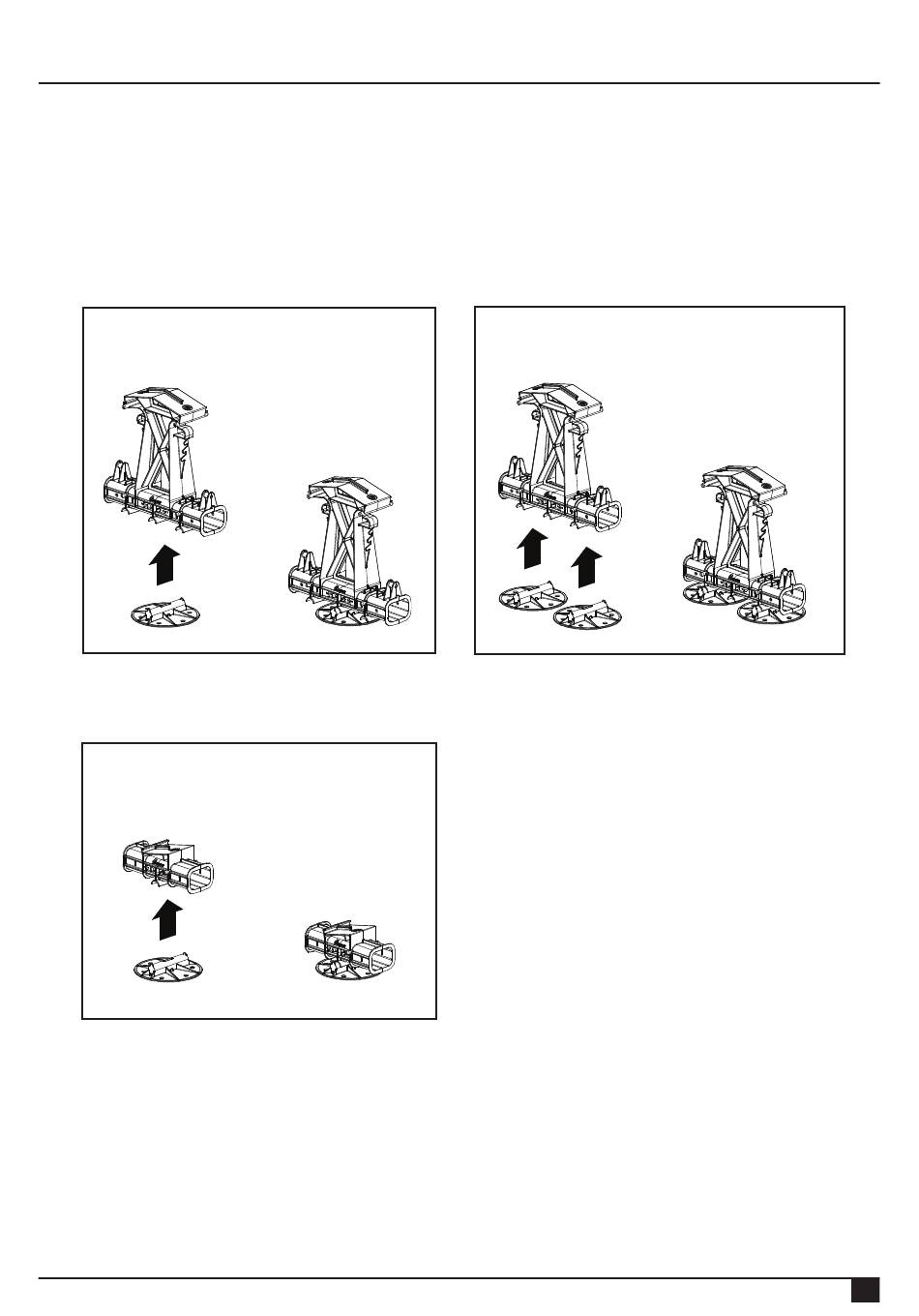

The high base element is placed on one roof support by default.
1. Attach the roof support to the high base element by means of a click connection. Use the middle click connection at the
bottom of the high base element for this. Optional: In situations where ballast is placed, two roof supports are attached
under the high base element. Use the two click connections from the middle for this (1A).
2. Attach the roof support to the lower base element by means of a click connection.
1.
1A. When there is ballast
CLICK!
CLICK!
2.
CLICK!
Rev. 30.11.17
MANUAL FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
08
