7.6 Mounting of other solar panels

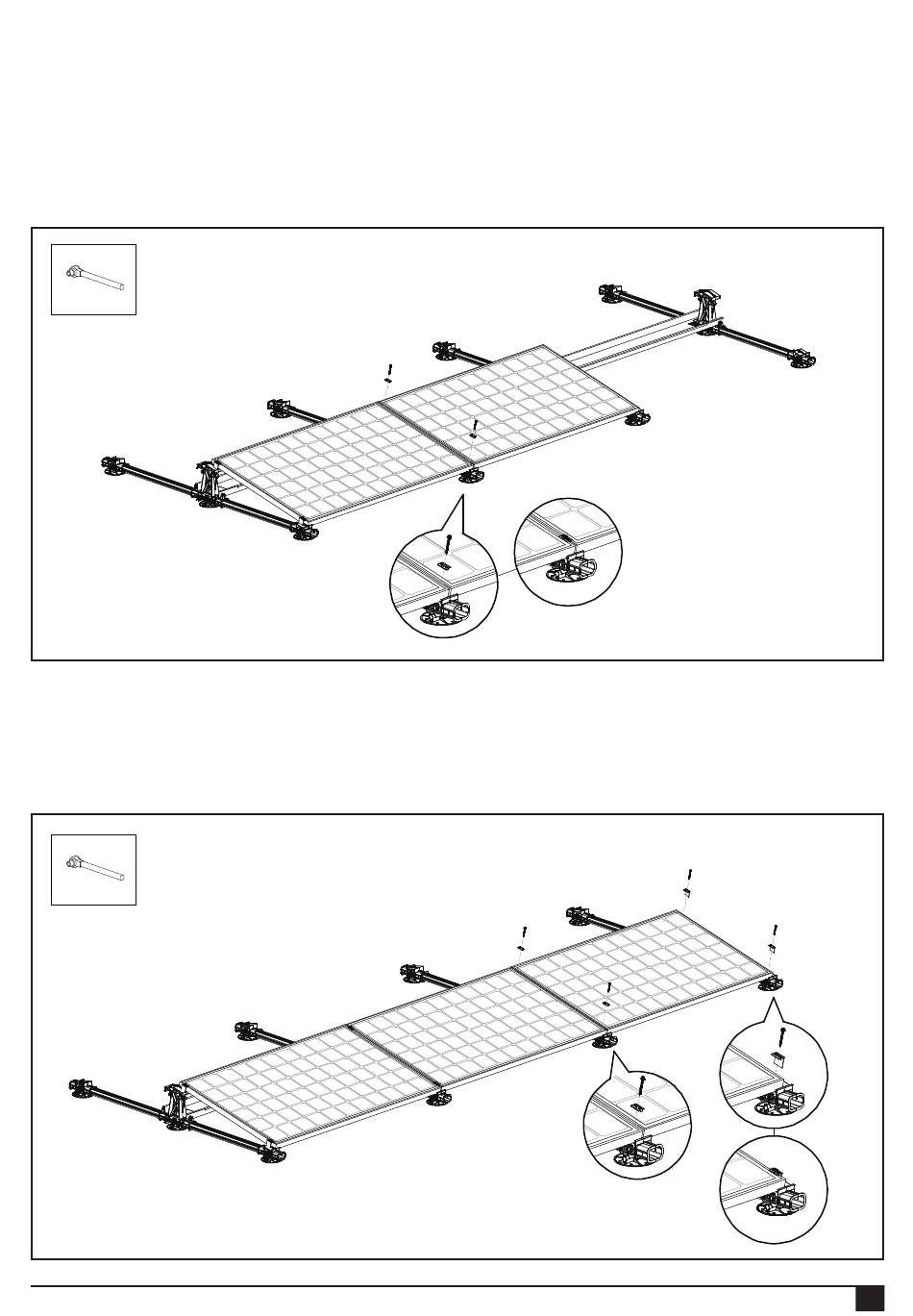

Place the second solar panel on the base elements so that it comes to rest between the upright notches.

Then screw in the mounting screw with a module clamp in the mounting holes of the base elements. Check that the solar

panels are aligned properly before tightening the screw!

CAUTION! The tightening torque of the screw connections is 4.5 Nm. Check that the mounting screws are not over-

tightened in the base element.

Place the last solar panel of the row on the base elements so that it comes to rest between the upright notches. Then screw

in the mounting screw with a module clamp in the mounting holes of the base elements.

Then screw in the two end clamps with the mounting screw in the mounting hole. Check that the solar panels are aligned

properly before tightening the screw!

CAUTION! The tightening torque of the screw connections is 4.5 Nm. Check that the mounting screws are not over-

tightened in the base element.

Rev. 30.11.17

MANUAL FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
