7.9 Grounding of ballast holders (option)

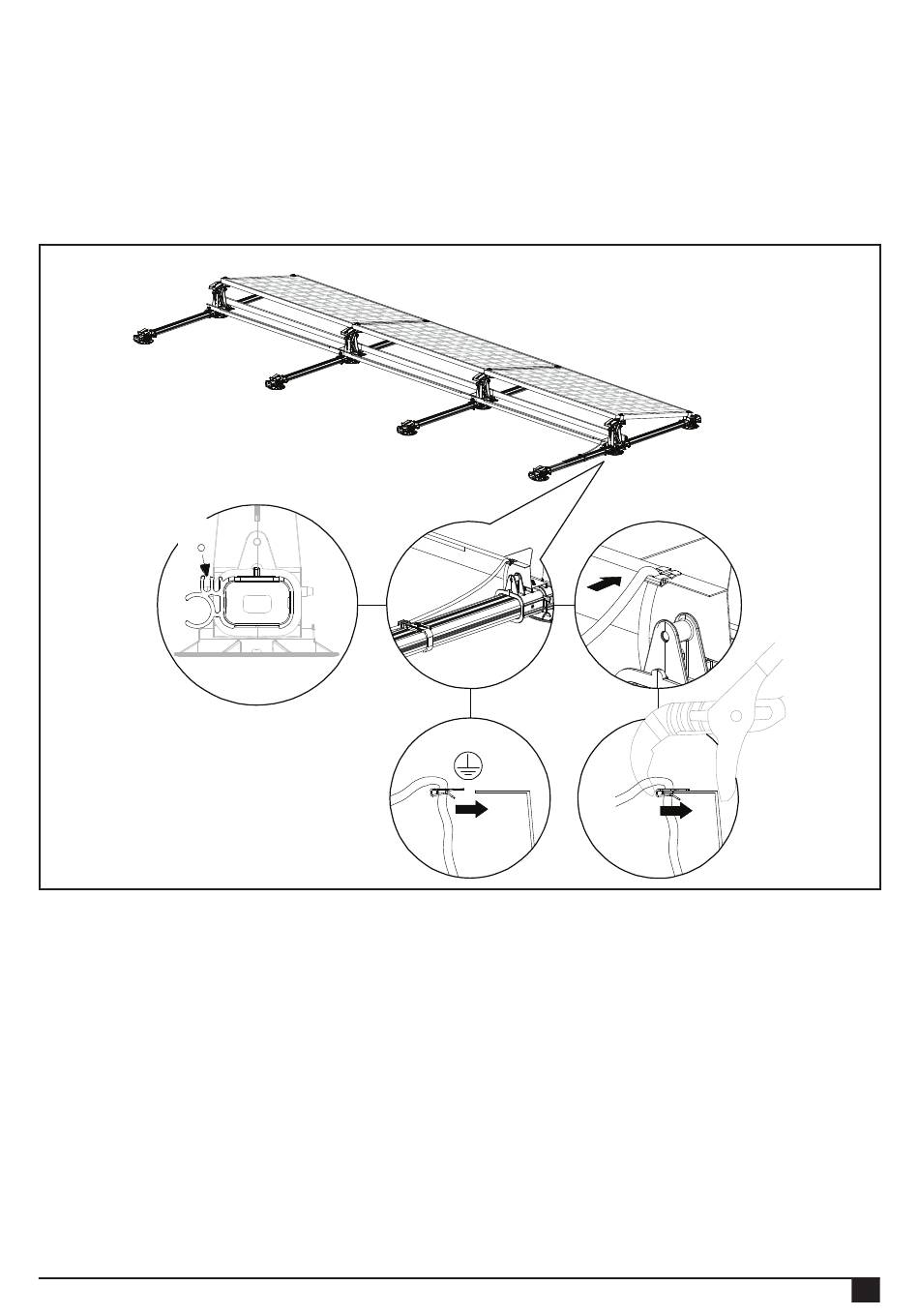

The ballast holders can easily be grounded using the same method and as the grounding of the rows. The clips are pressed
on to the ballast holders. The spikes on the clips will bite into the ballast holder ensuring a solid and durable connection.
The grounding cable used for the grounding of the rows can be used for grounding the ballast holder as well.
Place a ground clip on every first and last ballast holder of a row to ground all rows individually.
