Mounting Of 2Nd Row Of Solar Panels - ESDEC FlatFix Fusion Manual

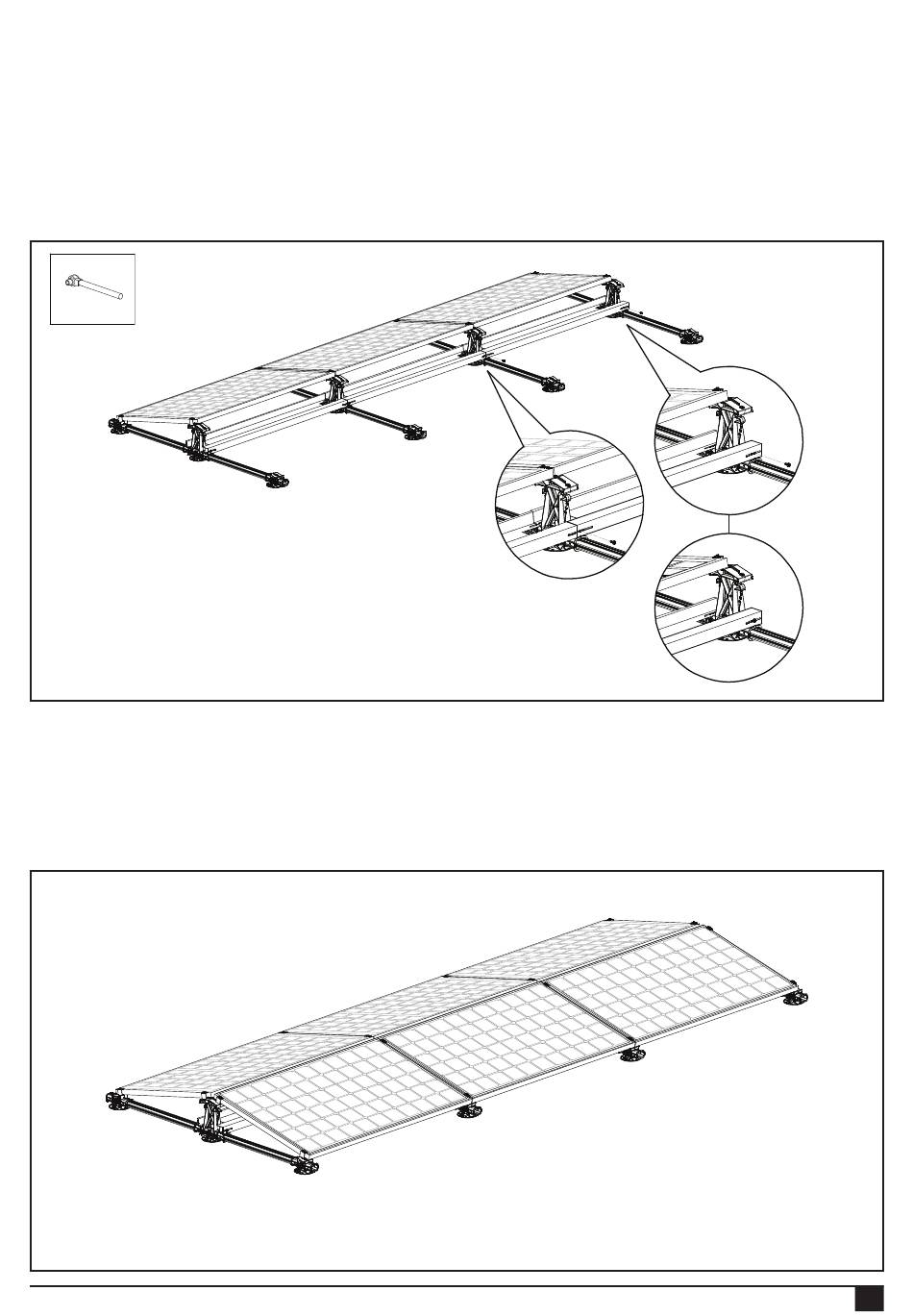

Place the last stabilizer on the rear side of the solar panels so that it falls between the upright notches of the high base
elements and that there is a small overlap with the adjacent stabilizer.
Mount the stabilizer (on both sides) to the high base elements by placing the mounting screw 6.5 x 19 mm in the two slotted
holes of the stabilizer and screw it into the mounting holes of the high base element. CAUTION! The tightening torque of the
screw connections is 4.5 Nm
Check that the mounting screws are not over-tightened in the base element.

7.12 Mounting of 2nd row of solar panels

You can now mount the 2nd solar panels row. To do this, follow the assembling steps from Chapter 7.5 to 7.6.
