ESDEC FlatFix Fusion Manual page 12

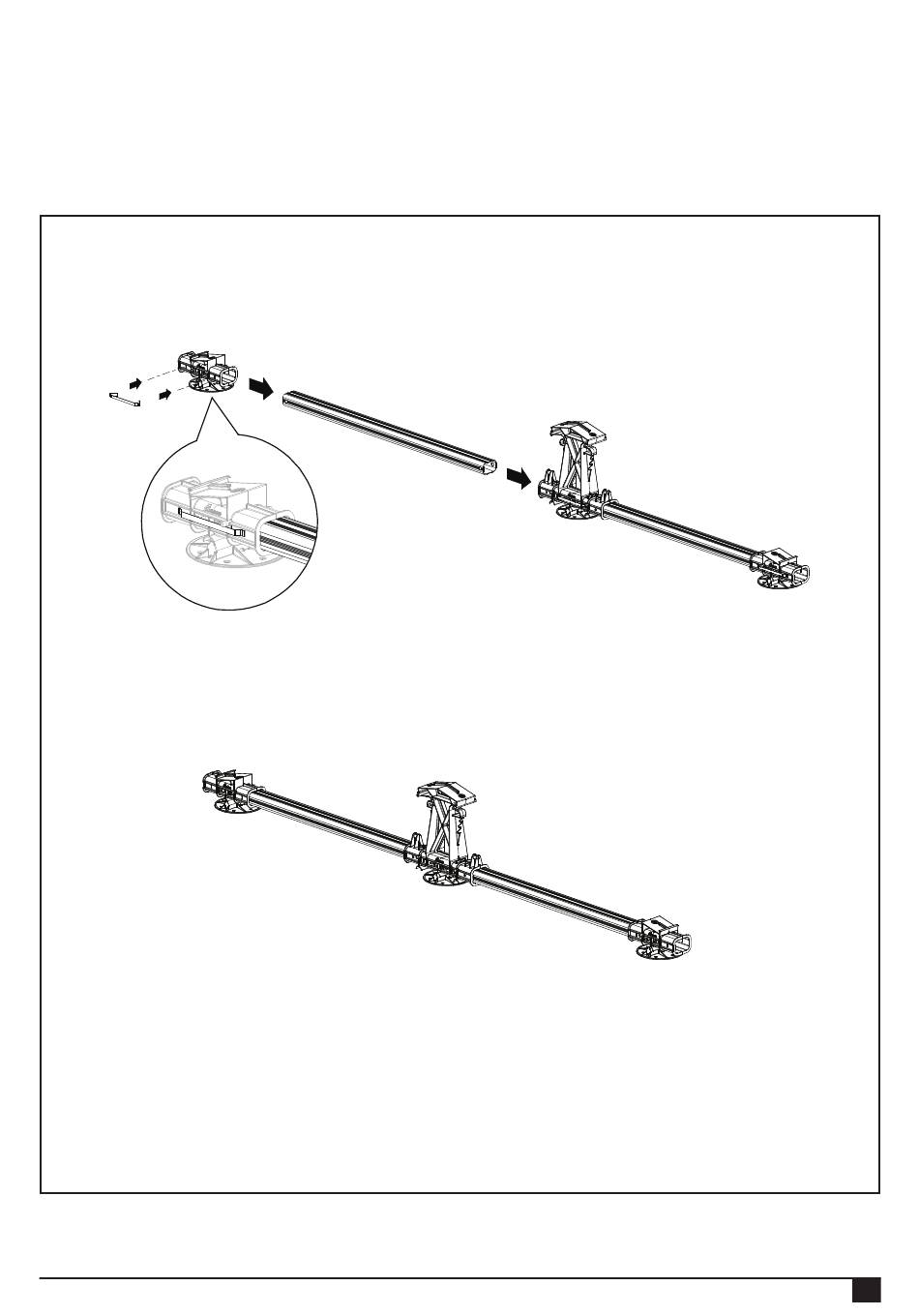

6. Slide the end of the 2nd base profile (length 94 cm) into the opening of the high base element until it clicks.
7. Place the grounding spring into the slots in the low base units before clicking in the base profiles.
8. Slide the low base element (incl. roof support) on the other end of the base profile until it clicks.
9. The first FlatFix Fusion segment is ready. Repeat the abovementioned steps until you have enough Fusion segments to
place the first two rows of solar panels.
7.
9.
Rev. 30.11.17
CLICK!
8.
MANUAL FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
6.
CLICK!
10
