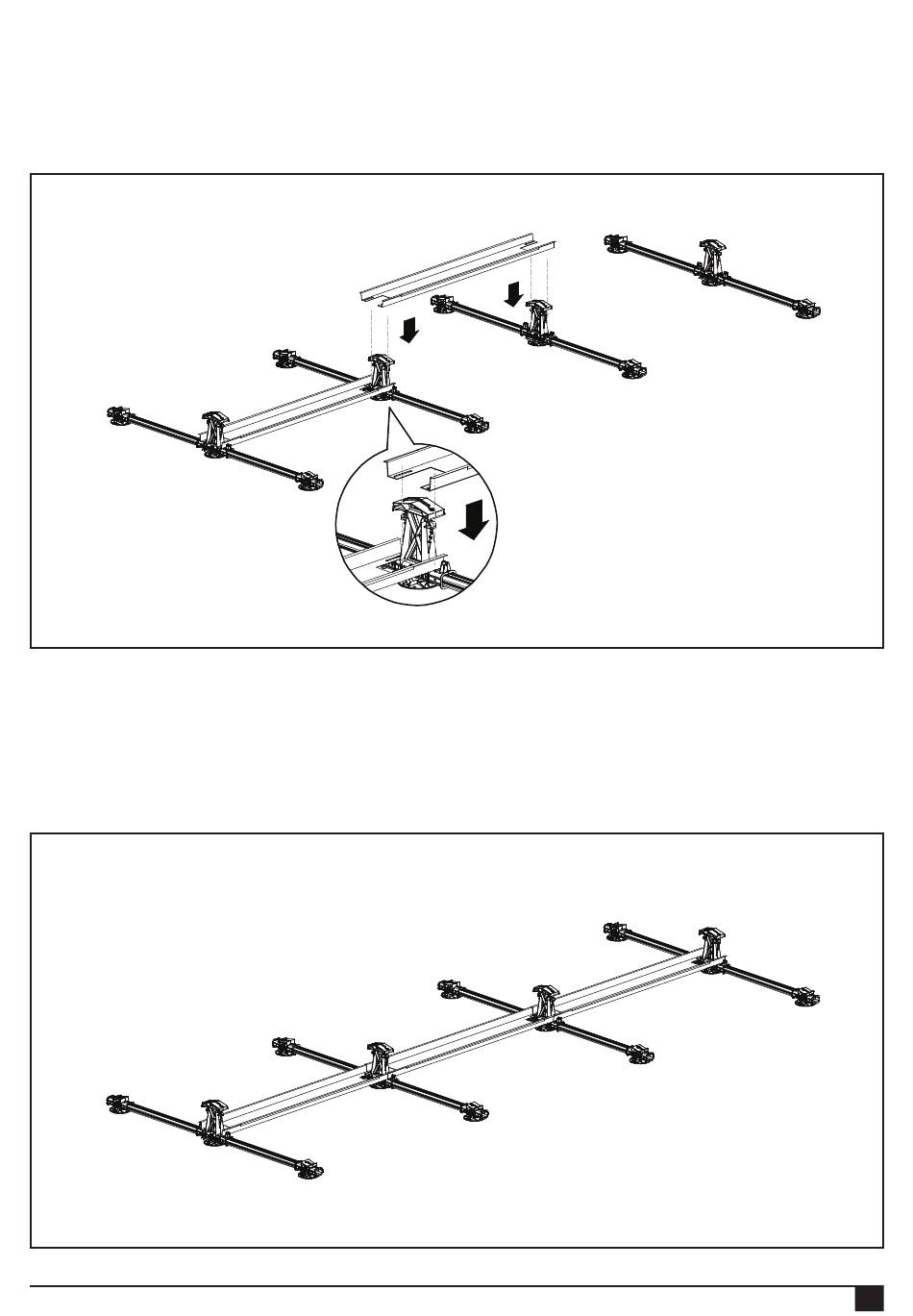

Place the second ballast holder between the FlatFix Fusion segments and in such a way that it overlaps the first ballast
holder and that the elongated holes of the ballast holder are positioned over the upright notches of the high base element.
Place the third ballast holder between the FlatFix Fusion segments and in such a way that it overlaps the second ballast
holder and that the elongated holes of the ballast holder are positioned over the upright notches of the high base element.
Repeat these steps until all ballast holders are placed.
Rev. 30.11.17
MANUAL FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
12
