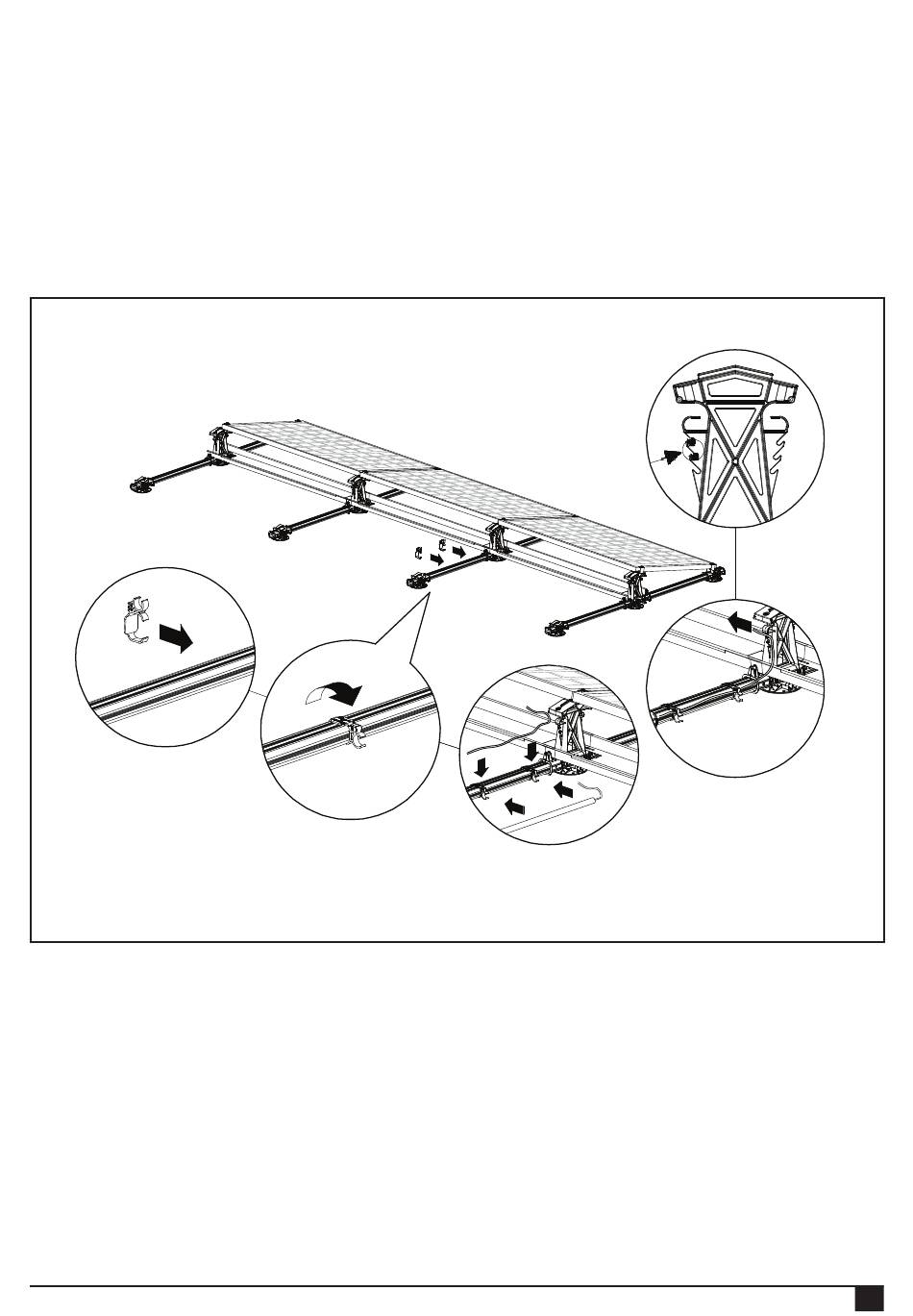

7.7 Mounting of cable clips & cables
There are cable clips supplied so that the cables of the solar panels can be guided well. There are also cut-outs present in
the high base elements available to feed the cables through. This will prevent that the cables end up lying on the (wet) roof.
For the installation, follow the steps below:
1. Place the cable clips over the narrow side of the base profiles.
2. Turn the cable clips so that they are clamped on the broad side of the base profiles.
3. Place the cables in the cable clips. The cable clip also provides for accommodation for a tube of Ø25 mm.
4. Feed the end through one of the cable conductors of the high base element.
5. The plugs of the solar panel can be confirmed to the high base element in the cable conductor.
5
1
Click!
4
2
Ø25mm
3
Rev. 30.11.17
MANUAL FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
15
