7.8 Grounding of multiple rows (option)

When the PV system is built in multiple rows these can easily be grounded by using a standardmultistrand cable of 6 mm
and special grounding clips. The design of the grounding clips ensures a good and sustainable connection between the
multistrand cable and the solar panel.

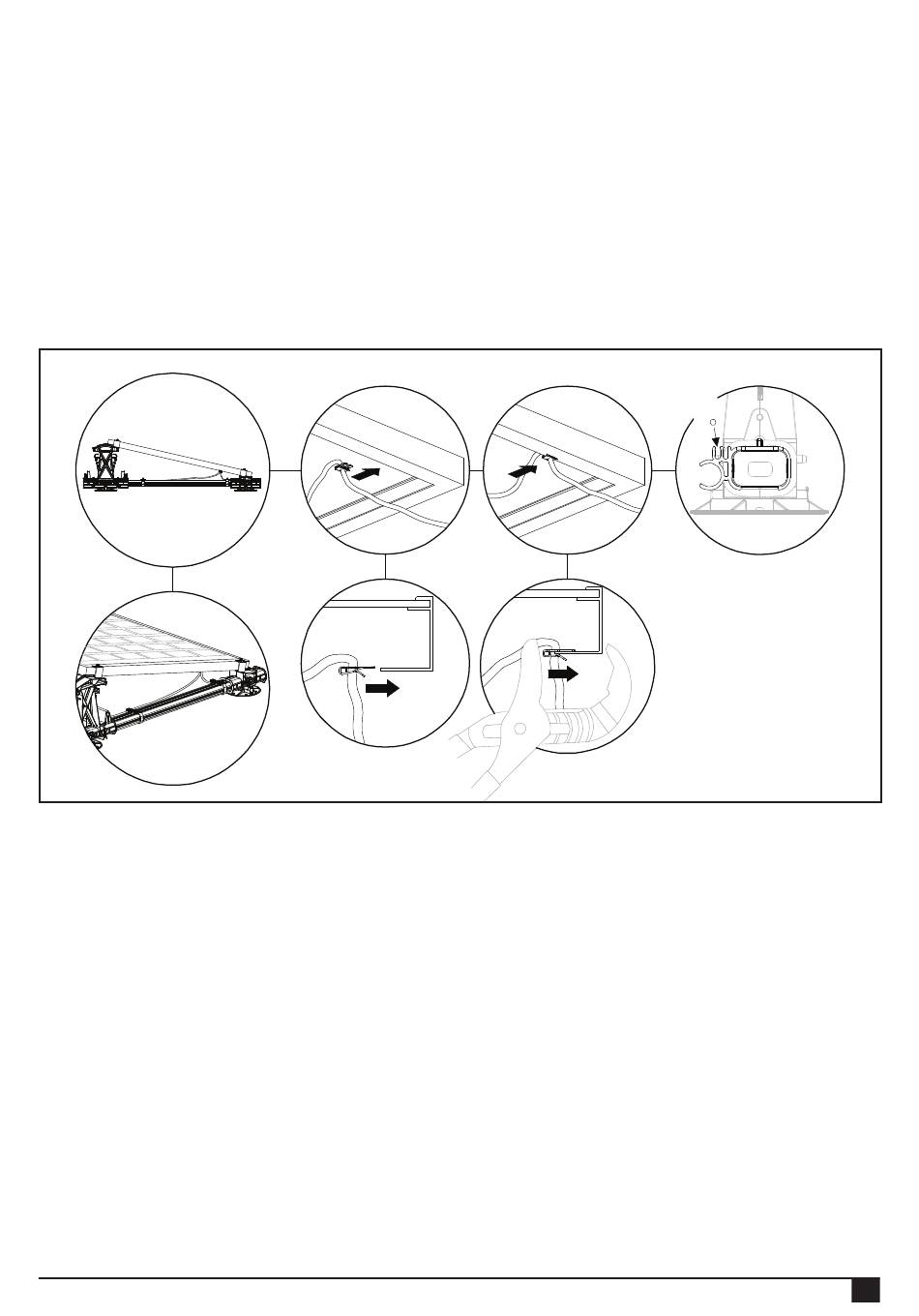

1. Place the multistrand cable on one side of the emplacement. The multistrand cable can be easily clicked into the FlatFix
Fusion cable clip. To connect the multistrand cable to the solar panel a loop must be made towards solar panel.
2. Use the grounding clip to attach the multistrand cable to the solar panel. Insert the multistrand cable into grounding clip
and use a pincers to clamp the grounding clip firmly to the solar panel. Place a grounding clip on each first solar panel in
a row. When one makes use of the grounding rings in the FlatFix Fusion base elements the rest of the solar panels in the
same row are automatically grounded.
