7.11 Grounding and mounting of stabilizer

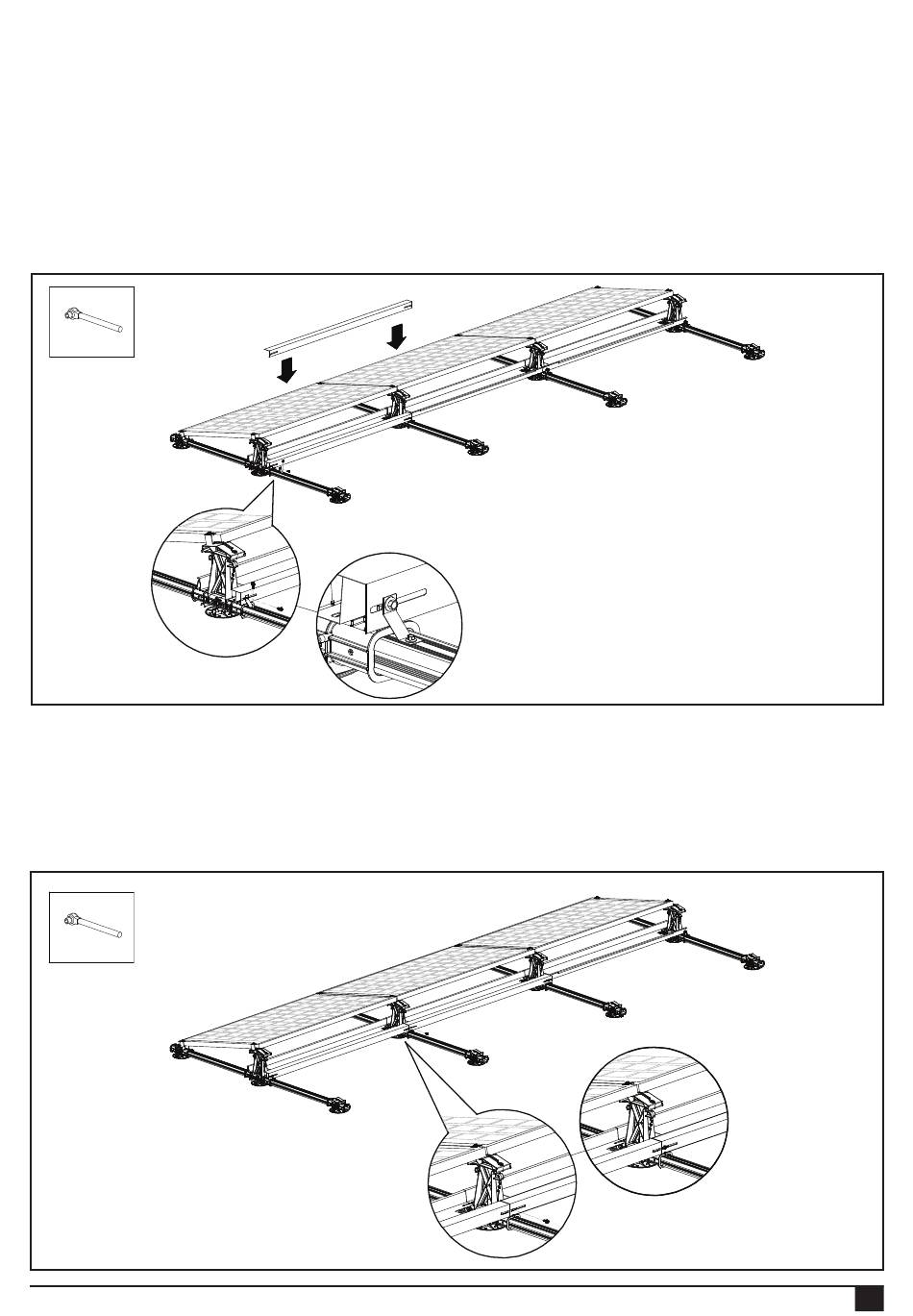

1. Place the 1st stabilizer on the rear side of the solar panels so that it falls between the upright notches of the high base
elements.
2. Place the grounding bracket onto the base profile and onto the back side of the stabilizer. Fasten the grounding bracket
to the base profile using a mounting screw 6.5 x 19 mm.
3. Mount only one side of the stabilizer (at the location of the panel field's edge) to the high base element by placing the
mounting screw 6.5 x 19 mm in the hole of the grounding bracket and in the slotted hole of the diagonal and screw it into the
mounting hole of the high base element. CAUTION! The tightening torque of the screw connections is 4.5 Nm
Check that the mounting screws are not over-tightened in the base element.
Place the 2nd stabilizer on the rear side of the solar panels so that it falls between the upright notches of the high base
elements and that there is a small overlap with the 1st stabilizer.
Mount only one side of the stabilizer (at the location of the overlap) to the high base element by placing the mounting screw
6.5 x 19 mm in the slotted hole of the 2 stabilizers and screw it into the mounting hole of the high base element.
CAUTION! The tightening torque of the screw connections is 4.5 Nm
Check that the bolts are not over-tightened in the base element. Repeat the previous step for the other intermediate
stabilizers.
Rev. 30.11.17
