3. Product Description

The ClickFit mounting system consists of mounting brackets, mounting rails and the necessary installation materials to
mount the solar panels in portrait or landscape setup on the roof. The ClickFit mounting system for bitumen / EPDM can be
used for all types of bitumen / EPDM.
Mounting system
The mounting brackets are secured to the bitumen roof using chipboard screws. Because the mounting brackets are
attached to the roof boarding, one can determine freely the location of the solar panels on the roof. Differences in height in
the roof can easily be filled by means of a special increment block (optional). In order to prevent leakage, at the bottom of
the mounting brackets a layer of Tixophalte kit is applied. In an EPDM roof at the bottom of the mounting brackets it is an
option to use as a water stop a self-adhesive sealing tape EPDM instead of the Tixophalte kit layer.
Attachment of the mounting rail
The mounting rail is attached to the mounting brackets by means of a snap connection. For this purpose, no further
materials or tools are needed.
Attachment of the panels
The handy assembly aid contributes to the quick and safe installation and also serves as sliding protection for the solar
panels. The solar panels are attached by means of universal module clamping plates, end clamps and mounting screws.
The mounting screws are screwed directly to the mounting rail in which is a special thread installed.

4. Parts overview

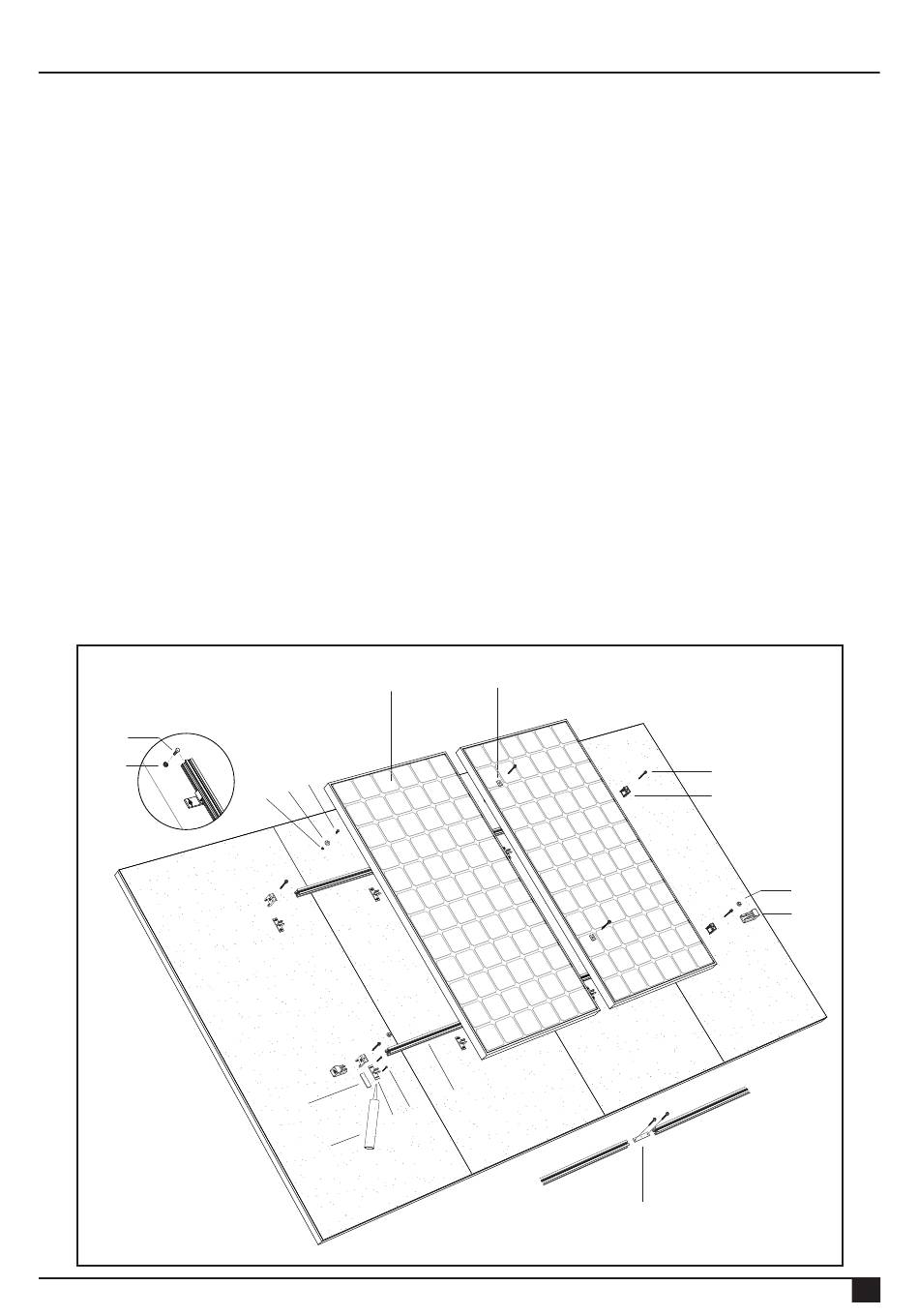

4.1 Exploded-view

9
10
Rev. 10.06.15
1
2
4 3
17
7
8
16
MANUAL MOUNTING SYSTEM FOR PITCHED ROOF WITH BITUMEN
13
5
12
11
15
14
6
03
