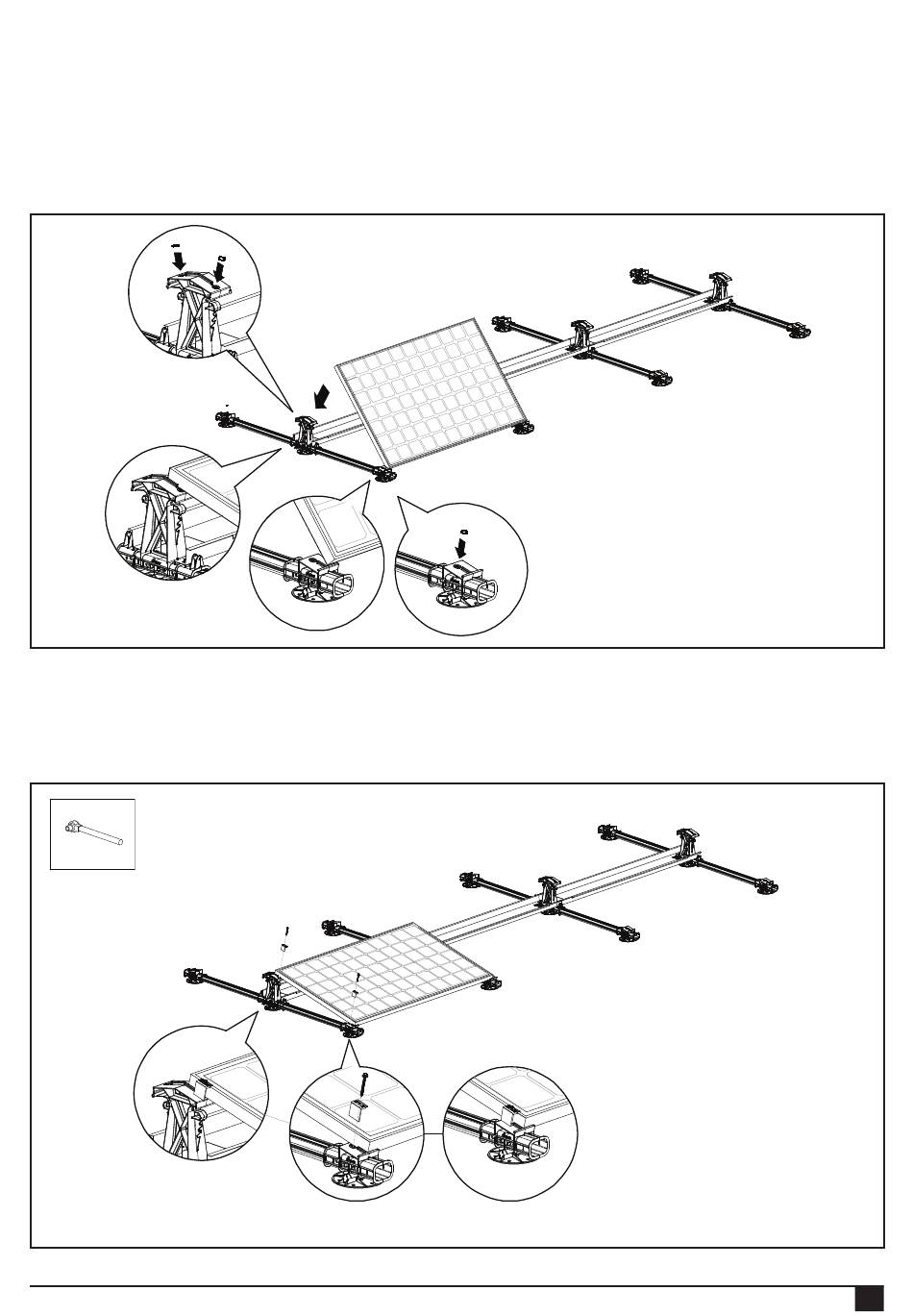

7.5 Grounding and mounting of 1st solar panel

1. Before placing the solar panels, it is optional to ground the FlatFix Fusion system per row.
Place a grounding ring on both the Base element high and low.
2. Place the 1st solar panel between the upright notches of the low base element.
3. Carefully tilt the solar panel so that it comes to rest between the upright notches of the base elements.
Optie
1
Optie
3
2 1
4. Place the end clamps on the edge of the solar panel and position them at the location of the mounting holes in the high
and low base elements. Screw in the end clamp with the mounting screw into the mounting hole. The tightening torque of
the screw connections is 4.5 Nm. CAUTION! Check that the mounting screws are not over-tightened in the base element.
