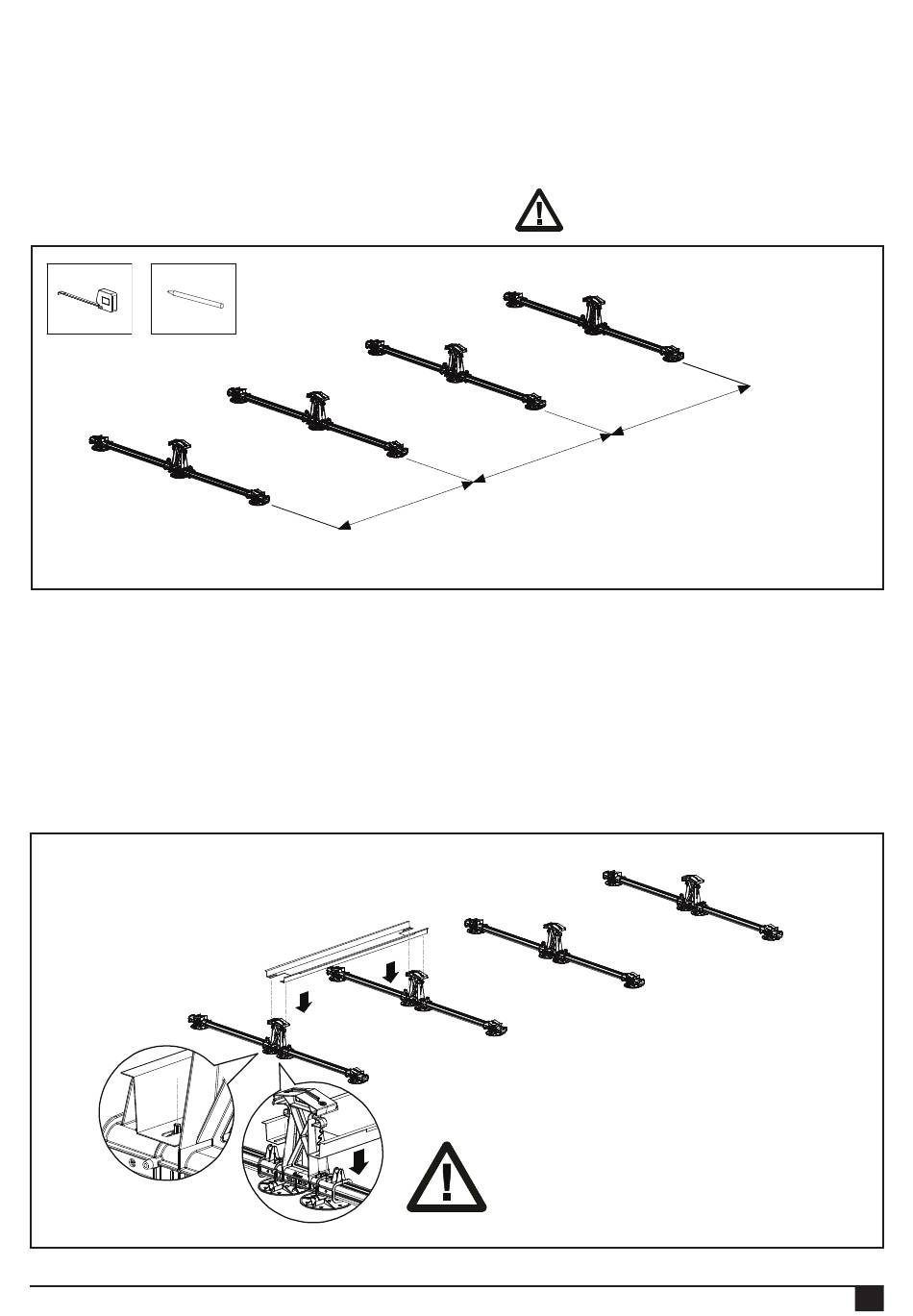

7.3 Positioning of FlatFix Fusion segments

You determine the position of the FlatFix Fusion segments based on the position of the solar panels on the roof. Divide the
FlatFix Fusion segments proportionally in the line where the solar panels go. The FlatFix Fusion segments may be placed
maximally 2 m apart from centre to centre (see calculator for distance).
Draw with chalk or a marker on the roof where the FlatFix Fusion segments should come.
Make sure the FlatFix Fusion segments are mutually aligned.
Measurement solar panel
Measurement solar panel
Measurement solar panel

7.4 Mounting of ballast holders

The ballast positions are determined by means of the calculator. Place the ballast holders on the locations indicated by the
calculator. CAUTION! Make sure the high base elements at the location of the ballast holders always provided with two roof
supports!
Insert the first ballast container diagonally and place it between the FlatFix Fusion segments in such a way that the
elongated holes of the ballast holder are positioned over the upright notches of the high base element.
Check that the FlatFix Fusion segments are next to one another with regards to the alignment of the solar panels!
