7.2 Grounding and mounting of base profile to base elements

Grounding of the base profiles (option)

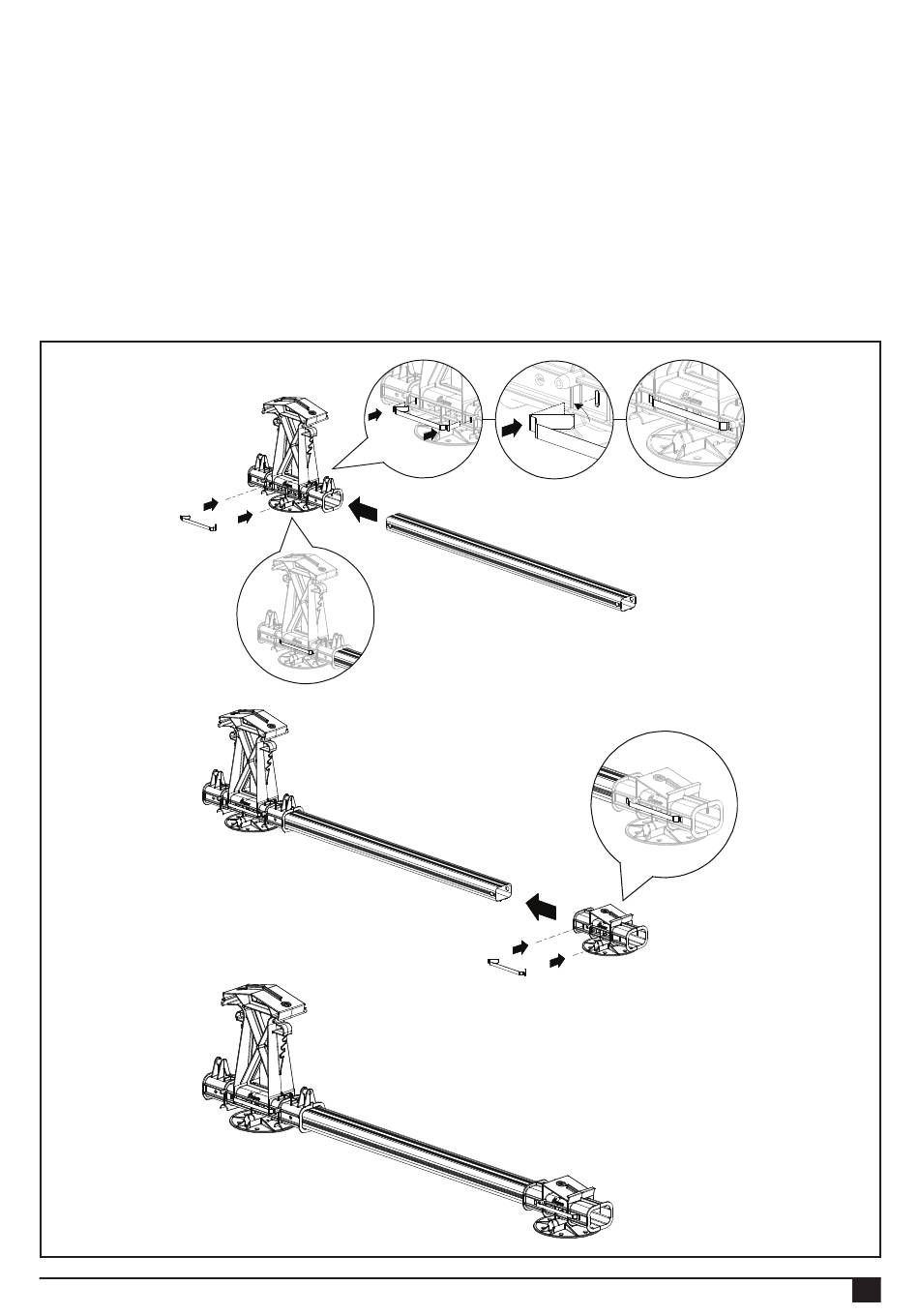

1. Place the grounding spring into the slots in the high base units before clicking in the base profiles.
Using 1 groundingspring equals a connection surface of 3mm2, using two grounding springs (a spring on each sideof the
base units), equals a connection surface of 6mm2. The spikes on the grounding springsbite into the base profiles ensuring
a solid and durable connection.
2. Put the high base element (incl. roof support) upright and slide the end of the base profile (length 94 cm) into the
opening of the high base element until it clicks.
3. Place the grounding spring into the slots in the low base units before clicking in the base profiles.
4. Slide the low base element (incl. roof support) on the other end of the base profile until it clicks.
5. One side of the FlatFix Fusion segment is ready.
1.
2. CLICK!
4.
CLICK!
3.
5.
