7.13 Mounting of wind deflector left/right

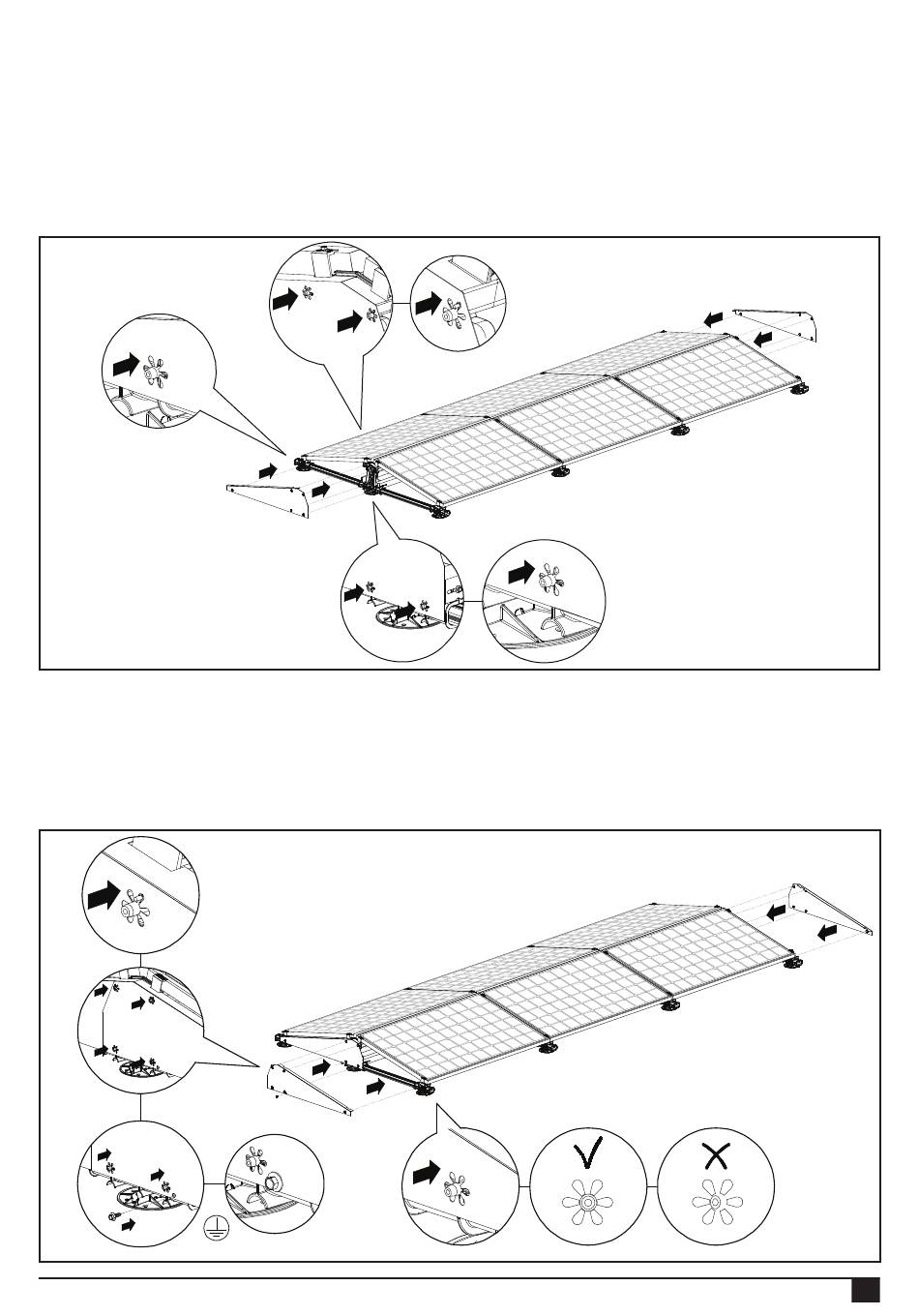

Place the left wind deflector next to the left side of the panel field and the right wind deflector next to the right side.
Take note: The flange of the wind deflector must always face the panel field.
Install the two wind deflectors (left and right) by pressing the Sunlock in the wind deflectors over the catches of the base
elements. Mount the wind deflector carfully. Make sure all the tabs on the Sunlock fit well over the catch of the base
element. Press the wind deflector well so that it fits on the base. The wind deflectors are now locked.
Place the 2nd left wind deflector next to the left side of the panel field and the 2nd right wind deflector next to the right side.
Take note: The flange of the wind deflector must always face the panel field.
Install the two wind deflectors (left and right, with an overlap) by pressing the Sunlock in the wind deflectors over the
catches of the base elements. If you are in doubt whether the wind deflector is well secured or if you wish to ground it
(option), you can secure it with a mounting screw 6.5 x 19 mm. Insert this screw in the wind deflector and the basic profile.
Use the pre‐punched hole in the side wind deflector next to the bottom sun‐lock as a pilot. The side wind deflectors are now
grounded and secured. And the first row of solar panels is ready!
