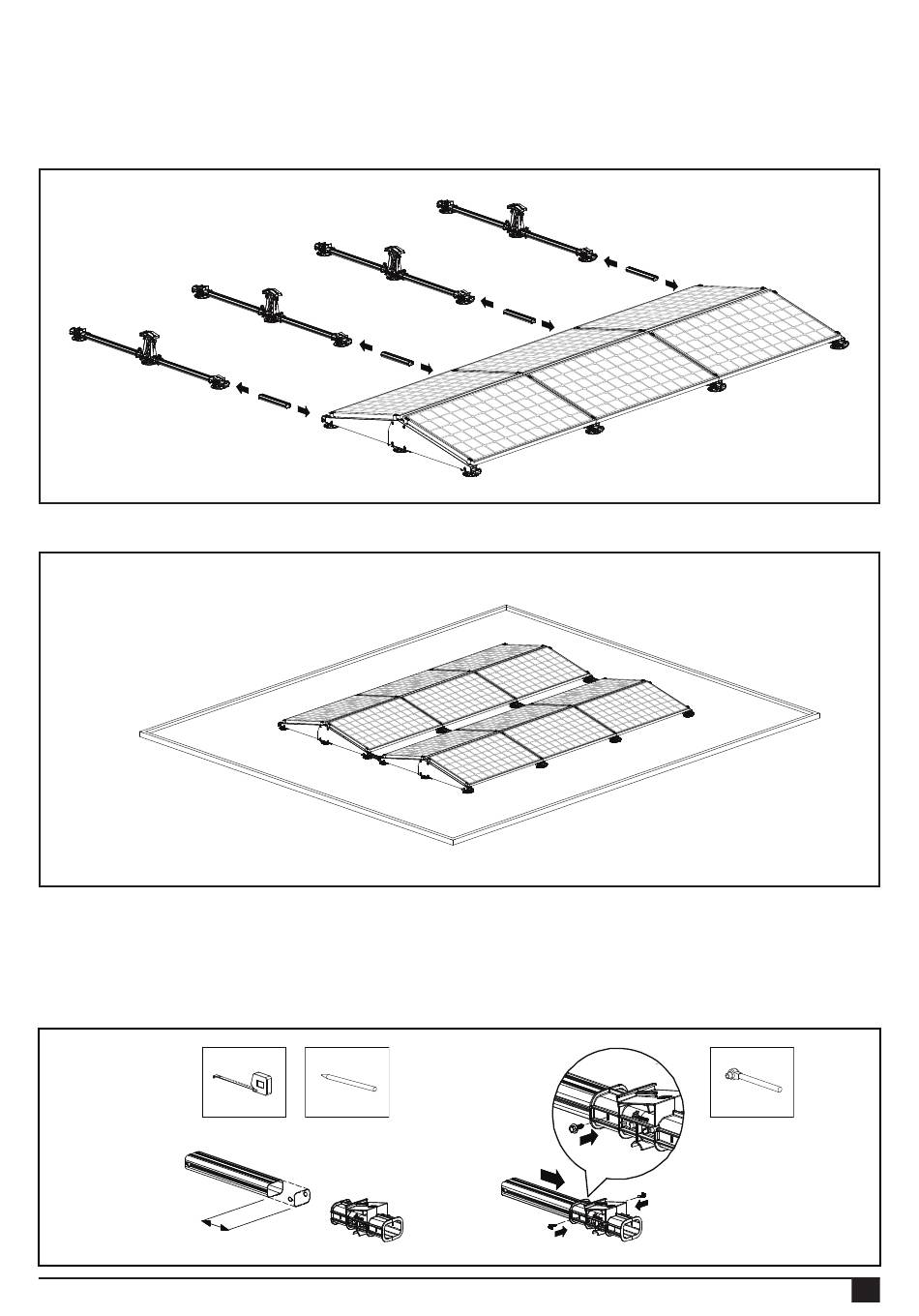

7.14 Several rows behind one another

If you want to mount more rows of solar panels one behind the other, then you must first create FlatFix Fusion segments
again (see section 7.1) and connect them to the base profile to the already mounted panel field.
The panel field is now ready!

7.15 Shorten base profile (option)

If desired, the base profiles between the rows of solar panels can be shortened. Cut the profiles to the desired length
on the side of the high base element. Slide the base profile in the high base and secure it with two self-tapping screws
6,0x25 (Article nr.100-3010).
1
Rev. 30.11.17
MANUAL FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
