Industrial Electronic Devices

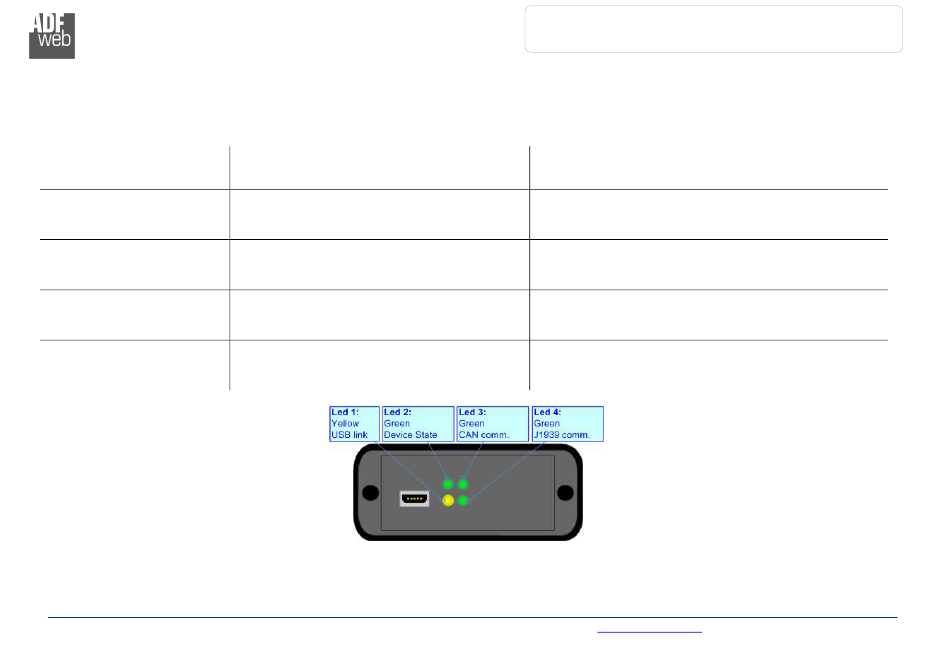

LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: USB link (yellow)
2: Device state (green)
3:CAN communication
(green)
4: J1939 communication
(green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
ON: USB cable inserted
OFF: USB cable not inserted
Blinks slowly (~1Hz)
Blinks when CAN frames are received
Blinks when J1939 frames are received
User Manual J1939 / CAN - Converter
Document code: MN67439_ENG
Page 9 of 33
Boot Mode
ON: USB cable inserted
OFF: USB cable not inserted
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO:
www.adfweb.com
Revision 1.101 Page 9 of 33
