UPDATE DEVICE (ONLY FOR THE HARDWARE WITHOUT USB PORT):
By pressing the "Update Device" button it is possible to load the created Configuration into the device; and also the Firmware, if is
necessary.
In order to load the parameters or update the firmware in the Converter, follow these
instructions:
Connect the AC67400 to the PC;
Connect the CAN port of AC67400 to a CAN port of HD67439;
Turn ON the device;
Select the "COM port";
Select the "Baudrate";
Press the "Next" button;
Select which operations you want to do.
Press the "Execute update
When all the operations are "OK" turn OFF the device;
Disconnect the AC67400;
Turn ON the device.
At this point the configuration/firmware on the device is correctly update.
ADFweb.com Srl – IT31010 – Mareno – Treviso
firmware" button to start the upload;

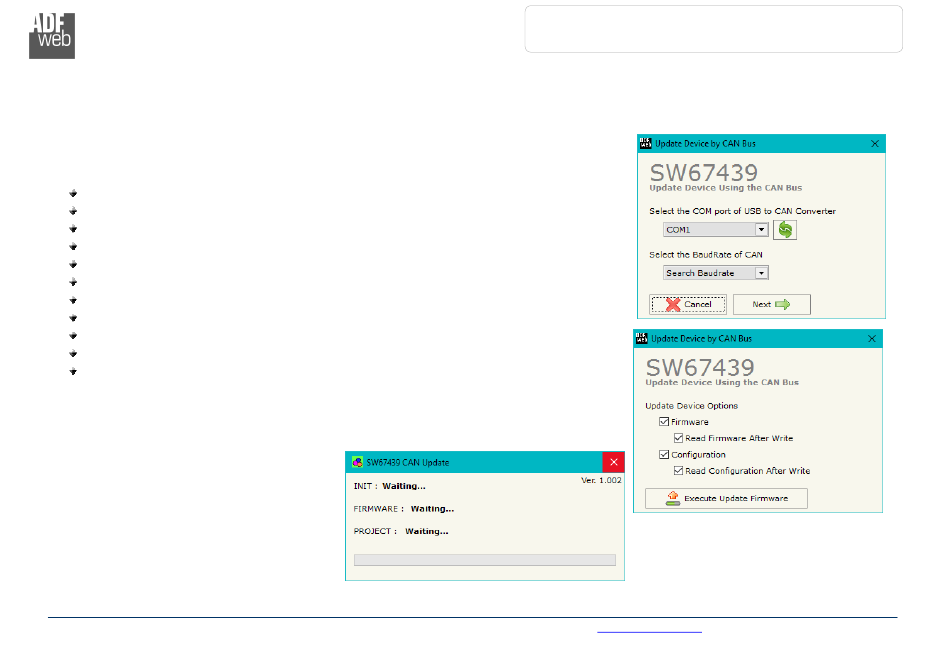

Figure 10: "Update Device" windows
