Industrial Electronic Devices

User Manual

Revision 1.000

English

DMX / PROFINET – Converter

(Order Code: HD674-A028)

For Website information:

www.adfweb.com?Product=HD674-A028

For Price information:

www.adfweb.com?Price=HD674-A028

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 105°C (-40°F / 221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual DMX / PROFINET - Converter

Document code: MN674-A028_ENG

For others Gateways / Bridges:

J1939 to Modbus

Need help?

Do you have a question about the HD674-A028 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD674-A028

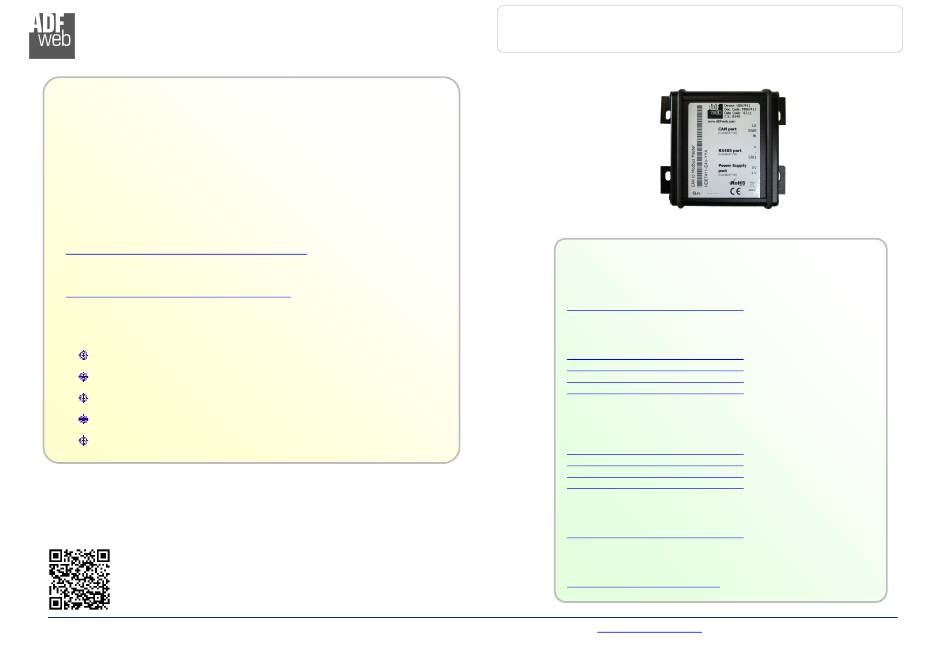

Page 1 Document code: MN674-A028_ENG Revision 1.000 Page 1 of 28 Industrial Electronic Devices User Manual Revision 1.000 English DMX / PROFINET – Converter (Order Code: HD674-A028) For Website information: www.adfweb.com?Product=HD674-A028 For others Gateways / Bridges: For Price information: J1939 to Modbus www.adfweb.com?Price=HD674-A028 See also the following links: www.adfweb.com?Product=HD67212...
Page 2: Table Of Contents
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 2 of 28 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated...
Page 3: Security Alert
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 3 of 28 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Examples Of Connection
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 4 of 28 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 5 of 28 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD674-A028-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 6 of 28 Industrial Electronic Devices Figure 1b: Connection scheme for HD674-A028-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7: Characteristics
Industrial Electronic Devices CHARACTERISTICS: The “HD674-A028” series are rugged devices used to interface DMX devices with PROFINET network. With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD674-A028-Exx-xx Consumption at 24V DC: Device W/VA HD674-A028-Exx-xx Caution: Not reverse the polarity power HD674-A028-E4x-xx HD674-A028-E7x-xx Note: It is possible to use also negative tensions.
Page 9: Leds
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 9 of 28 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 10: Rs485
Industrial Electronic Devices RS485: The connection of the RS485 in the HD674-A028-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page. The connection of the RS485 in the HD67-A028-E7x-xx device must be made with a AMP SuperSeal 1.5 Male connector.
Page 11: Ethernet
ETHERNET: The connection of Ethernet in the HD674-A028 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
Page 12: Use Of Compositor Sw674-A028
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 12 of 28 Industrial Electronic Devices USE OF COMPOSITOR SW674-A028: To configure the Converter, use the available software that runs with Windows called SW674-A028. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 13: New Project / Open Project
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 13 of 28 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “...
Page 14: Software Options
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 14 of 28 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 15: Set Communication
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 15 of 28 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, DMX and PROFINET. By Pressing the “Set Communication” button from the main window of SW674-A028 (Fig. 2) the window “Set Communication”...
Page 16: Dmx Default Value
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 16 of 28 Industrial Electronic Devices DMX DEFAULT VALUE: By pressing the “DMX Default Value” button from the main window for SW674-A028 (Fig. 2) the “DMX Default Value” window appears (Fig. In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON.
Page 17: Update Device
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 17 of 28 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Connect the USB cable;...
Page 18 A028 device. Note: When you receive the device, for the first time, you also have to update the Firmware in the HD674-A028 device. Warning: If Fig. 6 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
Page 19: Plc Configuration
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 19 of 28 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the TIA Portal software by Siemens.
Page 20 User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 20 of 28 Industrial Electronic Devices 2) Import the module in the network; connect the device to the PLC network and edit the parameters of IP, station name etc. ADFweb.com Srl –...
Page 21 User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 21 of 28 Industrial Electronic Devices 3) Load the configuration into the PLC. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 22: Mechanical Dimensions
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 22 of 28 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 23 User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 23 of 28 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 24 User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 24 of 28 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 25 User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 25 of 28 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 26: Order Code
Revision 1.000 Page 26 of 28 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD674-A028 – E y z – s f Fixing lugs A: Type A B: Type B...
Page 27: Disclaimer
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 27 of 28 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 28: Warranties And Technical Support
User Manual DMX / PROFINET - Converter Document code: MN674-A028_ENG Revision 1.000 Page 28 of 28 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
