RECEIVE CAN:

By pressing the "Receive CAN" button from the main window of SW67439 (Fig. 2) the window "Receive CAN Frames" appears (Fig. 6). This
section is used to define the CAN messages accepted by the converter.
The means of the fields of the table are:
In the field "Cob-ID" the COB-ID of the CAN frame is defined;
In the field "Type" the type of CAN message received is defined ('2.0A (11bits)' or '2.0B (29bits)');
In the field "Dimension" the number of bytes of the CAN frame (from 1 to 8) is defined;
In the field "Byte1" the offset of the internal array where saving byte 1 of the CAN frame is defined;
In the field "Byte2" the offset of the internal array where saving byte 2 of the CAN frame is defined;
In the field "Byte3" the offset of the internal array where saving byte 3 of the CAN frame is defined;
In the field "Byte4" the offset of the internal array where saving byte 4 of the CAN frame is defined;
In the field "Byte5" the offset of the internal array where saving byte 5 of the CAN frame is defined;
In the field "Byte6" the offset of the internal array where saving byte 6 of the CAN frame is defined;
In the field "Byte7" the offset of the internal array where saving byte 7 of the CAN frame is defined;
In the field "Byte8" the offset of the internal array where saving byte 8 of the CAN frame is defined;
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual J1939 / CAN - Converter
Document code: MN67439_ENG
Page 19 of 33

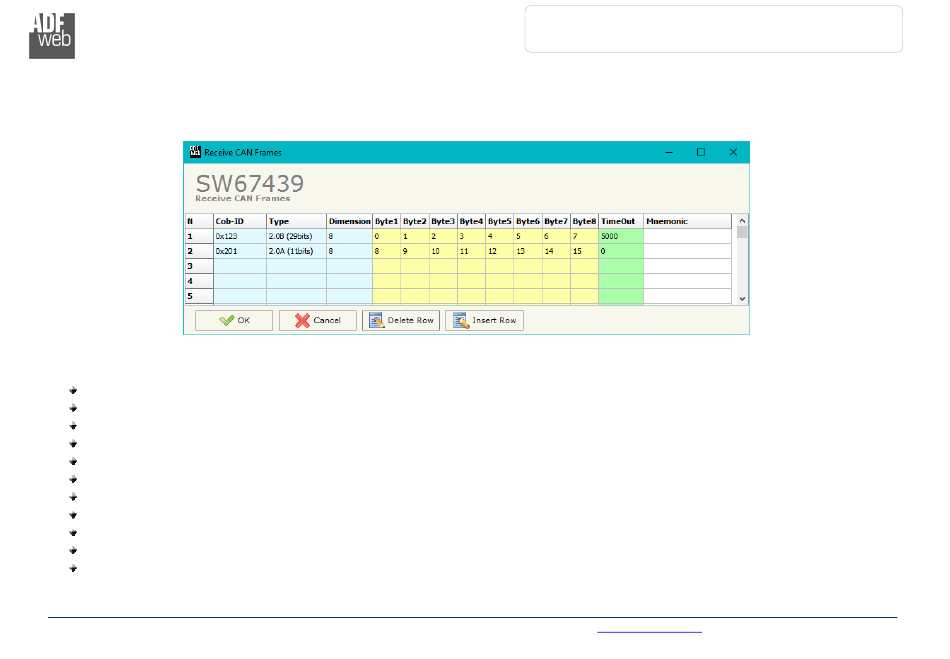

Figure 6: "Receive CAN Frames" window
