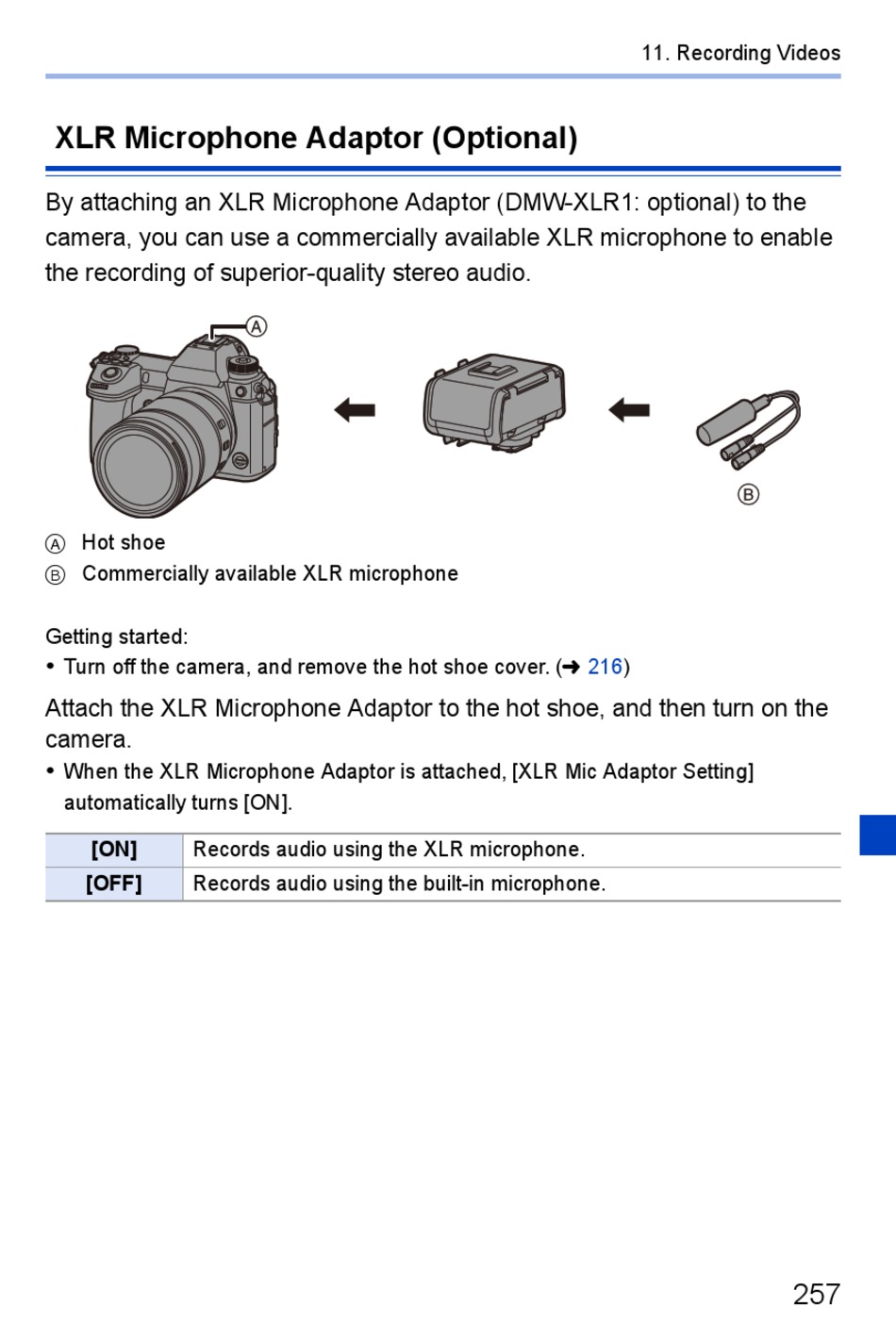

XLR Microphone Adaptor (Optional)

By attaching an XLR Microphone Adaptor (DMW-XLR1: optional) to the
camera, you can use a commercially available XLR microphone to enable
the recording of superior-quality stereo audio.
A Hot shoe
B Commercially available XLR microphone
Getting started:
0 Turn off the camera, and remove the hot shoe cover. (l 216)
Attach the XLR Microphone Adaptor to the hot shoe, and then turn on the
camera.
When the XLR Microphone Adaptor is attached, [XLR Mic Adaptor Setting]
0
automatically turns [ON].
[ON] Records audio using the XLR microphone.
[OFF] Records audio using the built-in microphone.
