3. Basic Operations

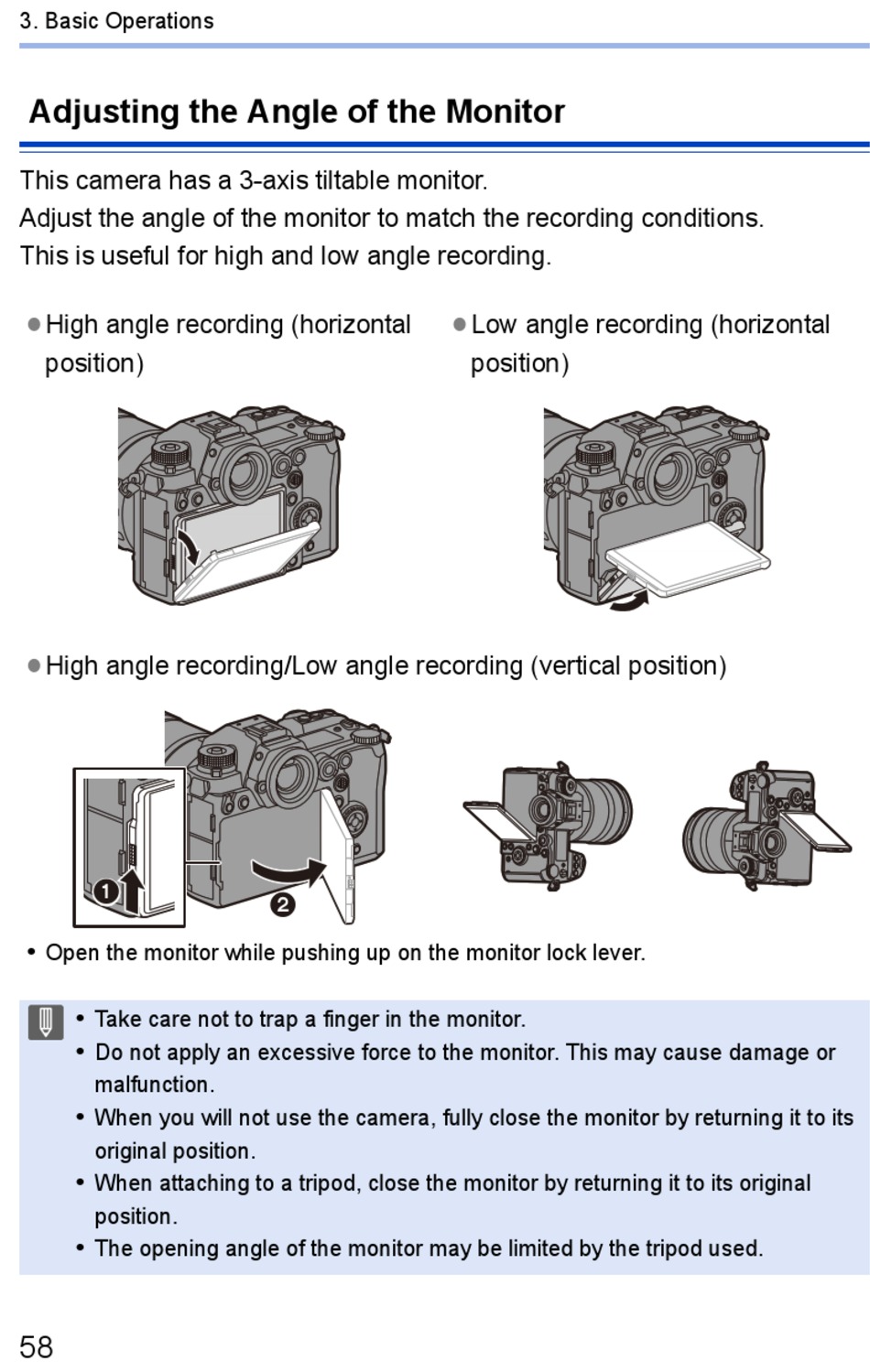

Adjusting the Angle of the Monitor
This camera has a 3-axis tiltable monitor.
Adjust the angle of the monitor to match the recording conditions.
This is useful for high and low angle recording.
≥High angle recording (horizontal
position)
≥High angle recording/Low angle recording (vertical position)
Open the monitor while pushing up on the monitor lock lever.
0
Take care not to trap a finger in the monitor.
0
Do not apply an excessive force to the monitor. This may cause damage or
0
malfunction.
When you will not use the camera, fully close the monitor by returning it to its
0
original position.
When attaching to a tripod, close the monitor by returning it to its original
0
position.
The opening angle of the monitor may be limited by the tripod used.
0
58
≥Low angle recording (horizontal
position)
