4.14

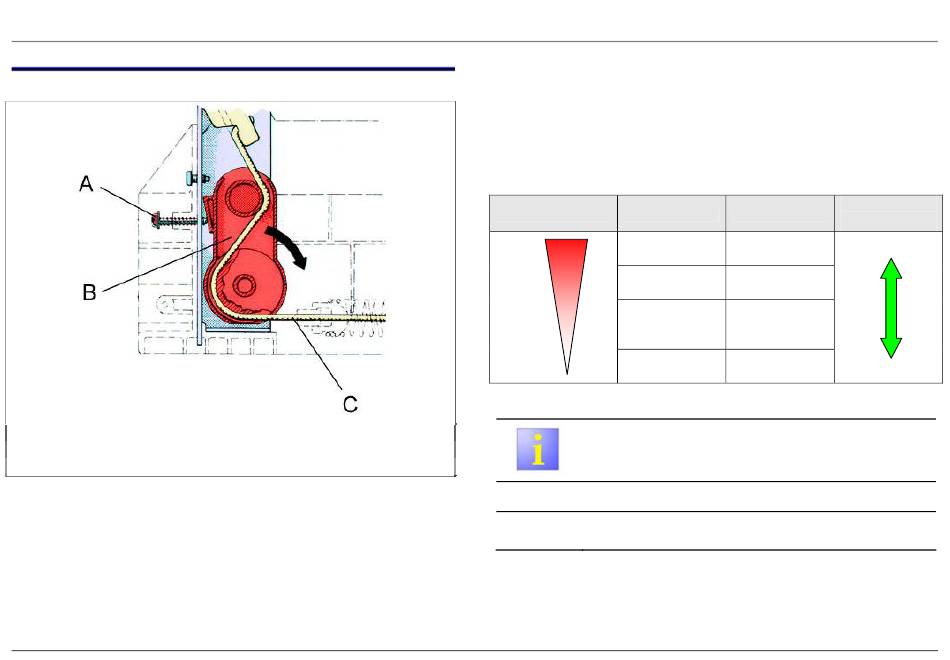

Door spring

The door spring compensates for the weight of the furniture front.
A
Adjusting screw
B
Spring tensioner (deflection roller)
C
Tension cord
The door springs are situated on the right and left under the base pan.
The tensile force is transferred to the door hinge with a tension cord
(C) via a deflection roller (B). The clamping force of the spring can
be increased with the enclosed adjusting screw (A) (built-in appliances
only) via the deflection roller (B).
815_58300000120057_ara_en_d.doc – 25.05.11
If the furniture doors are very heavy (e.g.: marble), the tensile force
of the standard installed springs and maximum pretension of the
spring tensioner is no longer adequate.
In this case stronger door springs (see table) may be used.
If furniture doors are very light, the door springs can also be replaced
by lighter ones.
Spring force
Coloured dot
max.
light pink
blue-purple
light blue
(yellow-green)
beige
min.
Distinguishing feature
The door springs can be identified by a coloured
dot on the rear of the appliance.
The door springs must be replaced in pairs only!
The maximum weight of the furniture door
is approx. 8 kg.
Max. weight
Material no.:
of furniture
d
Approx. 8 kg
174745
174631
174500
174467
1 kg
Seite 22 von 60
