4.12

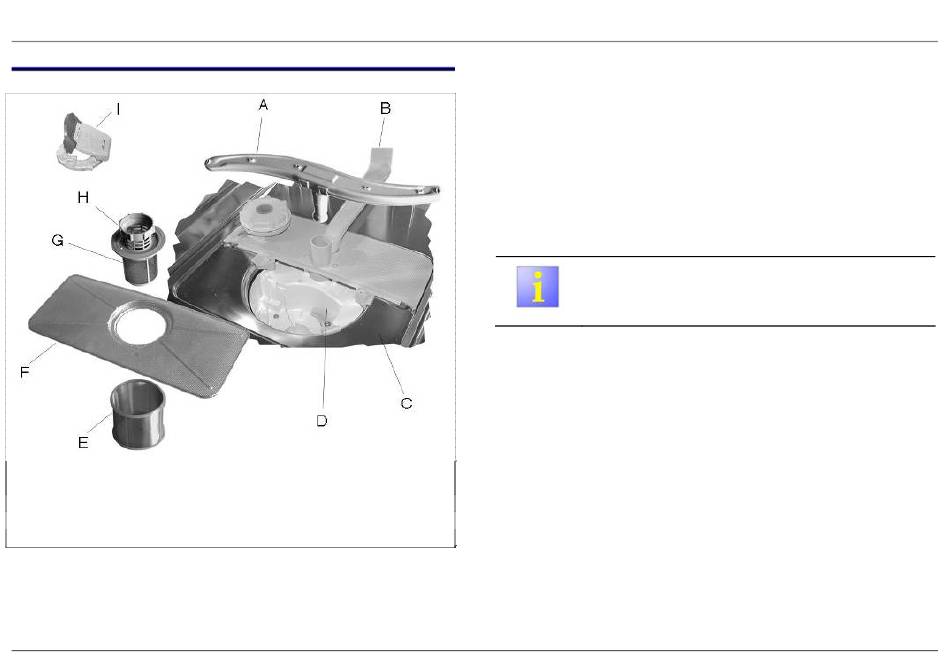

Filter system

A
Lower spray arm
B
Supply pipe to upper spray arm
C
Rinsing tank
D
Pump sump
E
Micro-filter
815_58300000120057_ara_en_d.doc – 25.05.11
F
Surface filter
G
Fine filter
H
Coarse filter
I
Hinged cover (optional)
The filter system consists of threefold filtration:
Coarse filter
Fine filter
Surface filter
The pump sump is covered by the surface filter (F). The surface filter
(F) is attached together with the combined coarse (H) and fine filter
(G) to the base of the pump sump (D) via a bayonet catch.
Blocked spray nozzles
Firmly attach coarse (H) and fine filter (G)
to the pump sump (D)
Seite 20 von 60
