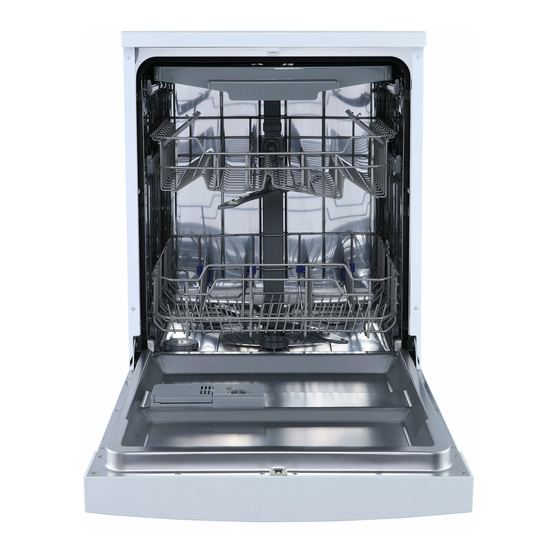

Bosch SRV 43M63 Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

'LVKZDVKHU
HQ
2SHUDWLQJ LQVWUXFWLRQV
Downloaded from DishWasher-Manual.com Manuals

Advertisement

loading

  Summary of Contents for Bosch SRV 43M63

  • Page 1 'LVKZDVKHU 2SHUDWLQJ LQVWUXFWLRQV Downloaded from DishWasher-Manual.com Manuals...
  • Page 2 Downloaded from DishWasher-Manual.com Manuals...
  • Page 3: Table Of Contents

    en Table of contents Safety instructions ....4 Additional options ....14 Delivery .
  • Page 4: Safety Instructions

    ã= Safety instructions Warning Knives and other utensils with sharp points Delivery must be placed in the cutlery basket with the points downwards or horizontally on – Check the packaging and dishwasher immediately for damage caused in the knife shelf *. transit.
  • Page 5: Getting To Know Your Appliance

    Getting to know your appliance Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front. Individual positions are referred to in the text. Control panel ( Main switch 0 Door opener 8 Additional options ** @ Programme end display H Display “Check water supply”...
  • Page 6: Water Softening System

    – Open the door. Water softening system – Hold down the programme button + and switch on the main switch (, To ensure good washing results, the then release both buttons. dishwasher requires soft water, i.e. The display P flashes containing low amounts of lime, otherwise and the buttons # and + light up.
  • Page 7: Special Salt

    Using detergents with salt Special salt $ component If combined detergents with a salt Using special salt component are used, salt can usually be Always refill with special salt immediately omitted up to a water hardness of 21° dH before switching on the appliance. This (37°...
  • Page 8: Rinse Aid

    Setting amount of rinse aid Rinse aid % The rinse aid dispensing rate can be adjusted steplessly. The clear rinse As soon as the rinse-aid refill controller was set to 4 at the factory. indicator X is lit on the fascia, there Do not change the position of the rinse aid is still a rinse-aid reserve of 1–2 rinsing control unless there are streaks (rotate...
  • Page 9: Utensils

    Unloading the dishwasher Utensils To prevent water from dripping off the upper basket onto the utensils in the lower Not suitable basket, it is recommended to empty – Cutlery and utensils made of wood. the appliance from the bottom up. –...
  • Page 10: Cutlery Basket

    Small accessories holder * Heavily soiled utensils (pans) should * depending on model be placed in the bottom basket. The more Light-weight plastic accessories, e.g. cups, powerful spray jet provides a better lids, etc. can be held securely in the small dishwashing result.
  • Page 11: Detergent

    Top basket with side levers Detergent – Pull out the top basket 1" out. – To lower the basket, press in the left You can use tablets as well as powder and then the right or liquid detergents for dishwashers, but lever on the outside of the basket.
  • Page 12: Adding Detergent

    Adding detergent Combination detergent – If the detergent dispenser 9" is still Apart from conventional detergents (Solo), closed, press the lock 1b to open a number of products are offered with the detergent dispenser. additional functions. These products contain not only the detergent but also Pour detergent into the dry detergent rinse-aid and salt replacement substances dispenser 9".
  • Page 13: Overview Of Programmes

    Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia. Type of utensils Type of soiling Programme Possible additional Programme sequence options Prerinse ² Clean 70°...
  • Page 14: Additional Options

    Additional options Washing the dishes Programme data * depending on model Additional options can be set with the The programme data (consumption buttons 8. values) can be found in the summary of instructions. This data refers to normal Ÿ Express Wash/ Speed conditions and the water hardness set value 2.
  • Page 15: Switching Off The Appliance

    Switching off the appliance Terminating the programme (Reset) Short time after the end of the programme: – Open the door. – Open the door. – Switch off the main switch (. – Simultaneously press programme buttons # and 3 – Turn off the tap (not applicable if Aqua- for approx.
  • Page 16: Maintenance And Care

    Filters Maintenance and care The filters 1J keep large foreign objects in the rinsing water away from A regular inspection and maintenance of the pump. These foreign objects may your machine will help to prevent faults. occasionally block the filters. This saves time and prevents problems.
  • Page 17: Spray Arms

    Spray arms Troubleshooting Limescale and contaminants in the rinsing water may block nozzles The majority of faults which could occur in and bearings on the spray arms 12 daily operation can be rectified by the and 1:. user. This ensures that the appliance is –...
  • Page 18: Waste Water Pump

    Waste water pump ... on the appliance Large food remnants in the rinsing water Lower spray arm rotates sluggishly. not retained by the filters may block – Spray arm blocked. the waste water pump. The rinsing water The door is difficult to open. * is then not pumped out and covers –...
  • Page 19: During The Wash Cycle

    – Water is left in the appliance at the end ... on the utensils of the programme. Food residue on the utensils. – Waste water hose – Utensils placed too closely together, is blocked or kinked. utensils basket overfilled. – Waste water pump blocked, –...
  • Page 20: Customer Service

    Dull, discoloured glasses, film cannot be Customer service washed off. – Unsuitable detergent. If the advice given does not resolve your – Glasses not dishwasher-proof. problem, please contact your customer Streaks on glasses and cutlery, glasses service. Contact details can be found on have metallic appearance.
  • Page 21: Installation

    – After installing the appliance, ensure Installation that the plug is easily accessible. – Some models: The dishwasher must be connected The plastic housing on the water correctly, otherwise it will not function connection contains an electric valve, properly. The specifications for the inlet the connecting cables are in the supply and outlet as well as the electrical hose.
  • Page 22: Installation

    Installation Fresh water connection The required installation dimensions can – Connect the fresh-water connection to be found in the installation instructions. the tap according to the installation Level the appliance with the aid of the instructions with the enclosed parts. height-adjustable feet.
  • Page 23: Removing The Appliance

    Removing the appliance Waste disposal Also observe the sequence of worksteps here. Both the packaging of new appliances and – Disconnect the appliance from the the old appliances themselves contain power supply. valuable raw materials and recyclable materials. – Turn off the water supply. Please dispose of the individual parts –...
  • Page 24 Downloaded from DishWasher-Manual.com Manuals...
  • Page 25 &KLOGSURRI ORFN GRRU ORFN  $FWLYDWH WKH FKLOGSURRI ORFN $OZD\V FORVH WKH DSSOLDQFH GRRU FRPSOHWHO\  2SHQ WKH GRRU ZLWK DFWLYDWHG ZKHQ \RX OHDYH WKH DSSOLDQFH FKLOGSURRI ORFN 7KLV LV WKH RQO\ ZD\ \RX FDQ SURWHFW \RXU  'HDFWLYDWH FKLOGSURRI ORFN FKLOGUHQ IURP SRWHQWLDO GDQJHUV %DNLQJ VKHHW VSUD\ KHDG /DUJH VKHHWV RU JULOOHV DQG SODWHV ZKLFK KDYH D GLDPHWHU JUHDWHU WKDQ  FP JRXUPHW...
  • Page 26 $48$6723 JXDUDQWHH GRHV QRW DSSO\ WR DSSOLDQFHV ZLWKRXW $TXD6WRS ,Q DGGLWLRQ WR ZDUUDQW\ FODLPV DJDLQVW WKH VHOOHU EDVHG RQ WKH SXUFKDVH FRQWUDFW DQG LQ DGGLWLRQ WR RXU DSSOLDQFH ZDUUDQW\ ZH ZLOO SD\ GDPDJHV XQGHU WKH IROORZLQJ FRQGLWLRQV ,I RXU $TXD6WRS V\VWHP LV GHIHFWLYH DQG FDXVHV ZDWHU GDPDJH ZH ZLOO PDNH JRRG WKH GDPDJH IRU SULYDWH XVHUV 7R HQVXUH ZDWHU GDPDJH SURWHFWLRQ WKH DSSOLDQFH PXVW EH FRQQHFWHG WR WKH SRZHU VXSSO\...
