Removing and installing hinge

6.7.1
Removal
Unscrew outside door, base panel, angle strip and side panels.
Detach tension cord (E) from hinge lever (B)
Unscrew hinge lever (B) from the inner door
Disengage bearing bush (C) and remove hinge lever (B)
Unscrew hinge plate (A) from the container frame
Unscrew fastening screw from the hinge plate towards the base
pan, as well as the adjusting screw if fitted
Unscrew hinge plate (A) from the frame
Pull up the hinge plate (A) and remove
Remove the spring clamp (D);
Two-piece hinge bearing bush:
Open the bearing bush (C) by disengaging the spacer (G) with
a screwdriver (see sketch)
One-piece hinge bearing bush:
Open the bearing bush (C) by bending up the clips (H) with
a screwdriver. When the bearing bush (C) is removed, it must
be renewed.

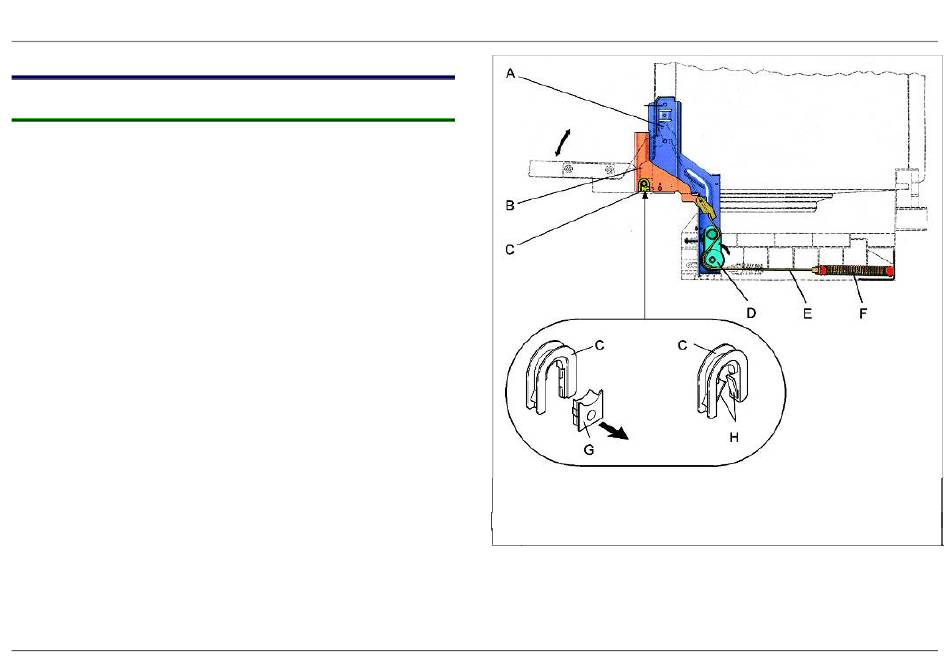

815_58300000120057_ara_en_d.doc – 25.05.11
A
Hinge plate
B
Hinge lever
Bearing bush
C
D
Spring clamp
E
Tension cord
F
Tension spring
Spacer
G
H
Clips
