1.1

Axial flow sensor

815_58300000120057_ara_en_d.doc – 25.05.11
6.4.3

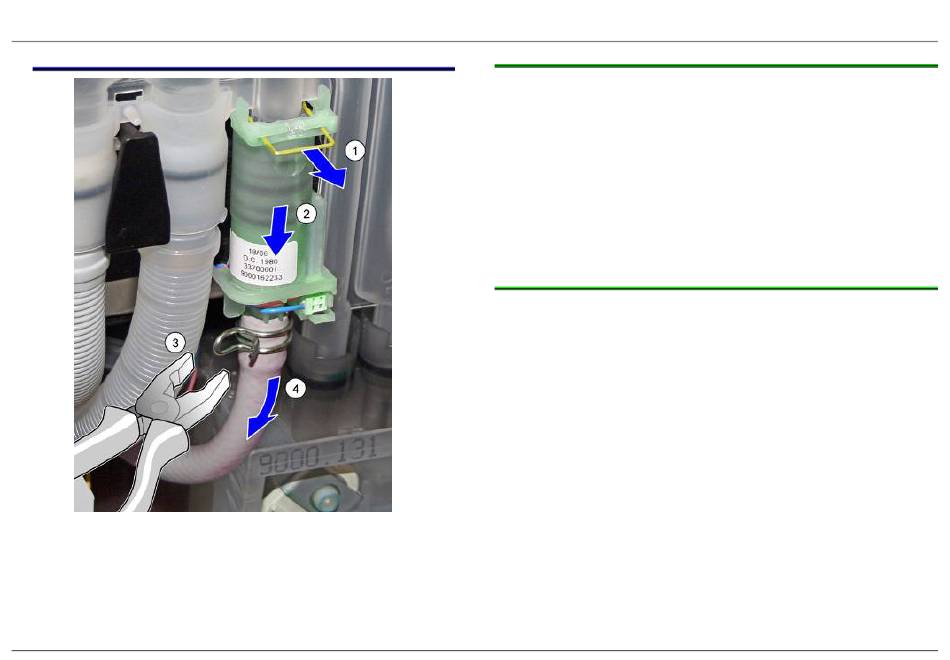

Removal
Remove the left side wall
Remove securing clip (1)
Pull the flow sensor (2) from the water inlet
Loosen the hose clip (3)
Remove supply hose (4).
Remove connector plug from reed switch.
6.4.4
Installation
Connect the supply hose (4) to the flow sensor (2)
Attach the hose clip (3)
Connect the reed switch connector plug
Attach the flow sensor (2) to the water inlet and secure it with
the securing clip (1)
Install the left side wall
Seite 34 von 60
