Some of the fields are fixed and cannot be altered from this screen as they are used to report basic
settings of the system.
Note: Do not alter the Host Port Configuration for the serial port connected to the Pakscan
Ethernet module. If this is changed communication between the PS600 and PS100
will be disrupted. The correct parameters must be re-entered from the local keypad
on the front of the master station and their values will depend on the master station
assembly and which port is connected to the Ethernet module.
The default port settings are -
Protocol:
Port Use:
Baud Rate:
Parity:
Standby:
Port Alarms: Separate

12.5.3 Network Diagnostics

The Network Diagnostics function shows the performance and configuration of the Pakscan loop.
Much of the data shown is also available from the screen of the master station itself as described in
section 8.7.4.

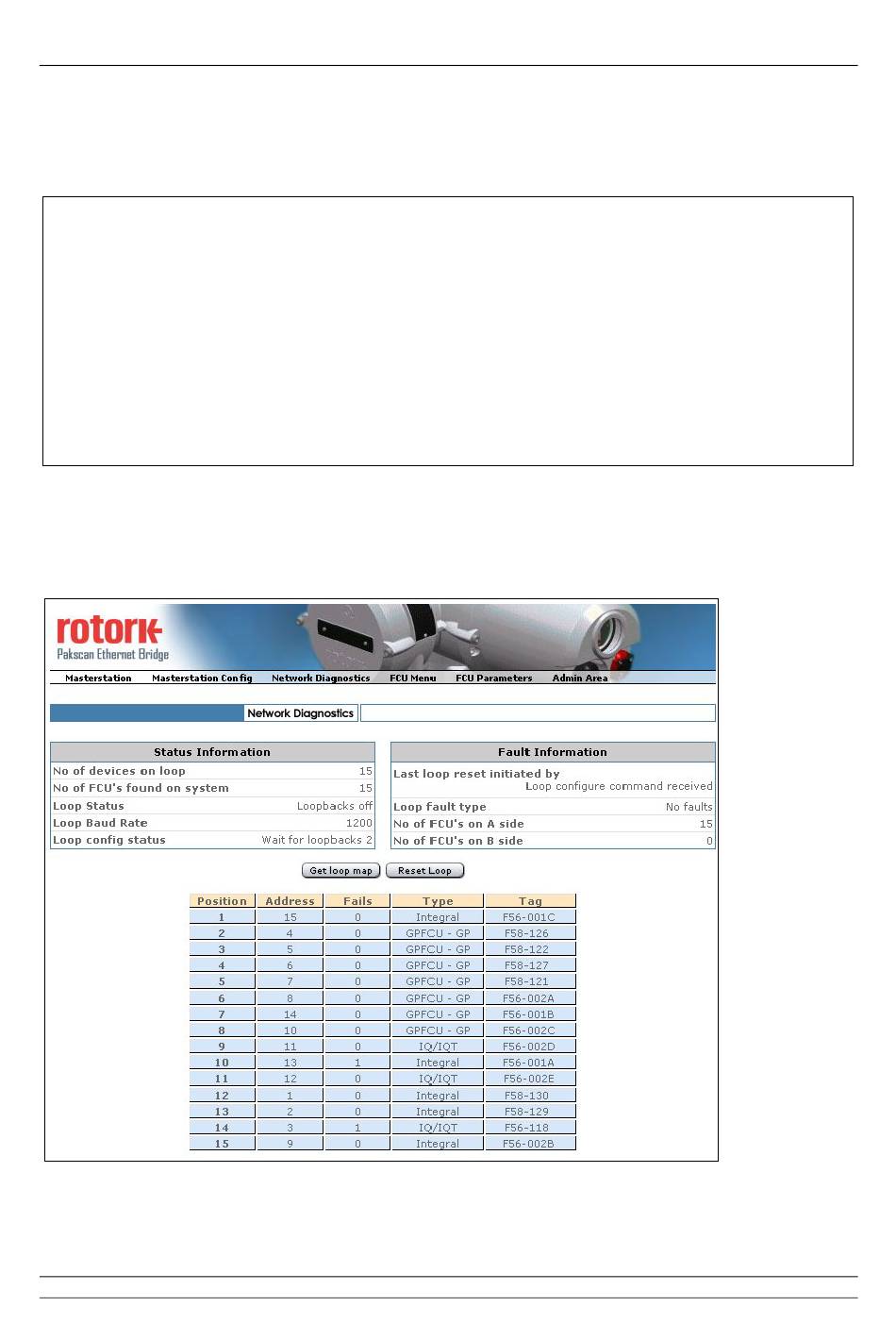

Fig 32: Network Diagnostics screen
99 of 132
Generic Modbus
Host
19200
None
Standby Passive (Applicable to Hot Standby master station)
Publication S177E V2.0 Issue 12/04
Ethernet Connection
