rotork Pakscan IIE System Manual page 82

Pakscan IIE System Manual
The key rotates through 4 positions and is only removable in the Auto position.
Select Auto for normal operation
Select position B before removing master station A
Select position A before removing master station B
There are no electronic components on the PS300 module and its function is solely to allow a unit to
be removed for repair.
B
A
A
U
T
O
Auto position
Key removable
in this position

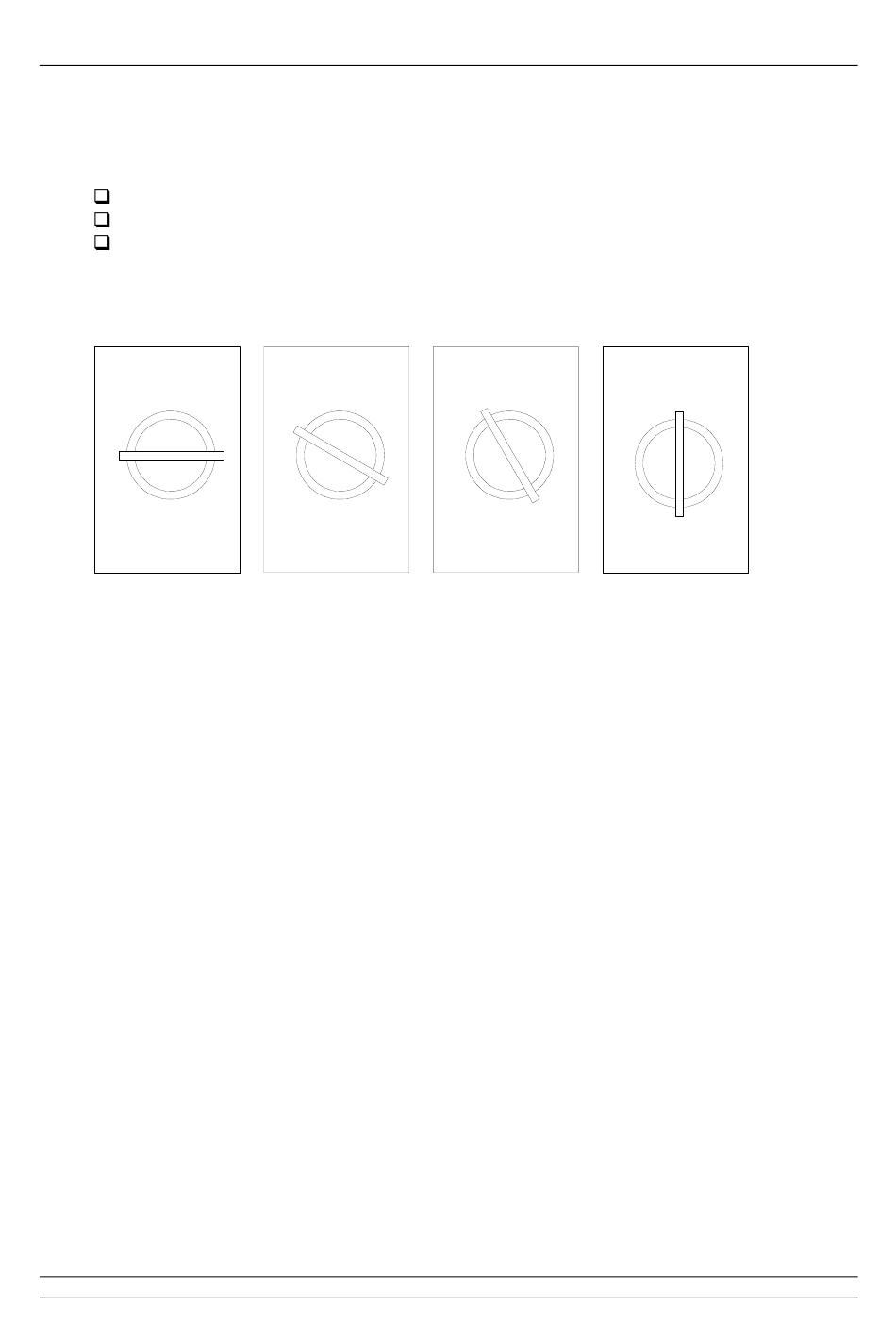

Fig 15: PS300 Keyswitch positions
After a master station is replaced return the key to the normal position. It may be necessary to reset
the loop in order to completely restore correct operation.
82 of 132
B
A
A
U
T
O
Intermediate
position
Key not removable Key not removable
Publication S177E V2.0 Issue 03/05
B
A
A
U
T
O
M/S A
selected
Key not removable
B
A
A
U
T
O
M/S B
selected
