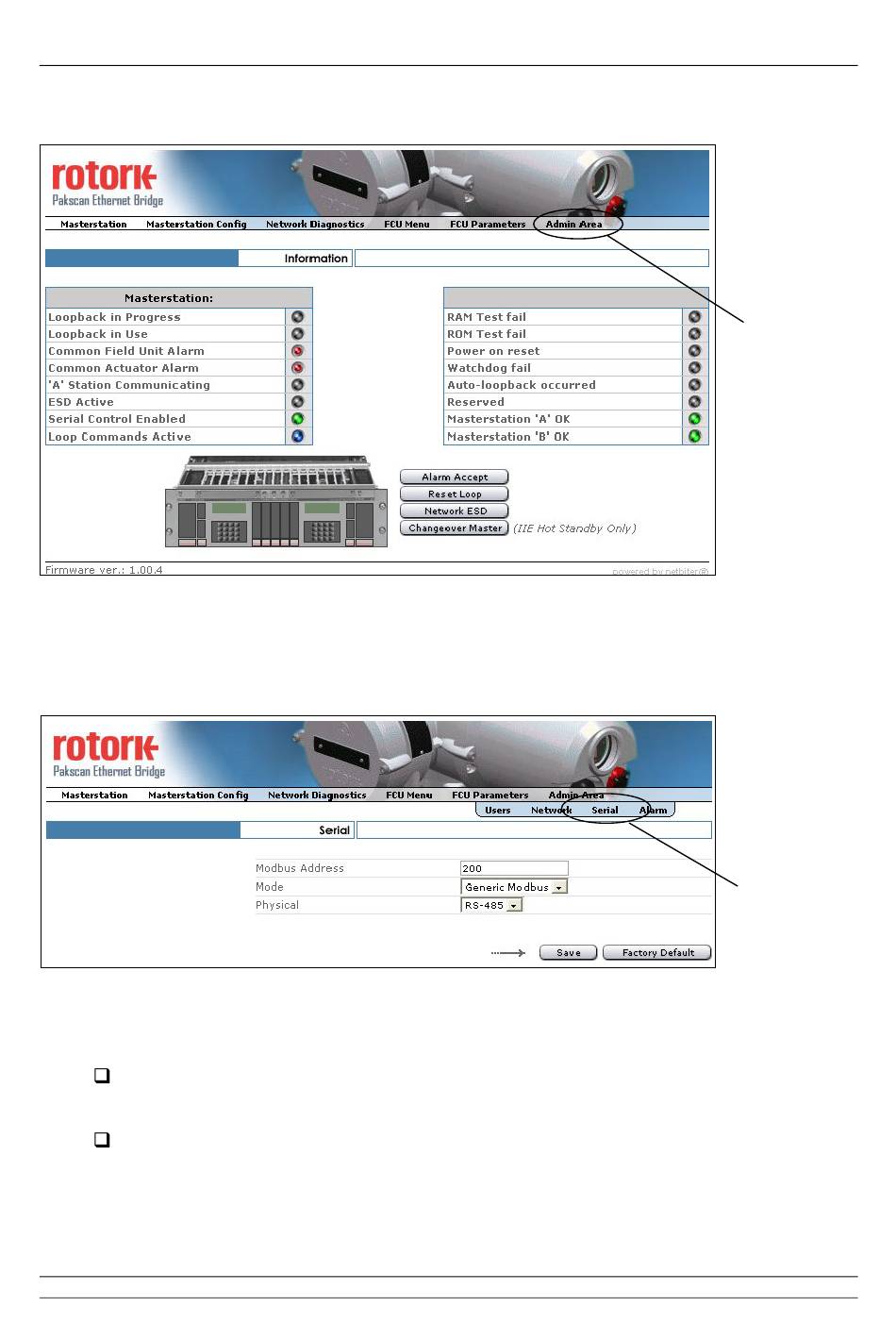

Fig 24: Web Server opening screen

12.4.1 Setting the Serial Connection Fields

Click on the Admin Area then select Serial from the menu that appears below Admin Area.
Fig 25: Serial Comms to PS100 setup screen
The serial communication screen allows the settings between the bridge and the PS100 module to be
set.
Modbus address:
Mode:
92 of 132
The address must match the Modbus address set for the master
station under section 8.8.5. The default is address 200.
The mode may be Generic Modbus or Yokogawa. For the web
browser to operate and show master station and field unit data this
must be set to Generic Modbus.
