12.5.4.1 Field Unit Status and Control

The FCU Control button brings up an additional screen that shows the current status of the actuator at
that address.

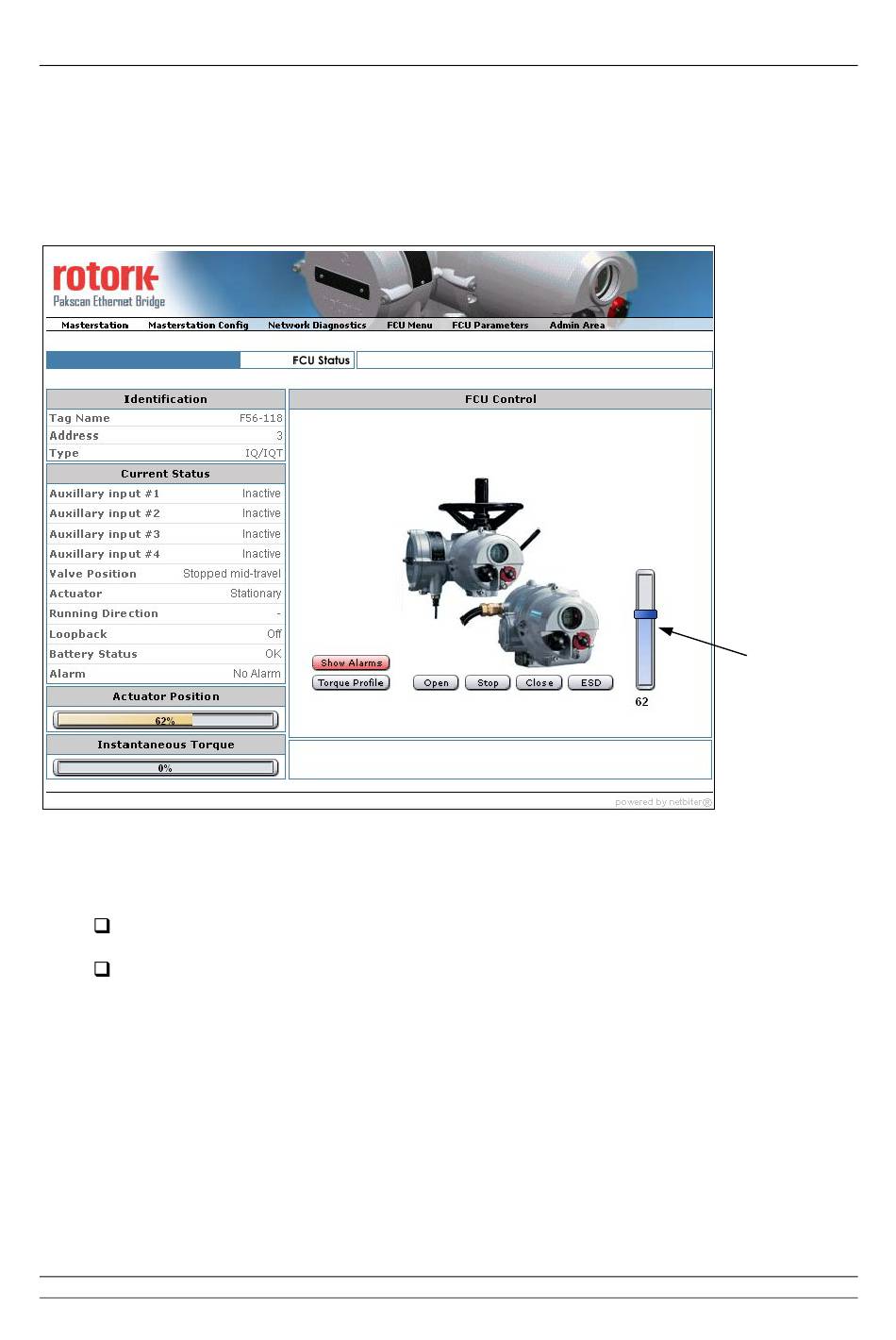

Fig 34: FCU Status and Control screen
The basic status of the actuator is shown on the left and the picture on the right shows the type of
actuator.
The valve may be opened or closed, or set to an intermediate position using the buttons or
slider control.
The alarms present, and in the case of IQ actuators the torque profile, can be seen by
clicking the appropriate button.
101 of 132 Publication S177E V2.0 Issue 12/04
Ethernet Connection
Slider
