Configure the Master
4 Configure the Master
4.1 Importing the XDD File
To configure a POWERLINK Master, the configuration tool
needs an XDD file for each type of slave on the network.
The XDD file is a text file containing the necessary
communications setup data for a slave. Download the XDD
file for the FC Series frequency converters at http://
www.danfoss.com/BusinessAreas/DrivesSolutions/.
15-61 Option SW Version
File
1.x
FC 301: 0x0200008D_FC301_01.xdd
FC 302: 0x0200008D_FC302_01.xdd
Table 4.1 POWERLINK SW Version XDD File
The following steps show how to add a new device to the
Automation Studio Tool. For tools from other vendors,
consult their relevant manuals.
1.
In the Automation Studio, select the menu [Tools]
and [Import Fieldbus Device].

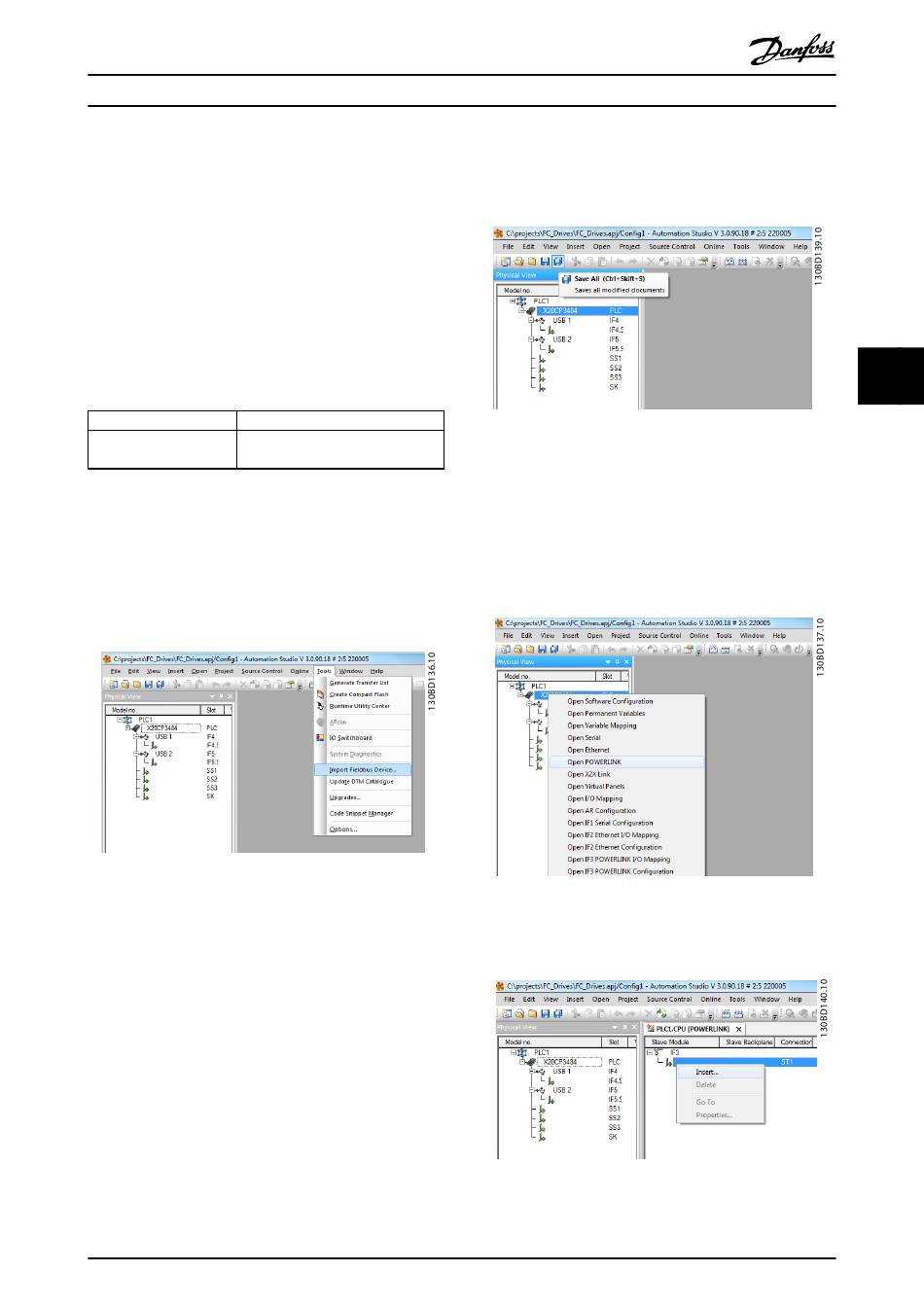

Illustration 4.1 Automation Studio
2.
Select the XDD file and the Automation studio,
imports it to its library. Use the [Save All] menu
or the multiple floppy disc icon to save the new
info.
MCA 123 POWERLINK Operating Instructions
Illustration 4.2 Selecting the XDD File
4.2 Setting Up the Master
Select the POWERLINK I/O master to open the POWERLINK
interface in the Automation Studio Master.
Illustration 4.3 Open POWERLINK
Illustration 4.4 Physical View
®
MG92C102 - VLT
is a registered Danfoss trademark
1.
Right click and select [Open POWERLINK].
2.
Right click the network icon, and select [Insert].
