Configuration
Setting the PROFIBUS Address with Set Station Address
Command
1. Switch off the power supply.
2. Set the DIP switch to 126 or 127 (factory switch
setting).
3. Set the address via the "Set Station Address"
command. Use the "Set Station Address"
command to lock the programmed address and
to change the address. Unlock the address setting
by changing the 9-18 Node Address or the address
switch, followed by a power cycle. A new address
is effective immediately after the "Set Station
Address" command.

3.2 Configure the Master

3.2.1 GSD File

To configure a PROFIBUS Master, the configuration tool
needs a GSD file for each type of follower on the network.
The GSD file is a PROFIBUS DP standard text file containing
the necessary communications set-up data for a follower.
Download the GSD file for the FC 102, FC 202 and FC
301/302 frequency converters at www.danfoss.com/Busines-
sAreas/DrivesSolutions/.
PROFIBUS SW version
(15-61 Option SW Version)
1.x
2.x
FCD 302
Table 3.2 GSD File
The example below show the procedure of configuring a
PROFIBUS Master for FC 301/302, but the procedure is also
valid for the FCD 302.
1. Import the GSD file in the configuration tool.
2. Import the GSD file to the Simatic Manager
software tool. Import a GSD file once only for
each frequency converter series, following the
initial installation of the software tool. See
Illustration 3.3.
3. Use the browser for the GSD file, install all files,
and import both a GSD file and a bitmap for the
device into the hardware catalogue. See
Illustration 3.4 and Illustration 3.5.
MG37G102
Programming Guide

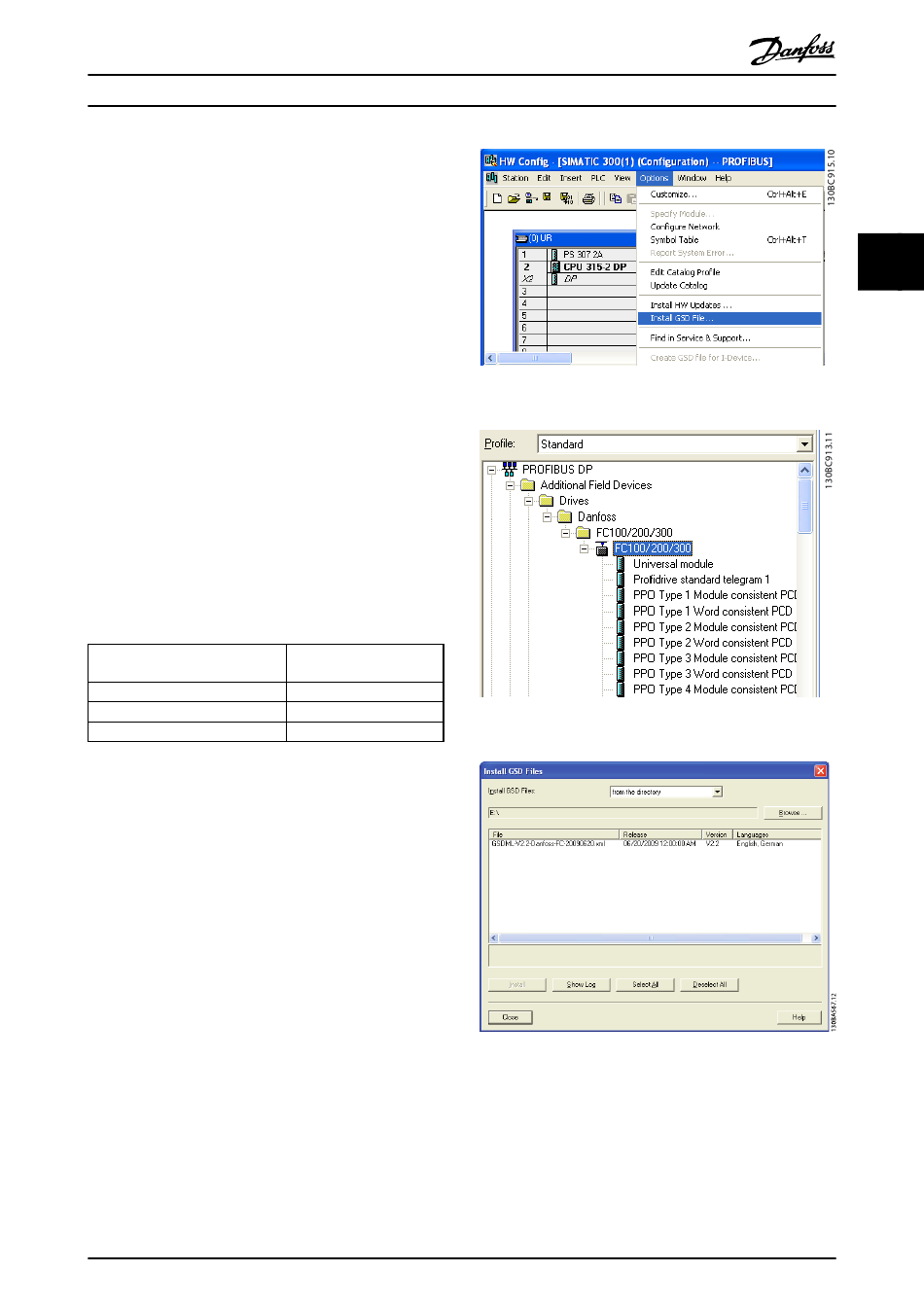

Illustration 3.3 Install GSD File
GSD file
da01040A.GSD
Illustration 3.4 Import a GSD File and a Bitmap
da02040A.GSD
da01040B.GSD
Illustration 3.5 Add a new GSD File
4.
Danfoss A/S © Rev. 05/2014 All rights reserved.
Import and access the FC 301/302 GSD file via
the path in the hardware catalogue, see
Illustration 3.6.
3 3
