B C
ASIC ONFIGURATION
Web – Click System, File, Firmware. Enter the IP address of the TFTP
server, enter the file name of the software to download, select a file on the
switch to overwrite or specify a new file name, then click Transfer from
Server. To start the new firmware, reboot the system via the System/Reset
menu.

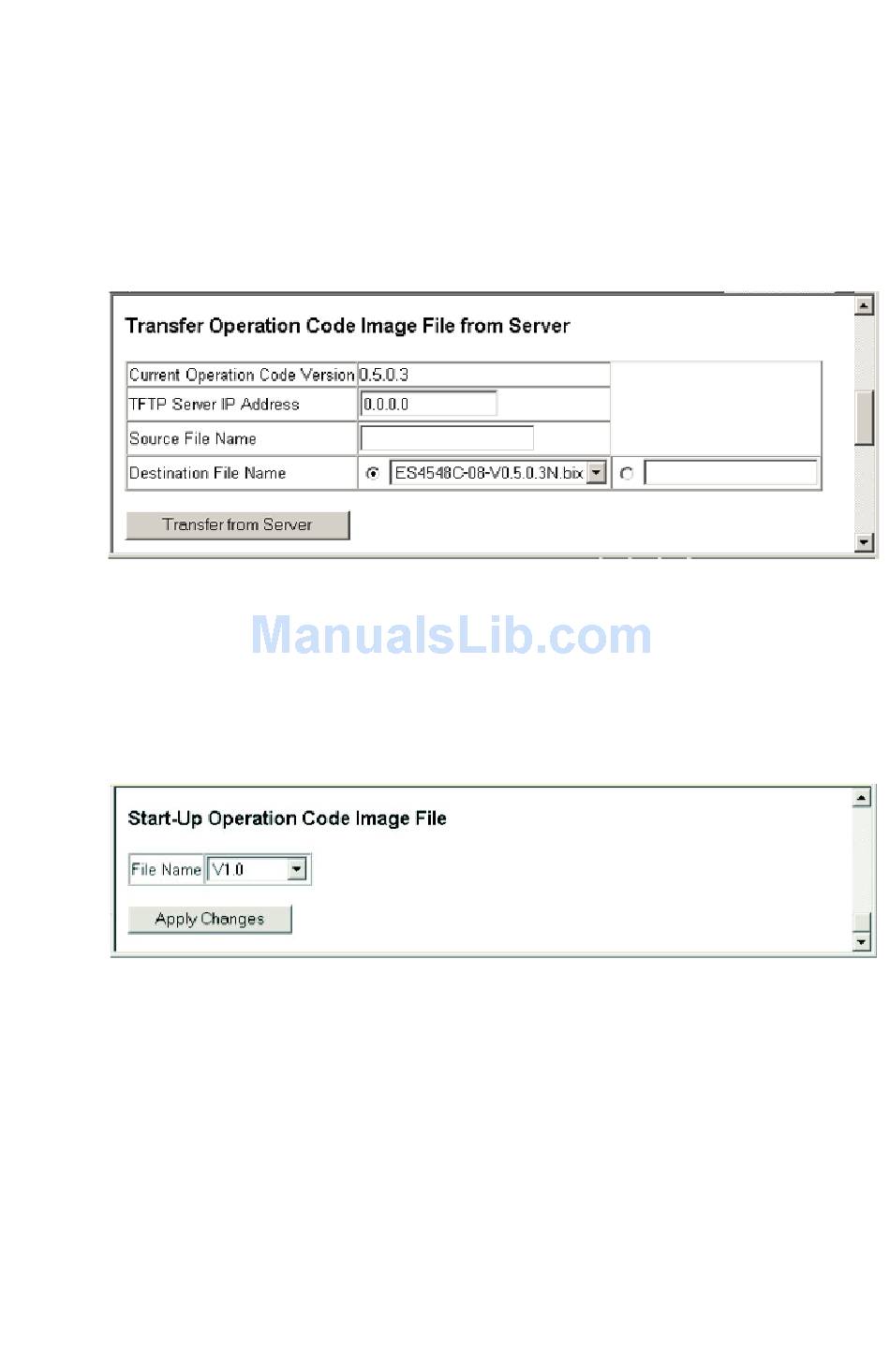

Figure 3-8. Operation Code Image File Transfer

If you download to a new destination file, then select the file from the
drop-down box for the operation code used at startup, and click Apply
Changes. To start the new firmware, reboot the system via the System/
Reset menu.

Figure 3-9. Select Start-Up Operation File

3-23
