that would make it return to a discarding state; otherwise, temporary
data loops might result.
• Root Hold Time – The interval (in seconds) during which no more
than two bridge configuration protocol data units shall be transmitted
by this node.
• Max hops – The max number of hop counts for the MST region.
• Remaining hops – The remaining number of hop counts for the MST
instance.
• Transmission limit – The minimum interval between the
transmission of consecutive RSTP/MSTP BPDUs.
• Path Cost Method – The path cost is used to determine the best path
between devices. The path cost method is used to determine the range
of values that can be assigned to each interface.

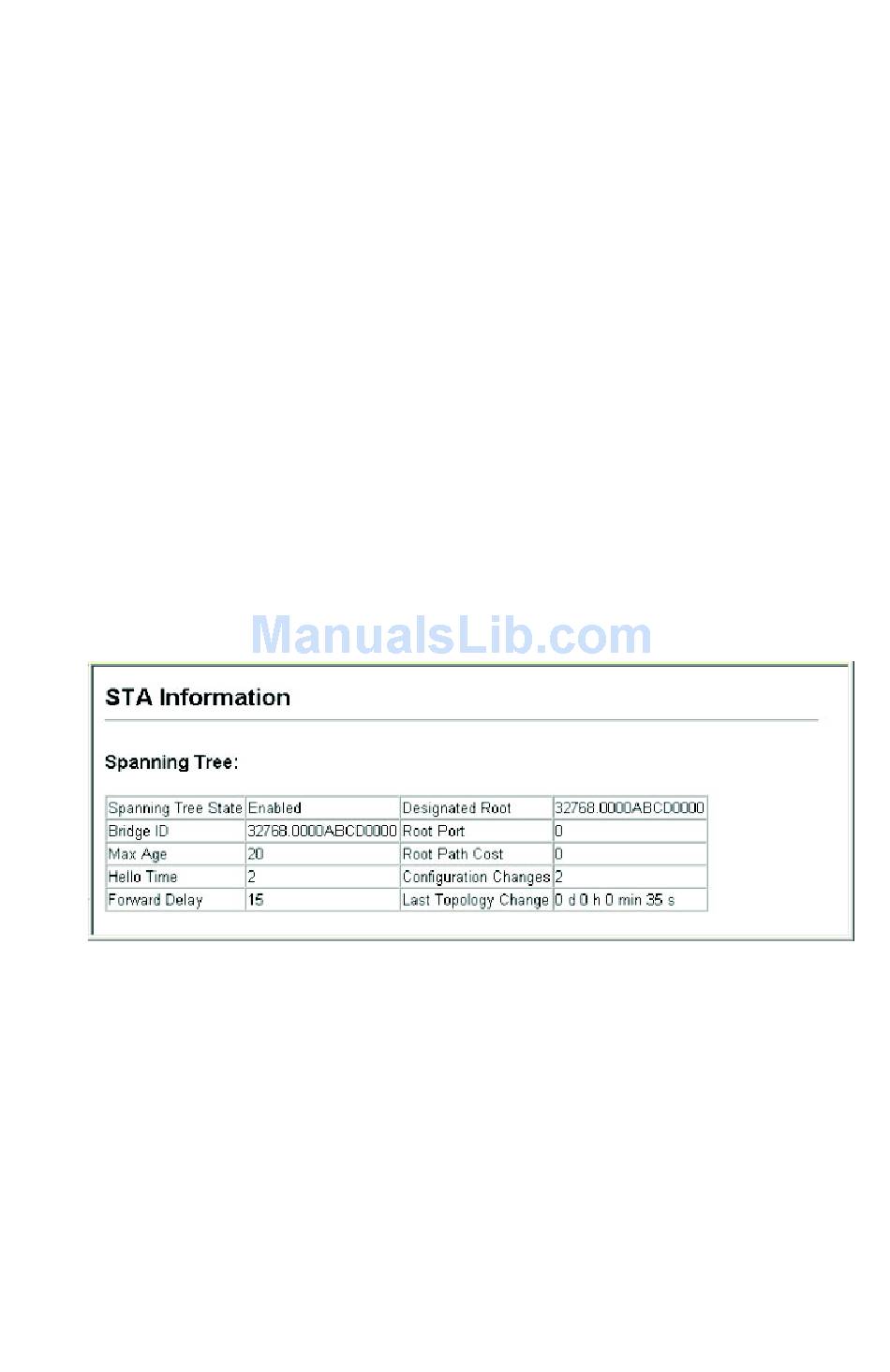

Web – Click Spanning Tree, STA, Information.

Figure 3-52. Displaying the Spanning Tree Algorithm
