• When an ACL is bound to an interface as an egress filter, all entries in
the ACL must be deny rules. Otherwise, the bind operation will fail.
• The switch does not support the explicit "deny any any" rule for the
egress IP ACL or the egress MAC ACLs. If these rules are included in
ACL, and you attempt to bind the ACL to an interface for egress
checking, the bind operation will fail.
Command Attributes
• Port – Fixed port or SFP module. (Range: 1-24)
• IP – Specifies the IP ACL to bind to a port.
• MAC – Specifies the MAC ACL to bind to a port.
• IN – ACL for ingress packets.
• OUT – ACL for egress packets.
• ACL Name – Name of the ACL.

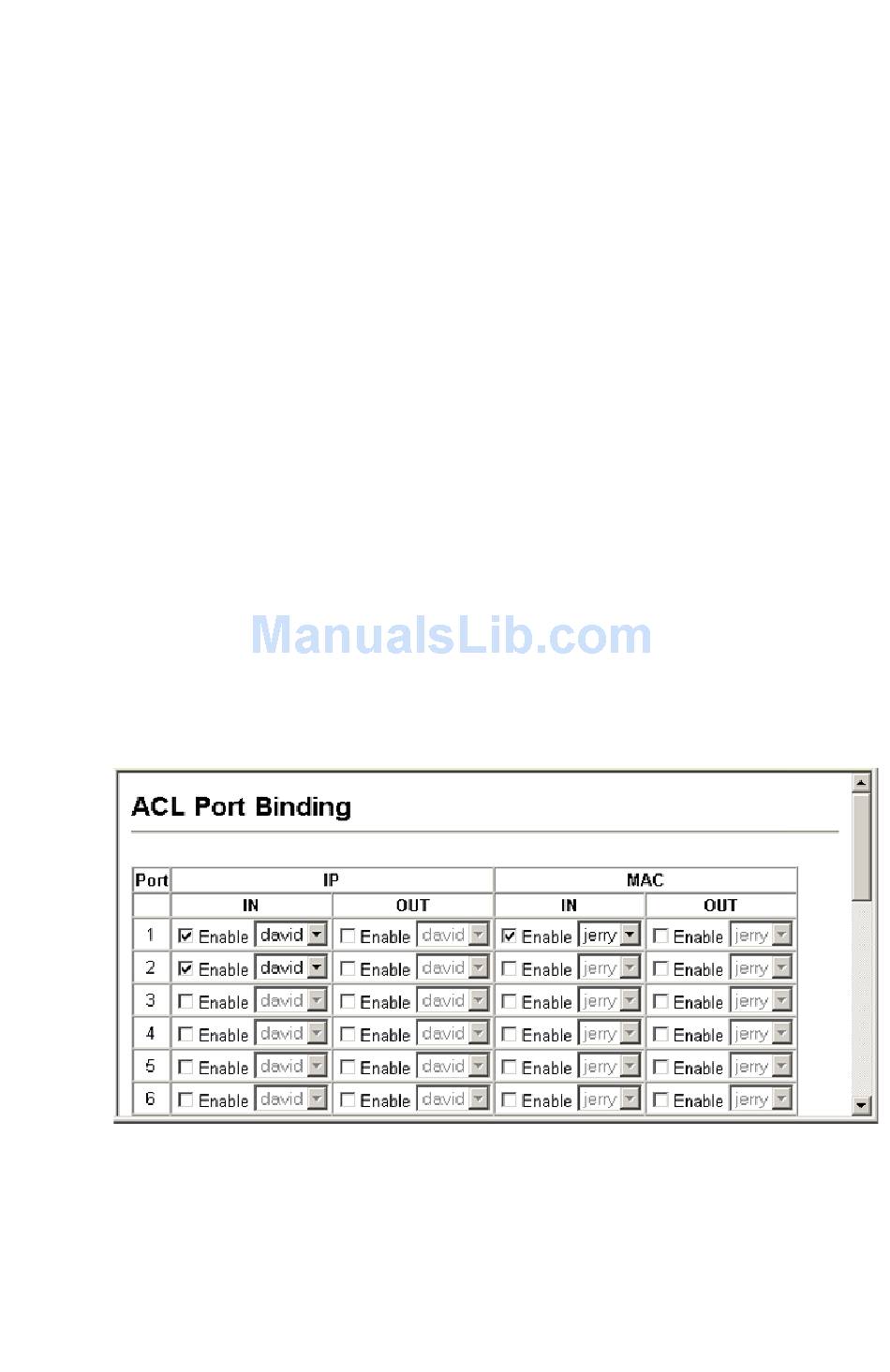

Web – Click Security, ACL, Port Binding. Mark the Enable field for the
port you want to bind to an ACL for ingress or egress traffic, select the
required ACL from the drop-down list, then click Apply.

Figure 3-34. Mapping ACLs to Port Ingress/Egress Queues
