Quick Guide
1
2
U
V W
-DC +DC
2
3

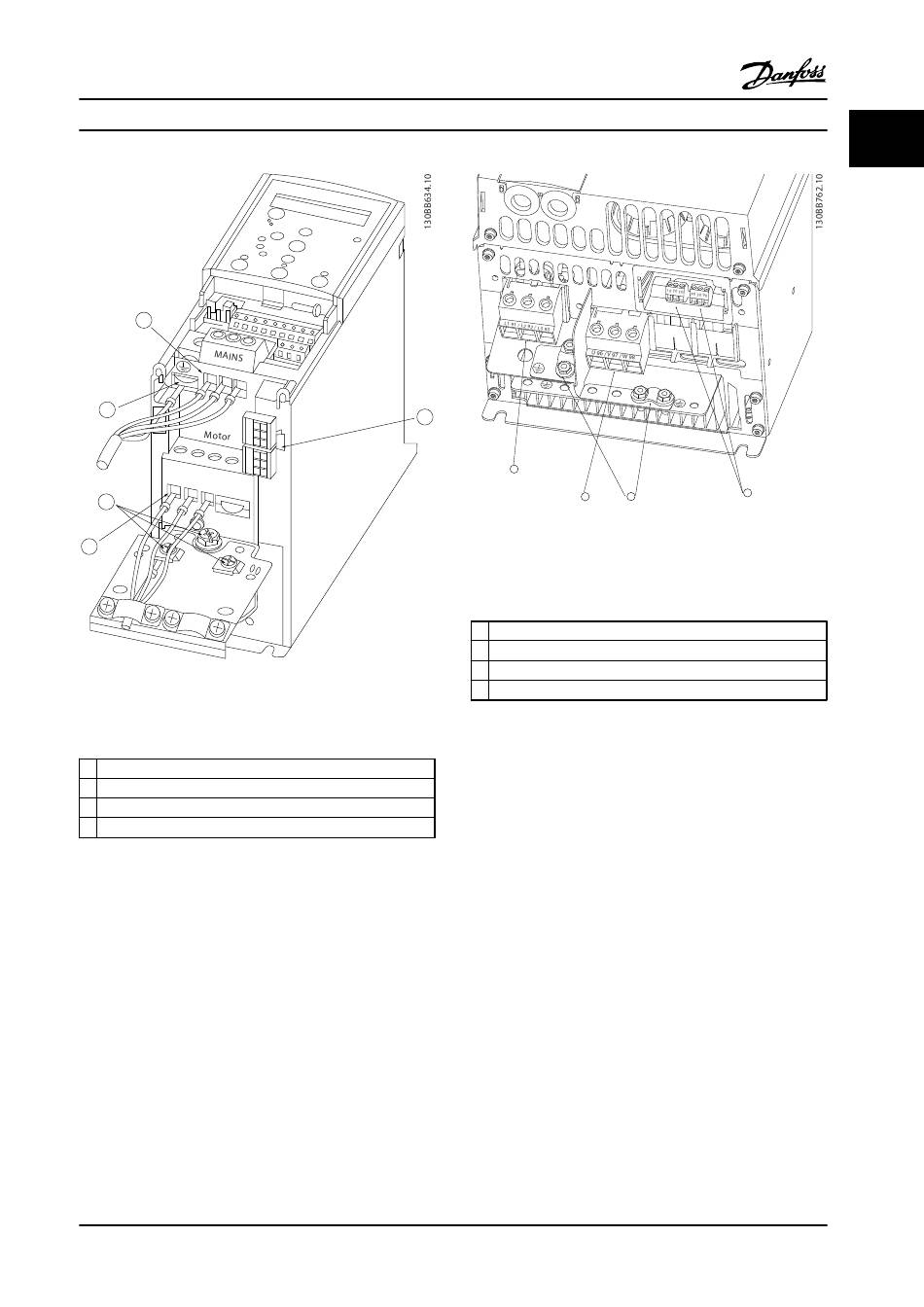

Figure 1.3 H1-H5 Frame
IP20 200–240 V 0.34–15 hp [0.25–11 kW] and IP20 380–480 V
0.5–30 hp [0.37–22 kW].
1 Line
2 Ground
3 Motor
4 Relays
Table 1.10 Legend to Figure 1.3
MG18A522
Quick Guide
4
1
Figure 1.4 H6 Frame
IP20 380–480 V 40–60 hp [30–45 kW]
IP20 200–240 V 20–25 hp [15–18.5 kW]
IP20 525–600 V 30–40 hp [22–30 kW]
1 Line
2 Motor
3 Ground
4 Relays
Table 1.11 Legend to Figure 1.4
