UG-003
Evaluation Board User Guide
EVALUATION BOARD SCHEMATICS AND ARTWORK

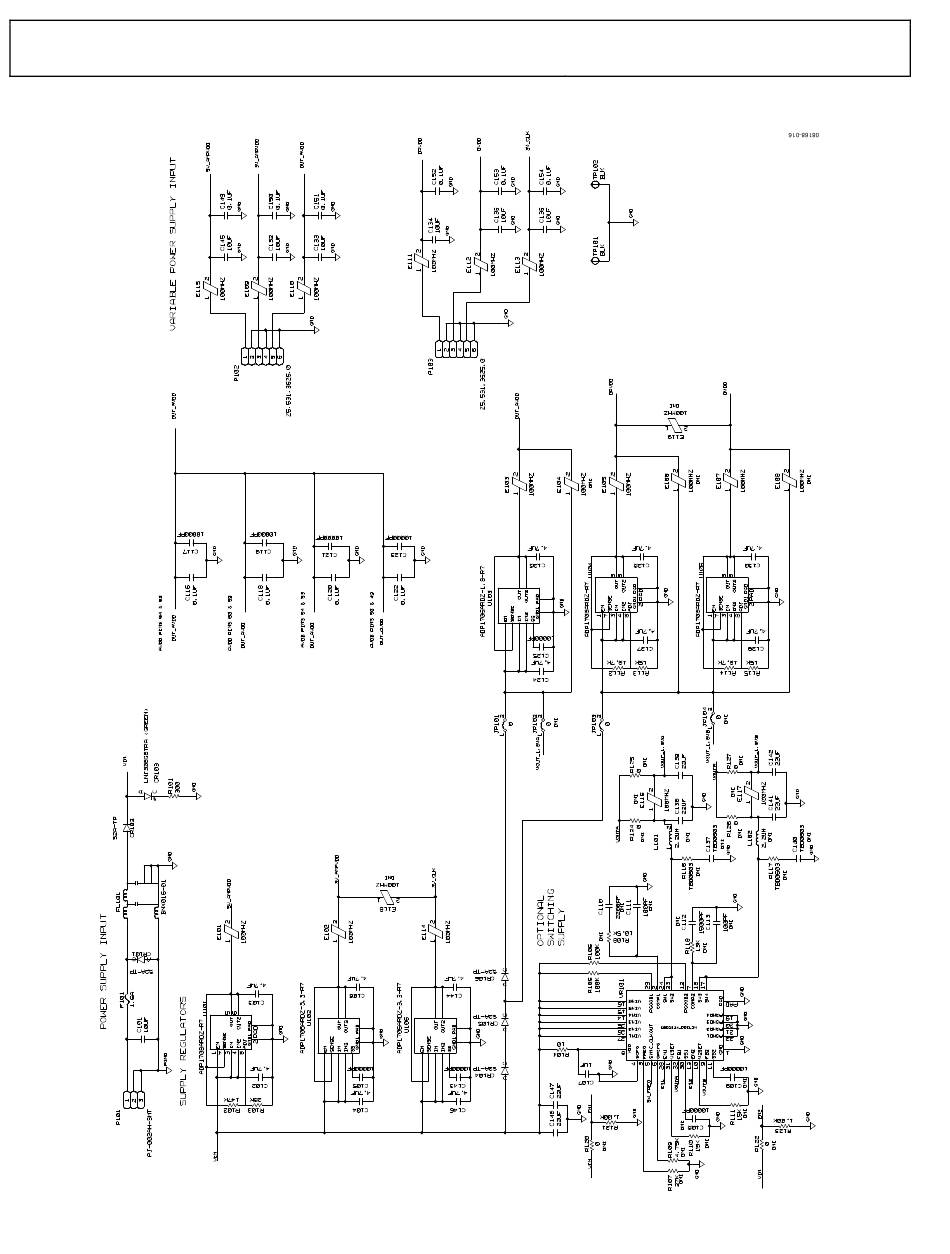

Figure 17. Board Power Input and Supply Circuits
Rev. A | Page 12 of 40
