Chapter 3 : OPERATING MODE

3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE

™
Your NATIX is shipped with a WINDOWS 95 or later compatible software. This software allows you to control and
make adjustments by a simple mouse click.
3-1-1. SOFTWARE INSTALLATION
Turn your computer ON and wait for Windows to completely start.
Insert the disk into the floppy drive.
In the Windows START menu, click on RUN.
Choose the disk drive and click on setup.exe (ex: A:\setup.exe if disk 3.5" is drive A).
Follow the Windows installation instructions.
3-1-2. COMMUNICATION SETUP
• CASE OF RS-232 PORT:
Connect the RS-232 cable between the NATIX
indicating in the section 2-2-1.
Then only power ON all of the devices.
Click on the program files iX8022 in Start > program >ANALOGWAY > iX8022 to run the software.
Click on Controls menu and select RS232/LAN setup, then:
- With the Controls menu of the software, select RS232/LAN setup, then select the COM port number
corresponding to the connection of the NATIX
PAGE 16
If the communication is OK, the message
"Device connected" is displayed.
™
and the control device according to your installation, as
™
device.
NATIX™

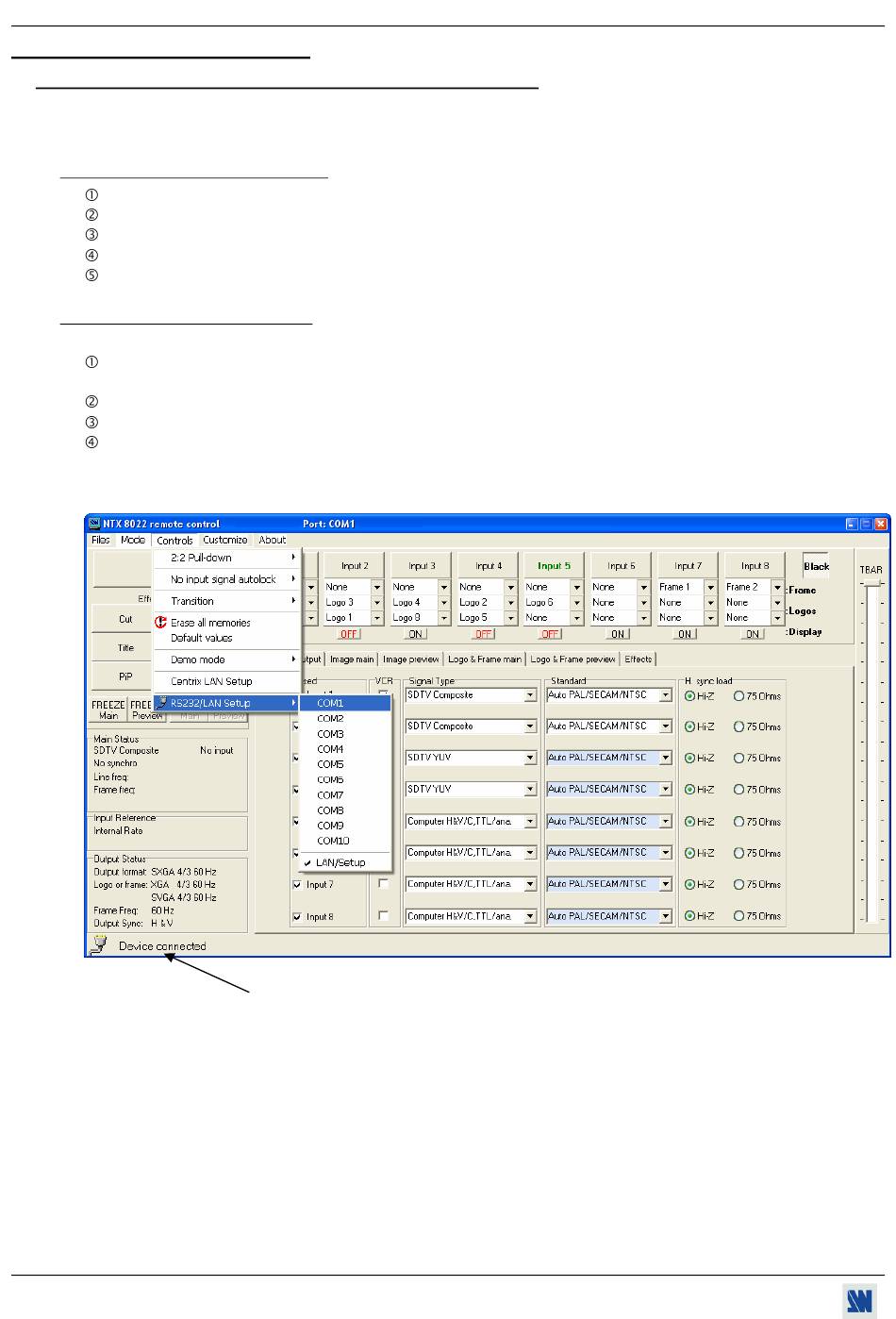

Figure 13
