Analog way Smart Quad Quick Start Manual

QUICK START GUIDE
Analog Way
Thank you for choosing
and use your powerful Hi-Resolution Mixer Switcher within minutes. Discover the
and intuitive interface while configuring your first show, and unleash your creativity for a new experience in show and
event management by Analog
What's in the box
1 x Smart Quad (SQD200)
1 x AC Power cable
2 x DVI-I male to HD15 female and DVI-D female breakout cable
1 x HD15 to 5 BNC cable
1 x Ethernet cross cable (for device update)
1 x DB9 to 4 BNC cable + mini-Din 4
1 x Set of 3 audio 10-pin screw terminals
4 x M4x12mm screws
1 x RCS - Remote Control Software (PC only) *
1 x Quick Start guide (PDF version) *
1 x User Manual (PDF version) *
* Download on our website:
Quick install and setup
Key points:
• Red led: Source is on Main
• Blinking button: Source selected for modification
• dSK function is available
• BlACK button allows to remove layer (Clear function)
Smart Quad. By following these simple steps, you should be able to setup
and the
Way.
www.analogway.com

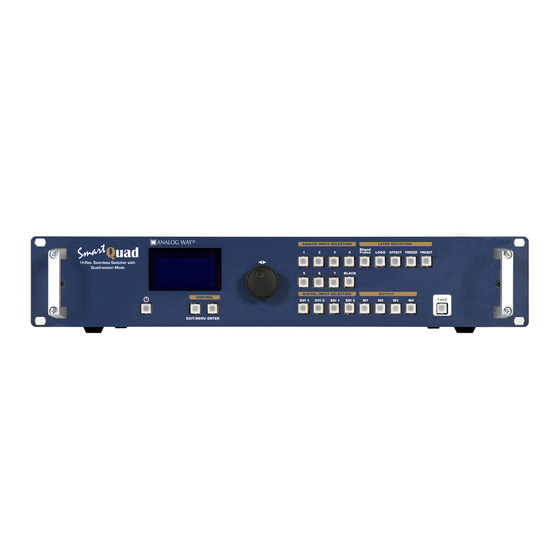

Smart Quad - Ref. SQD200
Smart Quad
WARNING !
If required, front handles of the device can be dismantled,
but with caution.
The original screws removed must not be reintroduced to
their location without handles in place.
Substantial damages can occur, including risk of elec-
tric shock from the mains voltage.
Only M4x12mm screws can be used.
(They are supplied with the unit)
Getting started:
1. Observe all safety precautions. Rackmount chassis
(please refer to user's manual) or install in «table
top» configuration.
2. Connect all inputs (please refer to user's manual:
Input specification).
3. Power on.
4. Perform factory reset:
• Press the exIt/Menu button, from the Home
Menu
• Select [Control] > navigate in the Menu by
rotating the corresponding knob
• Press the enteR button to enter the control
sub-menu
• Select [default Values] and press enteR
button. this operation should take approximately
30 seconds.
IMPORTANT: simply selecting a menu item will not
set it to that value. Be sure to press the ENTER button
when parametering the menu items.
extensive capabilities
